HU2E687M35040HA datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> HU2E687M35040HA

HU2E687M35040HA: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 680uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size33KB，1 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric View All

HU2E687M35040HA Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 680uF, THROUGH HOLE MOUNT, RADIAL LEADED

HU2E687M35040HA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2008481018
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	680 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	1.236932 mA
Manufacturer's serial number	HU
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BOX
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	250 V
ripple current	2180 mA
surface mount	NO
Delta tangent	0.15
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

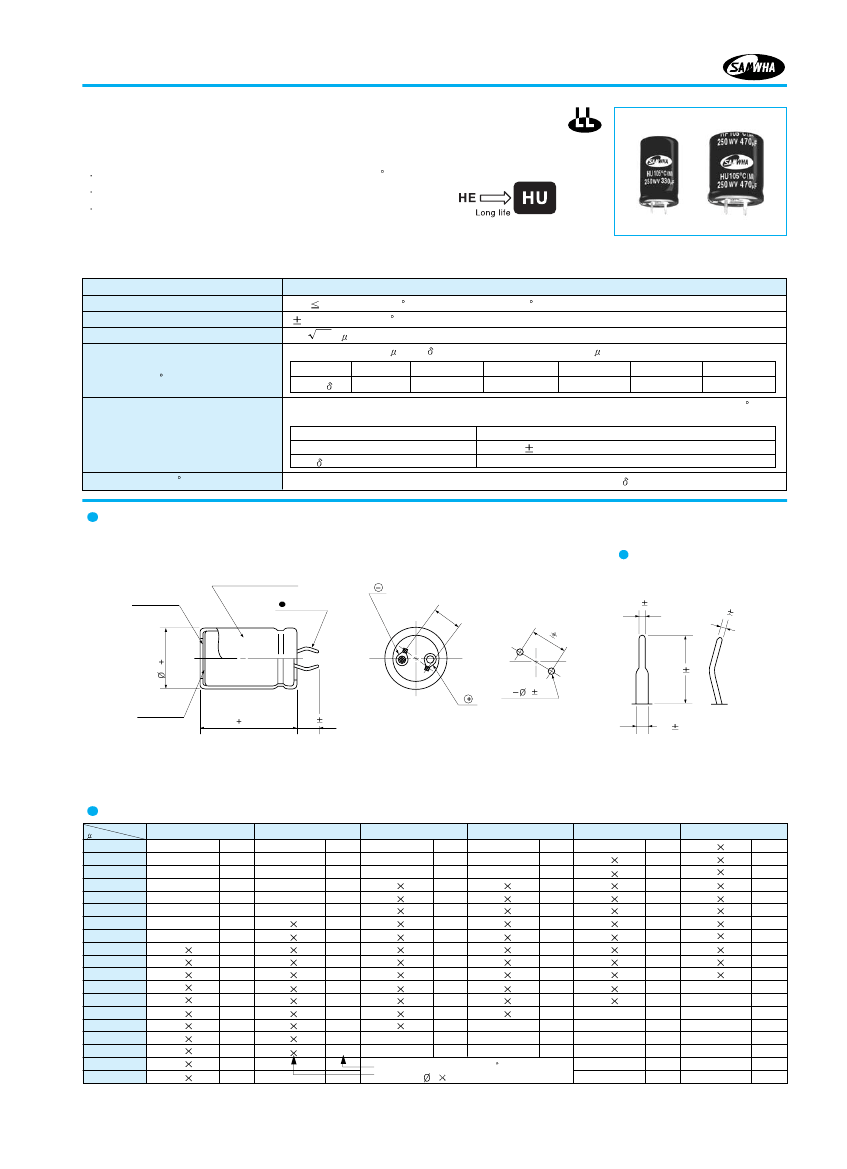

LARGE ALUMINUM ELECTROLYTIC CAPACITORS

Snap-in Terminal Type, Long Life

Series

Long life guaranteed for 5000 hours load life at 105 C

Voltage range of 200~450V

Suited for use in high reliability equipment

Long Life

Item

Operating temperature range

Capacitance tolerance

Leakage current max.

Dissipation factor max.

(at 120Hz, 20 C)

Characteristics

WV 400 : -40 ~ +105 C, WV = 450 : -25 ~ +105 C

20% at 120Hz, 20 C

I=3 CV ( A) (after 5 minutes)

Capacitance > 1000 F : tan increases by 0.01 for each 1000 F from below value.

tan

200

0.15

250

0.15

315

0.15

350

0.15

400

0.15

450

0.20

Load life

After an application of DC bias voltage plus the rated AC ripple current for 5000 hours at 105 C

The measurement shall meet the following limits.

Leakage current

Less than specified value

Capacitance change

Within 25% of initial value

tan

Less than 250% of specified value

After 1000 hours no load test, leakage current, capacitance and tan are same as load life value.

Unit : mm

Shelf life (at 105 C)

DRAWING

PC Board

Mounting Holes

Terminal

Insulating sleeve

Bottom plate

0.8

0.1

0.8

0.1

D 1 max.

0.2

6.0

0.1

Safety vent

L 2 max.

6.0 1

1.5

0.1

DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT

200

250

315

350

25.4

400

0.40

0.48

0.53

0.62

0.70

0.83

0.98

1.08

1.26

1.46

1.66

1.89

25.4

450

0.29

0.32

0.38

0.45

0.50

0.55

0.66

0.76

0.88

1.01

1.17

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

25.4

0.82

1.00

1.18

1.35

1.56

1.76

2.03

2.29

2.53

2.69

3.25

25.4

0.68

0.79

0.96

1.13

1.28

1.47

1.65

1.89

2.18

2.50

2.87

25.4

0.48

0.57

0.64

0.78

0.86

1.00

1.20

1.33

1.52

1.74

1.98

2.27

25.4

0.48

0.59

0.68

0.76

0.88

1.06

1.23

1.40

1.59

1.82

2.06

Ripple current (A rms) at 105 C, 120Hz
