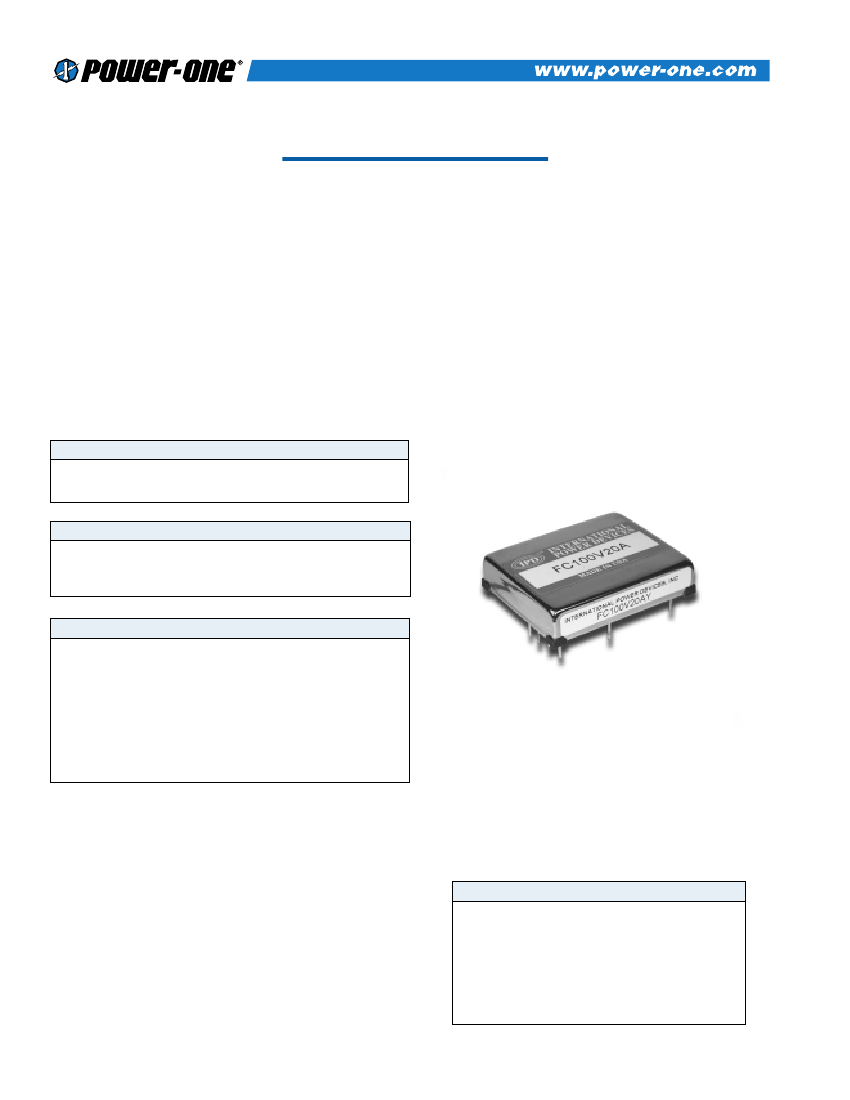

FC SERIES - 5A, 10A, 20A, FILTER
DESCRIPTION
FEATURES
Meets Class B
•
Conducted Limits
Optimized For
•
Power-One’s High
Density, Board-Mounted •
Products
•
PCB Mountable
Common Mode and
Differential Mode
Filtering
Industry Standard
Pinout
-40°C to 100°C Case
Operation
>30 dB Insertion Loss at
500 kHz
100 VDC Operation
FC100 industry standard input filter modules provide up •
to 30 dB of common mode and differential mode filtering
at 500 kHz. The FC100’s are available in 5A, 10A, and •
20A versions and are optimized for operation with Power-
One’s high density, board-mounted products. The filters
can be operated with up to 100 VDC input and have
•
1000 VDC isolation.
•
TECHNICAL SPECIFICATIONS
Input
Maximum Input Voltage
Line-to-Case Operation
Input Frequency
100 VDC
1000 VDC
100 Hz
Output
Maximum Average Current
400 LFM Airflow
Natural Convection
I
out
Max.
70% I
out
General
Isolation
Input - Case
Case Temperature
Operating Range @ I
out
Max.
1000 VDC
-40 to
+
60°C
-40 to +80°C
-40 to
+
125°C
95%
5 g, 10 - 55 Hz
Consult Factory
Consult Factory
Operating Range @ 70% I
out
Max.
Storage Range
Humidity Max., Non-Condensing
Vibration, 3 Axes, 5 Min Each
MTBF
†
(Bellcore TR-NWT-000332)
Safety
Notes
†
MTBF predictions may vary slightly from model to model.
Specifications typically at 25°C, normal line, and full load, unless otherwise
stated.
Soldering Conditions: I/O pins, 260°C, ten seconds; fully compatible with
commercial wave-soldering equipment.
Safety: Agency approvals may vary from model to model. Please consult factory
for specific model information.
Rev. 05/01
1
FC SERIES - 5A, 10A, 20A, FILTER
MODELS - (See the last page of Section C for options.)
Operating Current
(Amps)
5
10
20
Insertion Loss*
Differential Mode
(dB)
28
31
26
Insertion Loss*
Common Mode
(dB)
30
28
32
Typical
Resistance**
(mOhms)
27
17
6.6
Model
FC100V5A
FC100V10A
FC100V20A
* Typical loss at 500 kHz (50 Ohms)
** Resistance Per Leg

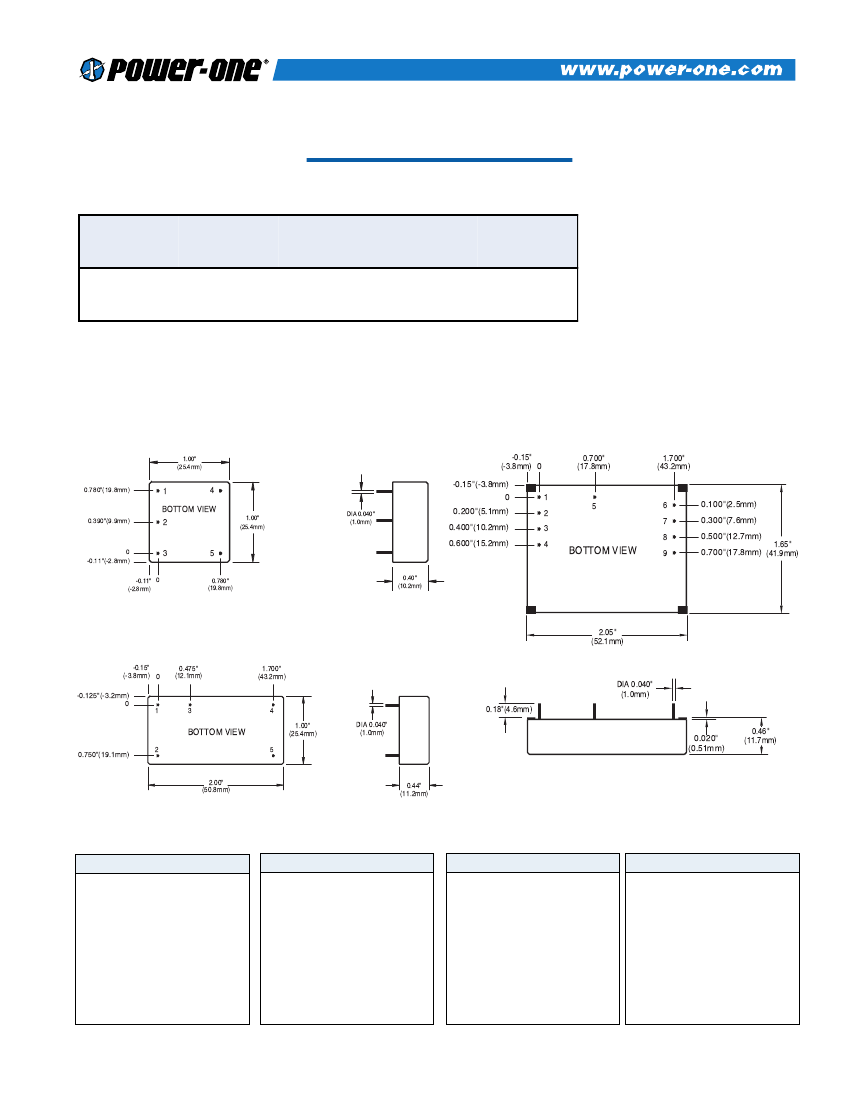

MECHANICAL DRAWING
FC100V5A
1.00"
(25.4mm)
FC100V20A
-0.15"
(-3.8mm) 0
-0.15"(-3.8mm)
0
1.00"
(25.4mm)
DIA 0.040"
(1.0mm)
0.700"
(17.8mm)
1.700"
(43.2mm)
0.780"(19.8mm)
1
4
1
2
3
4
5
6
7
8
BOTTOM VIEW
0.390"(9.9mm)
0.200"(5.1mm)
0.400"(10.2mm)
0.600"(15.2mm)
0.100"(2.5mm)
0.300"(7.6mm)
0.500"(12.7mm)
1.65"
0.700"(17.8mm) (41.9mm)
2
0
-0.11"(-2.8mm)
3
5
BOTTOM VIEW
9
-0.11" 0
(-2.8mm)
0.780"
(19.8mm)
0.40"
(10.2mm)
FC100V10A
-0.15"
(-3.8mm)
0
0.475"
(12.1mm)
1.700"
(43.2mm)
2.05"
(52.1mm)
DIA 0.040"
-0.125"(-3.2mm)
0
1
3
4
1.00"
(25.4mm)
5
DIA 0.040"
(1.0mm)
(1.0mm)
0.18"(4.6mm)
0.46"
(11.7mm)
BOTTOM VIEW
0.750"(19.1mm)
2
0.020"
(0.51mm)
2.00"
(50.8mm)
0.44"
(11.2mm)
Pin
5A Module
1
2
3
4
5
Function
Pin
10A Module
Function
Pin
20A Module
Function
Tolerances
Inches:
.XX ± 0.020
.XXX ± 0.010
Pin:
± 0.002
(Millimeters)
.X ± 0.5
.XX ± 0.25
± 0.05
+V
in
Ground
-V
in
+V
out
-V
out
1
2
3
4
5
+V
in
-V
in
Ground
+V
out
-V
out
1
2
3
4
5
6
7
8
9
-V
in
-V
in
+V
in
+V
in
Ground
-V
out
-V
out
+V
out
+V
out
(Dimensions as listed unless otherwise
specified.)
2
