SM59R04A2
8-Bit Micro-controller
16KB with ISP Flash
& 1KB RAM embedded
Product List
Features
SM59R04A2L25, SM59R04A2C25
Operating Voltage: 4.5V ~ 5.5V or 2.7V ~ 3.6V
High speed architecture of 1 clock/machine cycle (1T), runs
up to 25MHz
1T/2T modes are software programmable on the fly
Instruction-set compatible with MCS-51
Internal OSC with range 1MHz – 24MHz
16K bytes on-chip flash program memory
External RAM addresses up to 64K bytes.
Standard 12T interface for external RAM access.
256 bytes RAM as standard 8052, plus 1K bytes on-chip
expandable RAM
Dual 16-bit Data Pointers (DPTR0 & DPTR1)
Two serial peripheral interfaces in full duplex mode (UART0
& UART1),
Three 16-bit Timers/Counters. (Timer 0 , 1, 2)
36 GPIOs(PDIP 40)，40 GPIOs(PLCC 44/QFP 44)，44
GPIOs(LQFP 48)
GPIOs can select four Type(quasi-bidirectional、push-pull、
open drain、input-only)，default is quasi-bidirectional(pull-up)
External interrupt 0,1 with two priority levels
Programmable watchdog timer (WDT)
One IIC interface (Master/Slave mode)
One SPI interface (Master/Slave mode)
4-channel PWM
4-channel 16-bit compare /capture /load functions
8-channel 10-bit analog-to-digital converter (ADC)
On–chip flash memories support ISP/IAP/ICP and EEPROM
functions.
ISP service program space configurable in N*256 byte (N=0 to 16)
size.
On-chip in-circuit emulator (ICE) function with On-Chip
Debugger（OCD）
EMI reduction mode (ALE output inhibited).
Fast multiplication-division unit (MDU) : 16*16, 32/16, 16/16,
32-bit L/R shifting and 32-bit normalization
Keyboard interface (KBI) on port 0 or port 2 (default) for eight
more interrupts.
LVI/LVR (LVR deglitch 500ns)
Enhanced user code protection
Power management unit for idle and power down modes
Description
The SM59R04A2 is a 1T (one machine cycle per clock)
single-chip 8-bit microcontroller. It has 16K-byte embedded
Flash for program, and executes all ASM51 instructions fully
compatible with MCS-51.
SM59R04A2 contains 1KB on-chip RAM, more than 44
GPIOs (LQFP-48 package type), various serial interfaces
and many peripheral functions as described below. It can be
programmed via writers. Its on-chip ICE is convenient for
users in verification during development stage.
The high performance of SM59R04A2 can achieve
complicated manipulation within short time. About one third
of the instructions are pure 1T, and the average speed is 8
times of traditional 8051, the fastest one among all the 1T
51-series.Its excellent EMI and ESD characteristics are
advantageous for many different applications.
Ordering Information
SM59R04A2ihhkL yymmv
i: process identifier { L =2.7V ~ 3.6V, C = 4.5V ~ 5.5V}
hh: working clock in MHz {25}
k: package type postfix {as table below }
L:PB Free identifier
{No text is Non-PB free，”P” is PB free}
yy: year
mm: month
v: version identifier{ A, B,…}
Postfix
P
J
Q
V
Package
40L PDIP
44L PLCC
44L QFP
48L LQFP

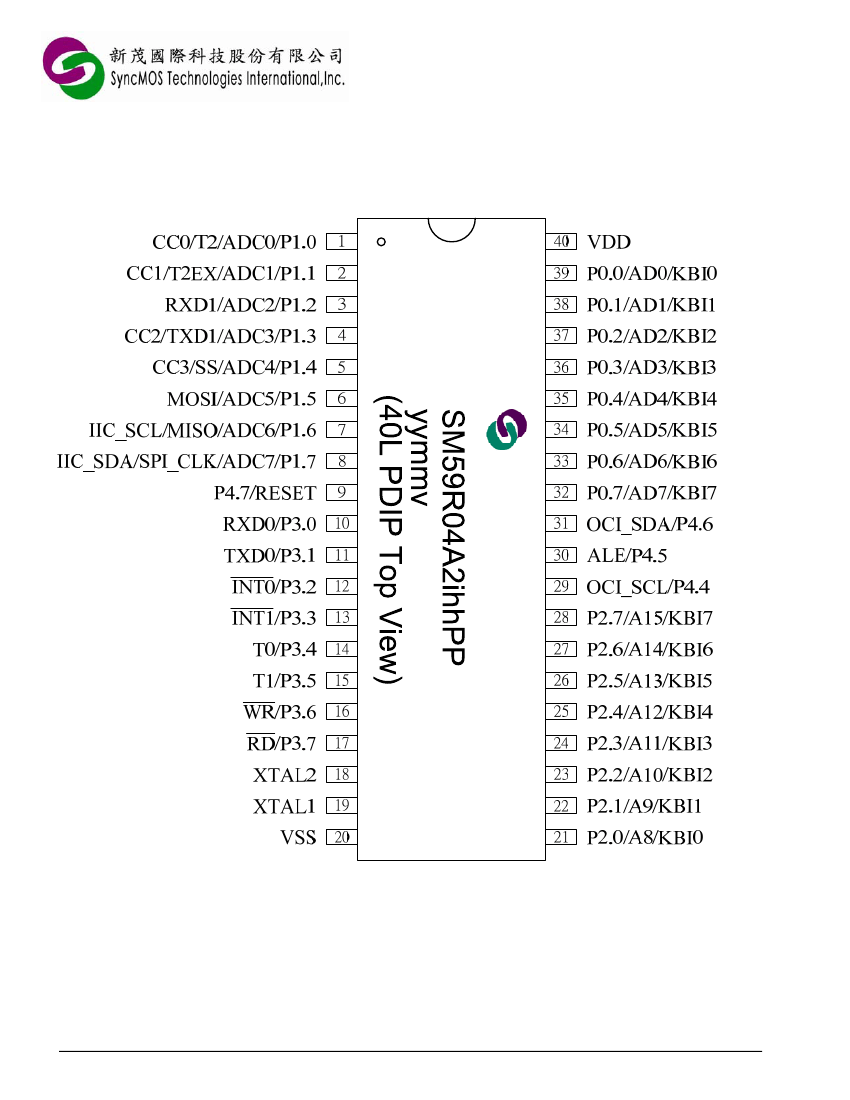

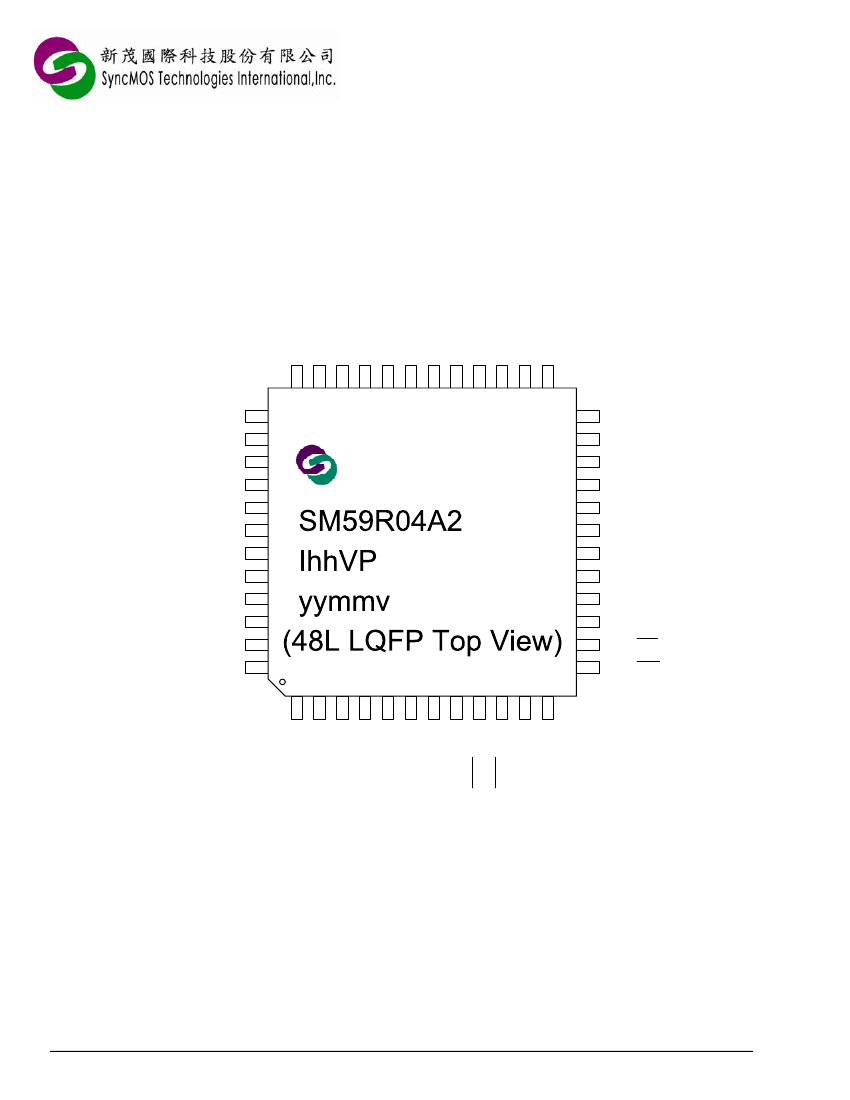

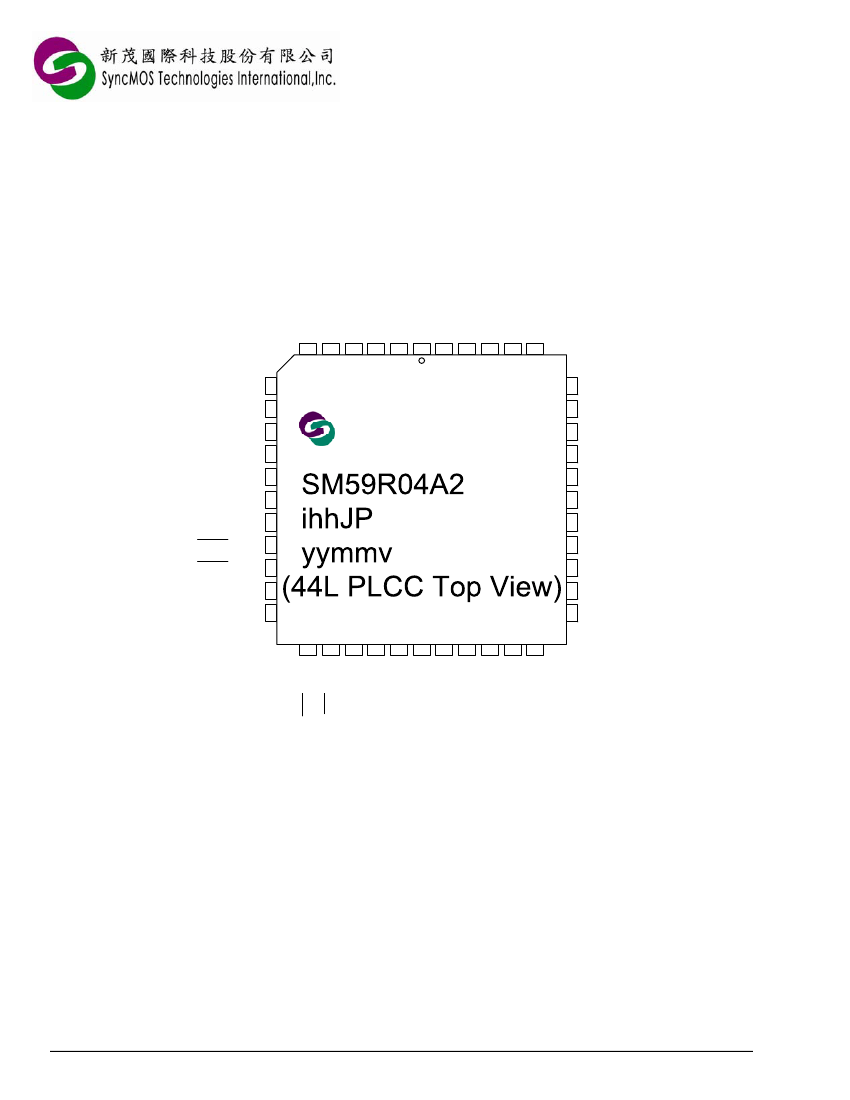

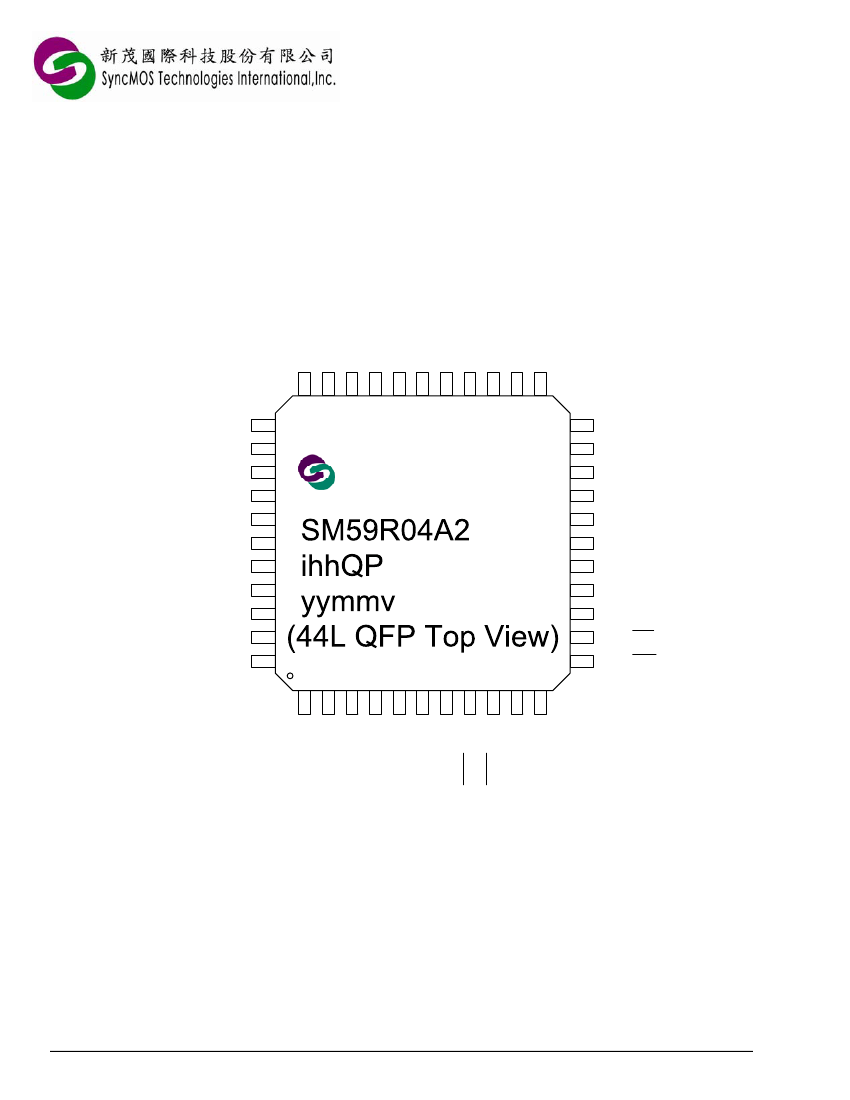

Pin / Pad Configuration
Page 2
Page 3
Page 4
Page 5
Contact SyncMOS : www.syncmos.com.tw
6F, No.10-2 Li- Hsin 1st Road , SBIP, Hsinchu, Taiwan
TEL: 886-3-567-1820 FAX: 886-3-567-1891
Specifications subject to change without notice contact your sales representatives for the most recent information.
ISSFD-M043
1
Ver.C SM59R04A2 03/2010
