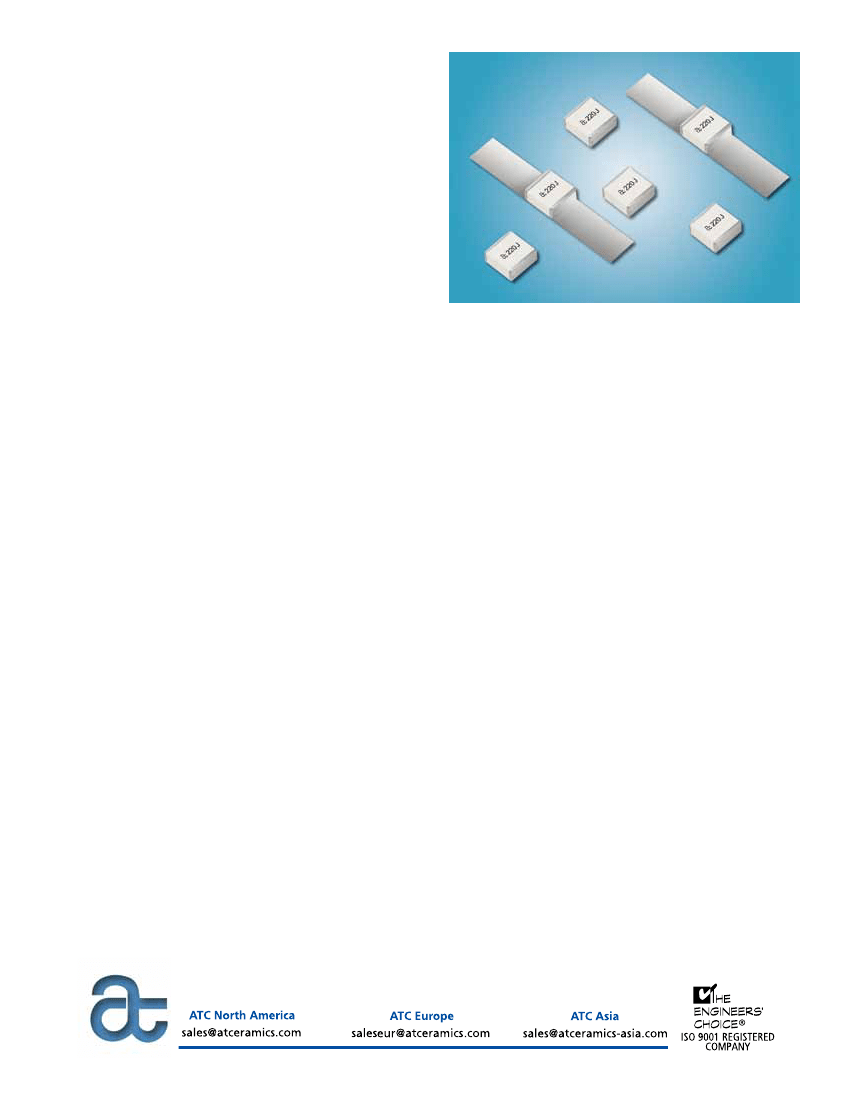

Typical circuit applications: HF/RF Power Amplifiers, Transmitters,
Antenna Tuning, Plasma Chambers and Medical (MRI coils).
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
QUALITY FACTOR (Q):
Greater than 5,000 (3.3 pF to 1000 pF) @ 1 MHz.
Greater than 5,000 (1100 pF to 5100 pF) @ 1 KHz.
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
0 ±30 PPM/°C (-55°C to +125°C)
INSULATION RESISTANCE (IR):
10
5
Megohms min. @ +25°C at rated WVDC
10
4
Megohms min. @ +125°C at rated WVDC
Max. test voltage is 500 VDC.
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, page 2
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
120% of WVDC for 5 seconds..
ENVIRONMENTAL TESTS
ATC 800 E Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681 and
MIL-PRF-123.
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A
MOISTURE RESISTANCE:
MIL-STD-202, Method 106
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied
while subjected to an environment of 85°C with 85% relative
humidity for 240 hours min.
LIFE TEST:
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater
AGING EFFECTS:
None
PIEzOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure)
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C
TERMINATION STYLE:
See Mechanical Configurations, page 3
TERMINAL STRENGTH:
Terminations for chips withstand a pull of 10
lbs. min., 25 lbs. typical, for 5 seconds in direction perpendicular
to the termination surface of the capacitor. Test per MIL-STD-202,
method 211.
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
Voltage applied.
120% of WVDC for capacitors rated at 1250 volts DC or less.
100% of WVDC for capacitors rated above 1250 volts DC
American
Technical
Ceramics
ATC # 001-1077 Rev. N, 1/14
THE ENGINEERS’ CHOICE
TM
w ww. at cer ami cs.co m
ATC 800 E Capacitance Values
CAP.
CODE
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
200
220
240
270
300
330
CAP.
(pF)
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
TOL.
RATED WVDC
CAP.
CODE
360
390
430
470
510
560
620
680
750
820
910
101
111
121
131
151
161
181
201
221
241
271
301
331
361
CAP.
(pF)
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
220
240
270
300
330
360
TOL.
RATED WVDC
CAP.
CODE
391
431
471
511
561
621
681
751
821
911
102
112
122
132
152
162
182
202
222
242
272
302
332
392
472
512
CAP.
(pF)
390
430
470
510
560
620
680
750
820
910
1000
1100
1200
1300
1500
1600
1800
2000
2200
2400
2700
3000
3300
3900
4700
5100
TOL.
RATED WVDC
3600
B, C, D
7200
F, G, J, K
2500
7200
F, G, J, K
F, G, J, K
3600
G, J, K
2000
CAPACITANCE TOLERANCE
J
B
C
D
F
G
K
Code
±0.1 pF ±0.25 pF ±0.5 pF ±1% ±2% ±5% ±10%
Tol.
ATC PART NUMBER CODE
ATC800 E 22 0 J TN 7200 X
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
Termination Code
Packaging
C - ATC Matrix Tray (Standard)
T - Tape and Reel, 250 pc. qty.
I - Special Packaging (Consult Factory)
Laser Marking
C
WVDC
The above part number refers to a 800 E Series (case size E) 22 pF capacitor, J tolerance (±5%), 7200 WVDC,
with TN termination (Tin Plated over Non-Magnetic Barrier Termination), laser marking and plastic Matrix Tray packaging.
ATC accepts orders for our parts using designations with or without the
“ATC” prefix. Both methods of defining the part number are equivalent, i.e.,
part numbers referenced with the “ATC” prefix are interchangeable to parts
referenced without the “ATC” prefix. Customers are free to use either in
specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (631) 622-4700.
Consult factory for additional performance data.
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
2
w w w.at c e r a mic s .c o m

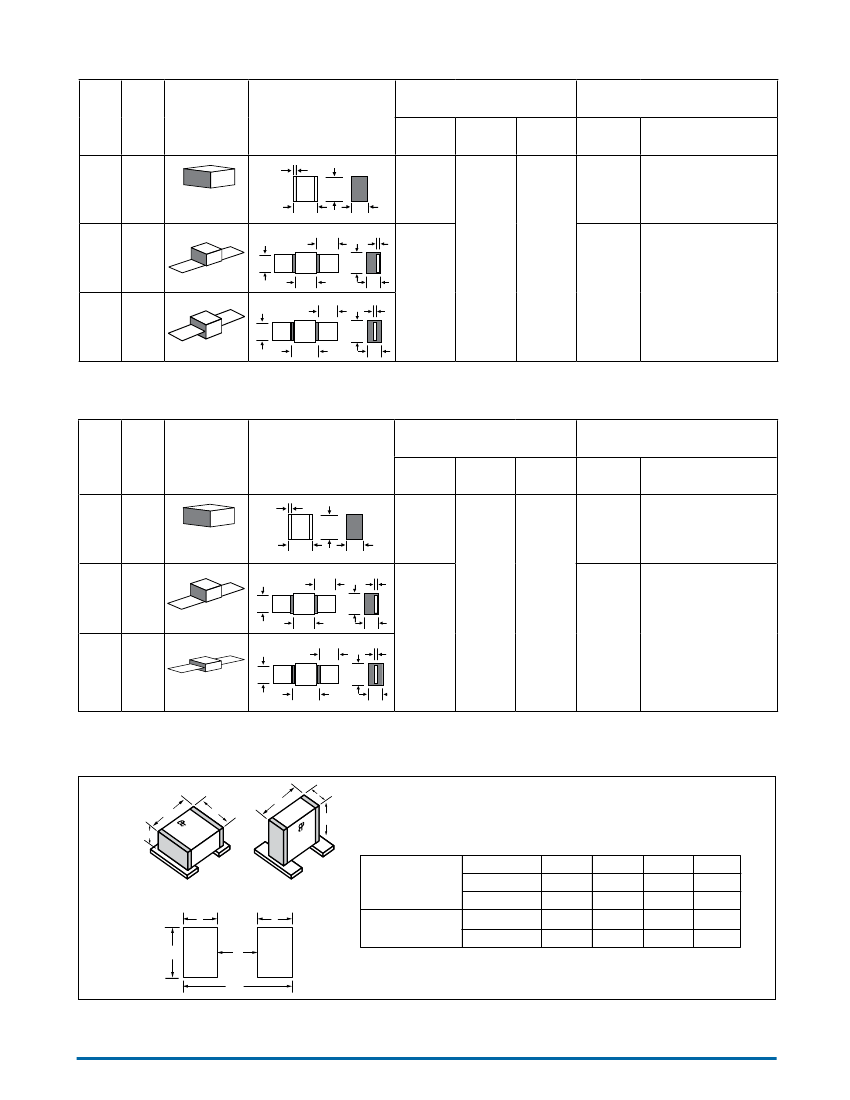

ATC 800 E Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIzE
ATC
CASE SIzE
TERM. & TYPECASE SIzE
CODE
& TYPE
OUTLINES
W/T IS A
TERMINATION SURFACE
Y
BODY DIMENSIONS
INCHES (mm)
LENGTH
(L)
.380
+.015 -.010
(9.65
+0.38 -0.25)
TL
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
.040 (1.02)
max.
MATERIALS
WIDTH
(W)
THICKNESS
(T)
800 E
T
E
Solderable Nickel
Barrier
E
W
L
T
Tin Plated over
Nickel Barrier Termination
RoHS Compliant
LL
WL
W
L
800 E
MS
Microstrip
E
T
LL
WL
W
L
TL
800 E
AR
Axial Ribbon
.380
+.015 -.010 .190 (4.83)
(9.65
max.
.380
+.035 -.010 +0.38 -0.25)
(9.65
+0.89
-0.25)
N/A.
T
LL = .750 (19.05) min.
WL = .350 ±.010
(8.89 ±0.25)
TL = .010 ±.005
(0.25 ±0.13)
Leads are Attached with
High Temperature Solder
High Purity
Silver Leads
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
ATC 800 E Non-Magnetic Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIzE
ATC
TERM.
CODE
CASE SIzE
& TYPE
OUTLINES
W/T IS A
TERMINATION SURFACE
Y
BODY DIMENSIONS
INCHES (mm)
WIDTH
(W)
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
.040 (1.02)
max.
MATERIALS
LENGTH
(L)
.380
+.015 -.010
(9.65
+0.38
-0.25)
THICKNESS
(T)
800 E
TN
Non-Mag
Solderable Barrier
E
E
RoHS Compliant
Tin Plated over
Non-Magnetic
Barrier Termination
W
L
T
TL
LL
800 E
MN
Non-Mag
Microstrip
E
WL
L
W
T
LL
WL
W
L
TL
800 E
AN
Non-Mag
Axial Ribbon
.380
+.015 -.010 .190 (4.83)
(9.65
max.
.380
+.035 -.010 +0.38 -0.25)
(9.65
+0.89
-0.25)
N/A.
T
LL = .750 (19.05) min.
WL = .350 ±.010
(8.89 ±0.25)
TL = .010 ±.005
(0.25 ±0.13)
Leads are Attached with
High Temperature Solder.
High Purity
Silver Leads
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
ATC 800 E Capacitors: Suggested Mounting Pad Dimensions
L
L
2
T
W
W
2
0
T
220J
Horizontal
Electrode Orientation
B
J
Case E
Pad Size
A Min.
.205
.185
.405
.385
B Min.
.050
.030
.050
.030
C Min.
.325
.325
.325
.325
D Min.
.425
.385
.425
.385
Normal
High Density
Normal
High Density
Vertical
Electrode Orientation
B
Vertical Mount
Horizontal Mount
A
C
Dimensions are in inches.
D
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
w w w.at c e r a mic s .c o m
3
ATC 800 E Performance Data
800 E ESR vs. Frequency
100
10
pF
12
pF
22
pF
ESR (MilliOhms)
47
pF
220
pF
10
330
pF
560
pF
750
pF
ESR (MilliOhms)
5100
pF
1
1
10
100
1000
Frequency (MHz)
10000
800 E FSR vs. Capacitance
1000
Frequency (MHz)
100
(Typical)
10
1
10
100
1000
10000
Capacitance (pF)
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
4
w w w.at c e r a mic s .c o m
ATC 800 E Performance Data
100
800E Current Ratings vs. Capacitance
The current is based on a 65
o
C mounting surface and a
device thermal resistance of 12
o
C/W. A power dissipation
of 5 W will result in a case temperature of 125
o
C
10
RMS Current (Amps)
30 MHz
10 MHz
1
2 MHz
(Typical)
0
1
10
100
Dotted line = Power dissipation
limit
Solid line = Voltage limit
(Vrms/Xc
Solid line = Voltage limit
(Vrms/Xc)
)
1000
10000
Capacitance (pF)
1
0.8
0.6
0.4
TCC= 0 ±30 PPM/C
800E Capacitance Change vs. Temperature
% Change in Capacitance
0.2
0
-0.2
-0.4
-0.6
-0.8
-1
-55
-35
-15
5
25
45
65
85
105
125
Temperature (Degrees C)
Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC document
#001-992 Rev. B; 12/05). Copies of these terms and conditions will be provided upon request. They may also be viewed on ATC's website at www.atceramics.
com/productfinder/default.asp. Click on the link for Terms and Conditions of Sale.
ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements of
rights of third parties which may result from its use. ATC reserves the right to revise the content or modify its product without prior notice.
In the process of PCB wiring, what is the bus wiring method? ? In the county card, the motherboard saw that its wiring was very beautiful. After asking, it was said that it was bus wiring. I don't und...
[font=Impact][size=5] This is a picture I took out of a mobile hard drive. On a sunny afternoon, it suddenly stopped working and I put it in a box. I was sorting things out today and found it. I took ...
Because there are too many AD versions, it is easy to make mistakes when exporting gerber files due to version compatibility issues. For safety reasons, it is recommended to provide gerber files, or i...
Dear experts, I have a question to ask. I was recently assigned to make a small thing. The purpose is to send several FPGA configuration files to the microcontroller through the serial port. After rec...
Table of contents
IntroductionSection 1MDK5.11aSection 2JLINK Driver InstallationSection 3USB to Serial Driver InstallationSection 4Serial Port Debugging AssistantIntroduction
This document mainly int...
The weak current part of the drive system is measured with a multimeter, but are there any special tools to measure the strong current part of the power system? For example, the power converter part...
The core of a machine vision system is image acquisition and processing. All information comes from images, and image quality is crucial to the entire vision system. A good image can improve the st...[Details]
Tesla and BYD, vying for dominance in the global electric vehicle market, are reportedly considering adopting Samsung's AMOLED (active-matrix organic light-emitting diode) technology for their next...[Details]
Flip-chip and ball grid array (BGA) are two widely used packaging technologies in the electronics industry. Each has its own advantages and limitations, and in some cases, they can complement each ...[Details]
introduction
With the development of digital and network technologies, broadcasting technology has become increasingly diversified, with the most significant trend being the transition from an...[Details]
The jammer is a signal blocker, mainly composed of a chip and a radio transmitter. When the car owner presses the remote control lock button, the jammer interferes with the electronic lock receivin...[Details]
With the rapid development of technology, automotive intelligence is increasing at an unprecedented rate. This not only enhances vehicle functionality and comfort, but also places higher deman...[Details]
Recently,
Xpeng Motors and Xinlian Integrated Circuit jointly announced the mass production of China's first hybrid silicon carbide product.
Designed and developed by Xpeng Motors and joint...[Details]
On August 22nd, Lantu Motors unveiled a new technology called "Lanhai Intelligent Hybrid" during a live broadcast of CCTV News' "Top Laboratory." The name sounds like another new term, but a closer...[Details]
According to foreign media reports, BMW has just been granted a patent for a screen that could cover the entire roof. BMW hopes to transform at least a portion of the vehicle's headliner into a dis...[Details]
In the summer of 2025, BlueOval SK, a joint venture between Ford and SK On, officially started production at its first battery factory in Kentucky.
According to the original plan, this w...[Details]
For autonomous vehicles to safely navigate the road, they must identify far more complex objects than just traffic lights, pedestrians, and other familiar objects. Among these obstacles is a crucia...[Details]
The practice of warming up a car originated with gasoline-powered vehicles. Warming up the engine allows it to enter a better working state and ensures good lubrication. This has become a habit for...[Details]
SMT placement machines are important equipment in surface mount technology (Surface Mount Technology). Their performance has a decisive impact on the quality and efficiency of electronic manufactur...[Details]
With the continuous development of the industrial automation industry, we are seeing an increasing number of intelligent devices using flexible, efficient, and precise robotic arms to p...[Details]
The 2025 China International Automotive Testing Exhibition will be held at the Shanghai World Expo Exhibition and Convention Center from August 27 to 29, 2025.
Clacton Seafront, UK, ...[Details]
The Industrial Cloud
京公网安备 11010802033920号
EEWORLD
