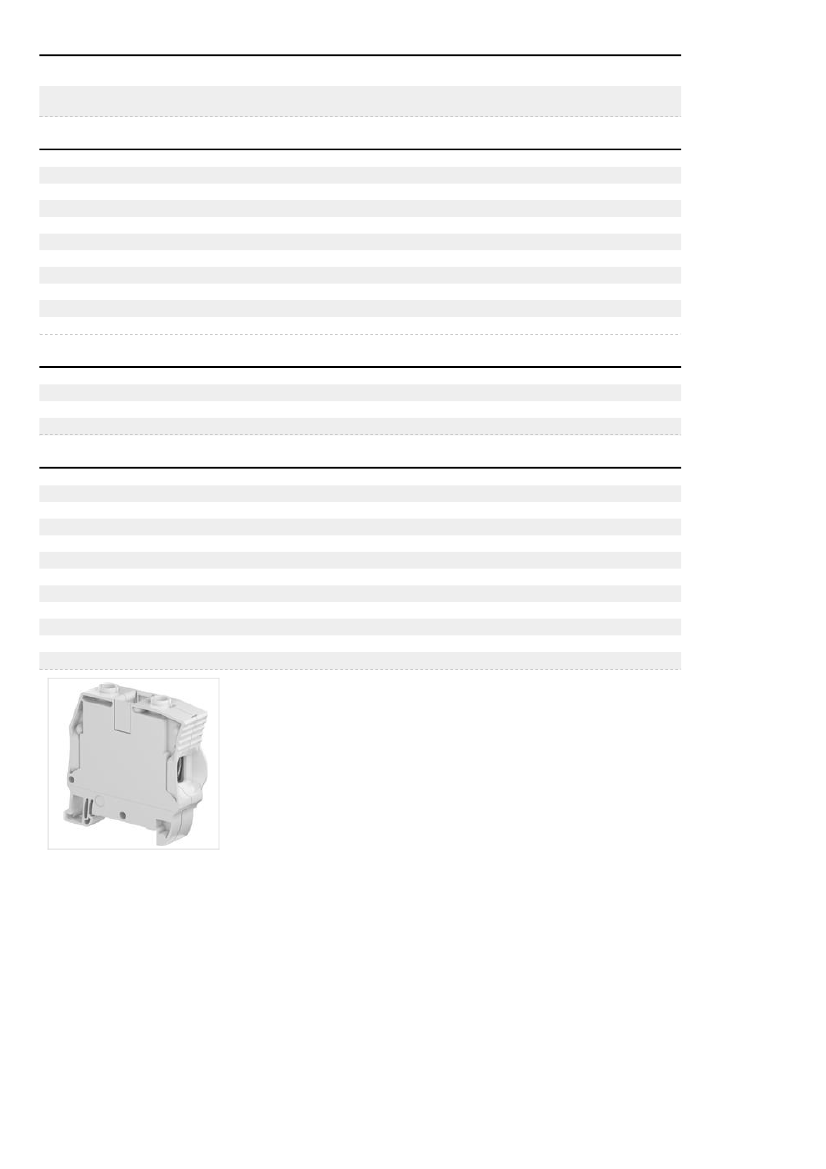

ZS50-YL
General Information
Extended Product Type:
Product ID:
EAN:
Catalog Description:
Long Description:
ZS50-YL
1SNK516060R0000
3472595160600
ZS50-YL Screw Clamp Terminal Block - Feed-through - Yellow
Combine high performance with compact dimensions: - Connect conductors up to 50 mm²
(CB certified) 0 AWG in just 16 mm 0.630 in spacing, - Perfectly adapted to solar
applications: 1250 V DC (1000 V AC) IEC and 1000 V UL, - Closed terminal block: no end
section needed, optmized rigidity.
Categories
Products
»
Low Voltage Products and Systems
»
Connection Devices
»
Terminal Blocks
»
SNK Series
Ordering
Minimum Order Quantity:
Customs Tariff Number:
Color:
20 piece
85369010
Yellow
Dimensions
Product Net Height:
Product Net Depth:
Product Net Weight:
Product Net Width:
59 mm
60.2 mm
52.9 g
16 mm
Technical
16 mm
Screw clamp
Feed-through
1
Screw Clamp / Flexible 1x 1 … 50 mm²
Screw Clamp / Flexible 2x 1 … 25 mm²
Screw Clamp / Rigid 1x 1 … 50 mm²
Screw Clamp / Rigid 2x 1 … 25 mm²
Screw Clamp / With Insulated Ferrrule 1x 1 … 50 mm²
Screw Clamp / Without Insulated Ferrule 1x 1 … 50 mm²
Screw Clamp / With Twin Ferrule 2x 1 … 16 mm²
Gauge Type:
Dia.11
Rated Current (I
n
):
Main Circuit 150 A
Rated Short-time Withstand Current
for 1 s 6000 A
(I
cw
):
Rated Voltage (U
r
):
1000 V
Rated Impulse Withstand Voltage
8000 V
(U
imp
):
Dielectric Test Voltage:
2200 V
Pollution Degree:
3
Power Loss:
4.8 W
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Insulation Material:
Polyamide
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Wire Stripping Length:
17.0 mm
Rated Cross-Section:
50 mm²
Spacing:
Connection Type:
Function:
Number of Levels:
Connecting Capacity Main Circuit:
Technical UL/CSA
Connecting Capacity Main Circuit
UL/CSA:
Screw Clamp / Rigid 1x 18 … 0 AWG
Screw Clamp / Rigid 2x 18 … 4 AWG
Screw Clamp / With Insulated Ferrrule 1x 18 … 0 AWG
Screw Clamp / Without Insulated Ferrule 1x 18 … 0 AWG
Screw Clamp / With Twin Ferrule 2x 18 … 4 AWG
Connecting Capacity UL/CSA:
Stranded 0 AWG
Flammability According to UL94:
V0
Short-Circuit Current Rating (SCCR):
100 kA
Maximum Operating Voltage
Main Circuit 1000 V
UL/CSA:
Environmental
Resistance to Vibrations acc. to IEC
Compliant
60068-2-6:
Ambient Air Temperature:
Operation -55 ... +110 °C
Storage -55 ... +110 °C
Certificates and Declarations (Document Number)
Instructions and Manuals:
ATEX Certificate:
BV Certificate:
CB Certificate:
CSA Certificate:
cUL Certificate:
Data Sheet, Technical Information:
Declaration of Conformity - CE:
DNV Certificate:
EAC Certificate:
RoHS Information:
1SNK160027C0201
1SND162004A1706
1SND161073A0203
1SND161103A0200
1SND161070A0208
1SND161041A0208
1SNK161070D0201
1SND225112U1000
1SND161087A0202
1SND161010A1100
1SND230491F0207
Classifications
ETIM 4:
ETIM 5:
ETIM 6:
Object Classification Code:
EC000897 - Feed-through terminal block
EC000897 - Feed-through terminal block
EC000897 - Feed-through terminal block
X
Container Information
Package Level 1 Width:
Package Level 1 Length:
Package Level 1 Height:
Package Level 1 Gross Weight:
Package Level 1 EAN:
Package Level 2 Units:
Package Level 2 Width:
Package Level 2 Length:
Package Level 2 Height:
Package Level 3 Units:
Product Packing Type:
Package Level 1 Units:
82 mm
265 mm
65 mm
1.058 kg
3472595160600
160 piece
300 mm
400 mm
200 mm
7680 piece
Box
20 piece
