CO-406E-6D0.016MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CO-406E-6D0.016MHZ

CO-406E-6D0.016MHZ: DescriptionXO, Clock, 0.016MHz Min, 100MHz Max, 0.016MHz Nom, Hybrid, RESISTANCE WELDED, METAL CAN, DIP-14/4; CategoryPassive components oscillator; File Size199KB，3 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

CO-406E-6D0.016MHZ Overview

XO, Clock, 0.016MHz Min, 100MHz Max, 0.016MHz Nom, Hybrid, RESISTANCE WELDED, METAL CAN, DIP-14/4

CO-406E-6D0.016MHZ Parametric

Parameter Name	Attribute value
Objectid	1148230607
package instruction	GWDIP4/14,.3
Reach Compliance Code	compliant
maximum descent time	15 ns
Frequency Adjustment - Mechanical	NO
frequency stability	10%
Manufacturer's serial number	CO-406
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	100 MHz
Minimum operating frequency	0.016 MHz
Nominal operating frequency	0.016 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Output load	10 TTL
Package body material	METAL
Encapsulate equivalent code	GWDIP4/14,.3
physical size	20.32mm x 12.7mm x 6.35mm
power supply	5 V
Certification status	Not Qualified
longest rise time	15 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %
technology	HYBRID

Preview

Download Datasheet

View All

Vectron Products - Custom Hybrid TTL Clock Oscillators - CO-406

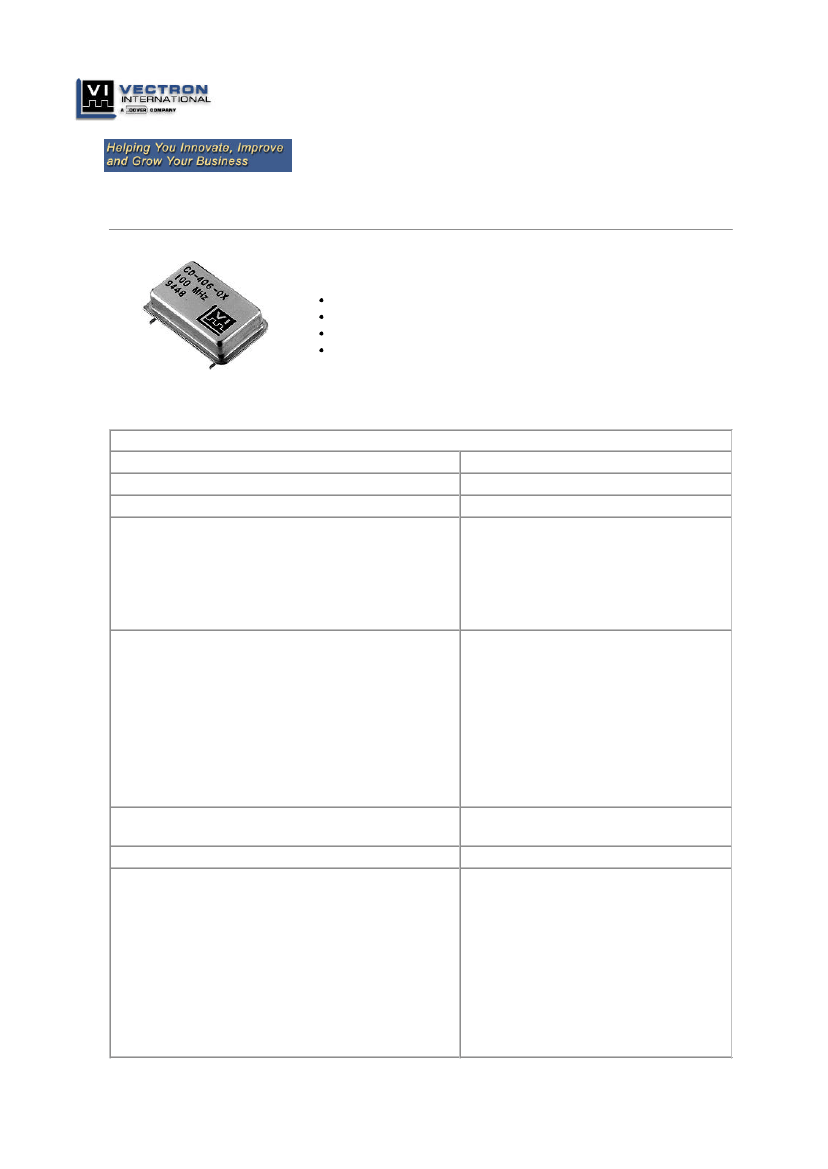

CO-406 Custom Hybrid TTL Clock Oscillators

Products

Features

Low Profile Surface Mount DIP

Resistance Welded Metal Can

3 Point Mount Crystal

16 kHz to 100 MHz Frequency Range

SPECIFICATIONS

Series

Frequency

Supply

Accuracy

(at 25°C)

CO-406:

Surface Mount

16 kHz-100 MHz

5 Vdc ± 5%

CO-406A

±50 ppm

CO-406C

±25 ppm

CO-406D

±15 ppm

CO-406B

±10 ppm

CO-406E

±1 ppm*

*Settability via external capacitor; 16 kHz-60 MHz only.

Temperature Stability

Improved accuracy/stability available on some models. For example, for ±7 ppm over 0°C to +50°C and

for ±10ppm over 0°C to +70°C. Improvement is also available over wider temperature ranges. Please

contact factory.

STANDARD:

0°C to +70°C:

Option

-55°C to +85°C:

Option

*Option

±25 ppm

±50 ppm

-55°C to +125°C: ±50 ppm

0°C to +50°C: ±5 ppm

0°C to +50°C: ±10 ppm

-55°C to +125°C: ±100 ppm

-55°C to +200°C: ±300 ppm

(Option 9: Only for CO-401/2/6/7 series in 4-20 MHz range)

*Specified stability includes initial accuracy:

do not specify A,B,C,D or E accuracy.

Aging Rate

(typical after 30 days)

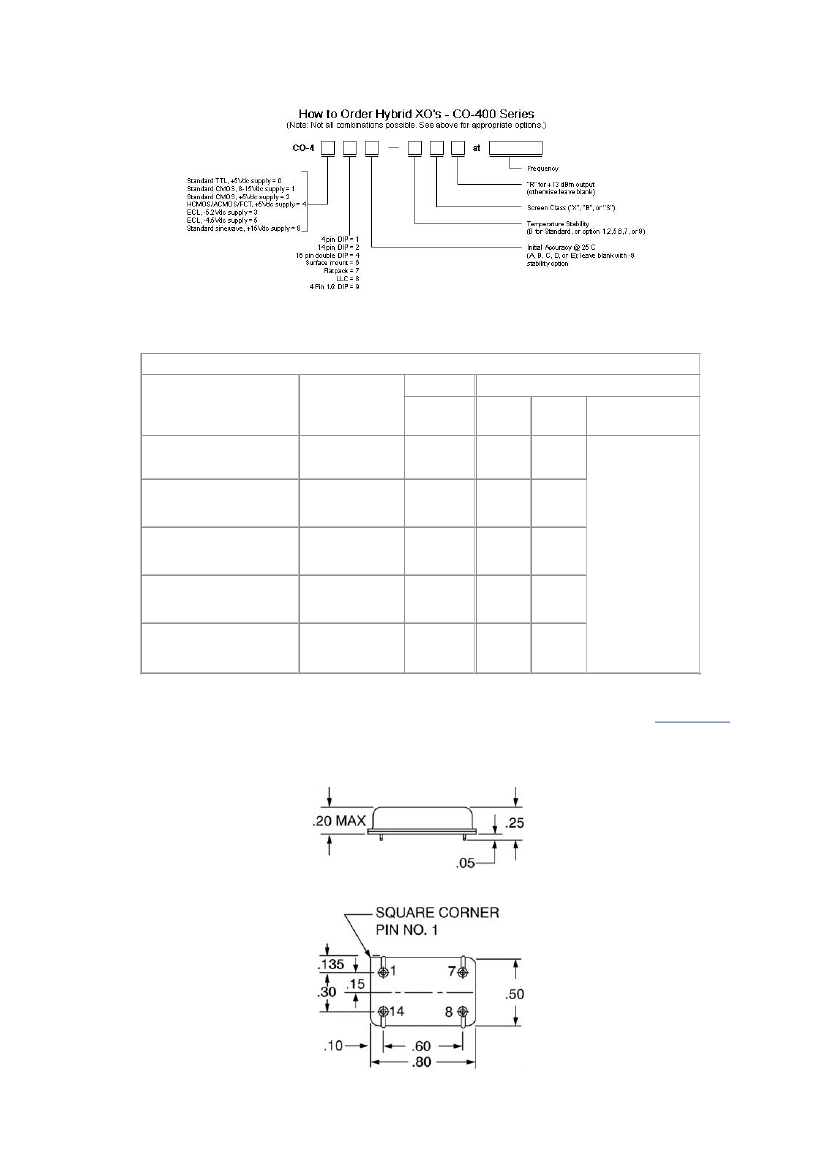

Case

Output

3 ppm first year

2 ppm/year thereafter

Resistance welded metal case

Output:

Drive:

<4 MHz 4-20

MHz

10 TTL 10 TTL

<0.4V

>2.4V

<15ns

60/40

>20 MHz

10 STTL

<0.4V

>2.4V

2-5ns

60/40

"0" Level:

<0.4V

"1" Level:

>2.4V

Rise/Fall Time: <15ns

(0.5-2.4V)

Symmetry:

at 1.5V

55/45

If improved symmetry is required, please contact factory.
