3051 Series – LINE FILTERS
A. Electrical Specifications:
Part
Number
Inductance
(uH)
DCR
(Ω) Max.
0.050
0.500
0.080
0.100
1.000
0.250
0.350
Rev. A
Rated Current
(A) rms.
0.50
0.50
0.80
0.80
0.50
0.50
0.50
3051-01_H
80
3051-02_H
100
3051-03_H
440
3051-04_H
1000
3051-05_H
3000
3051-06_H
3300
3051-07_H
6800
Note: “_”: Tolerance, H – Internal control code.

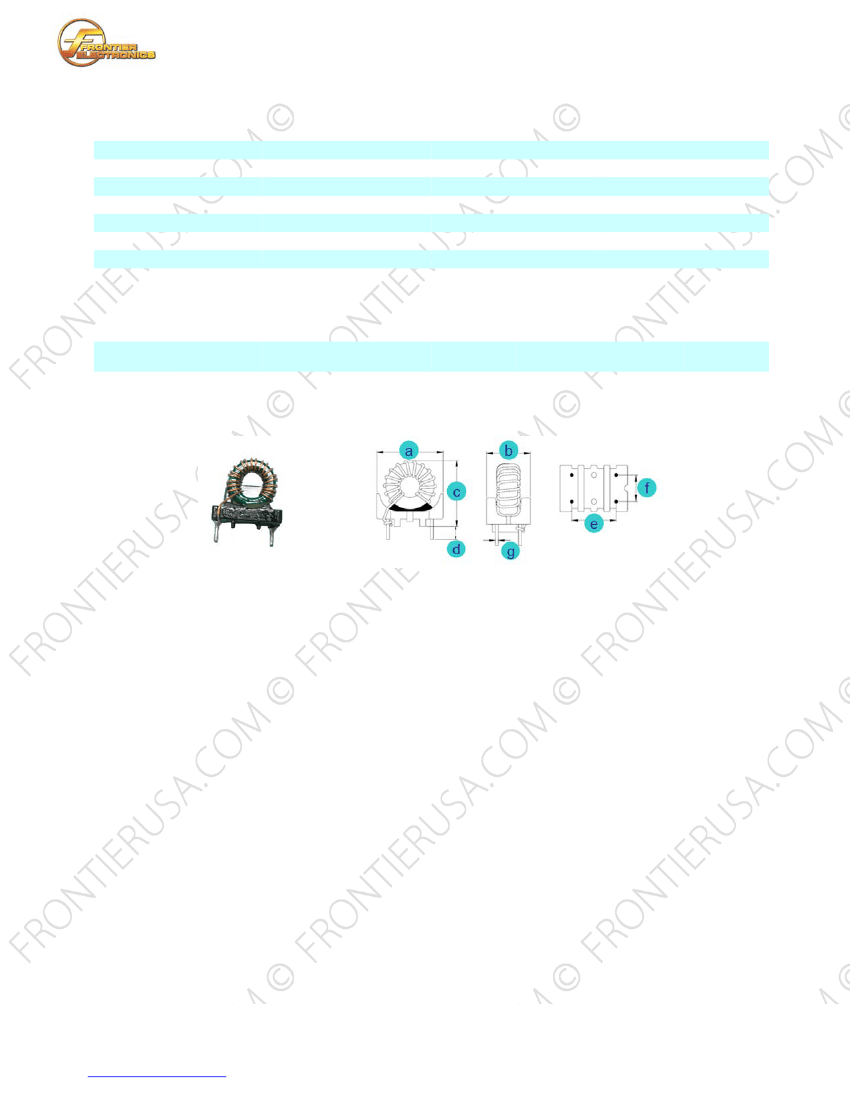

B. Dimensions: mm (Inch)
Series
3051 Series
Tol.
a
20.0
(0.787)
Max.
b
12.0
(0.472)
Max.
c
22.0
(0.866)
Max.
d
4.0
(0.157)
±1.0
(0.039)
e
15.0
(0.591)
±0.5
(0.020)
f
6.0
(0.236)
±0.5
(0.020)
g
1.0
(0.039)
±0.1
(0.004)
C. General Information:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Tolerance “_”: N: ±30%, M: ± 20%.
Test Condition: 1.0 KHz / 1V.
Electrical specifications at 25ºC
Maximum Temperature Rise: 40°C (when measured at 25°C ambient).
Rated Voltage: 100 to 270V / 50-60 Hz.
Withstanding Voltage: 1500VAC for one minute.
Insulation Resistance: 100 MΩ at 500VDC.
Operating temperature: -20ºC to +105ºC
MSL: Level 1.
D. Applications:
1.
2.
3.
4.
Computers & Game Consoles
Set Top Boxes & Cables Modems
Mobile Communication Devices (Radios, etc.)
LCD, DVD, BRP
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
1
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
