BZX84B2V7 - BZX84B39
350mW SURFACE MOUNT PRECISION ZENER DIODE
Features
•
•
•
•
•
•
•
±2%
Tolerance on V
Z
350mW Power Dissipation
Zener Voltages from 2.7V - 39V
Ideally Suited for Automated Assembly Processes
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
Case: SOT23
Case Material: Molded Plastic “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Solderable per MIL-STD-202, Method 208 Lead-Free
Plating (Matte Tin Finish Annealed over Alloy 42 Leadframe).
Polarity: See Diagram
Weight: 0.008 grams (Approximate)
SOT23
Top View
Device Schematic
Ordering Information
(Note 4)
Part Number
(Type Number)-7-F*
(Type Number)Q-7-F*
(Type Number)-13-F*
(Type Number)Q-13-F*
Qualification
Standard
Automotive
Standard
Automotive
Case
SOT23
SOT23
SOT23
SOT23
Packaging
3000/Tape & Reel
3000/Tape & Reel
10,000/Tape & Reel
10,000/Tape & Reel
*For (Type Number), please see the Electrical Characteristics Table. Example: 7.5V Zener = BZX84B7V5-7-F.
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, see http://www.diodes.com/products/packages.html.
Marking Information
xxx = Product Type Marking Code
(See Electrical Characteristics Table)
YM = Date Code Marking
Y = Year (ex: F = 2018)
M = Month (ex: 9 = September)
xxx
Date Code Key
Year
Code
Month
Code
2012
Z
Jan
1
Feb
2
2013
A
Mar
3
Apr
4
…
…
May
5
YM
2018
F
Jun
6
Jul
7
2019
G
Aug
8
Sep
9
2020
H
Oct
O
Nov
N
2021
I
Dec
D
BZX84B2V7 - BZX84B39
Document number: DS36159 Rev. 3 - 2
1 of 5
www.diodes.com
June 2018
© Diodes Incorporated
BZX84B2V7 - BZX84B39
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Forward Voltage
@ I
F
= 10mA
Symbol
V
F
Value
0.9
Unit
V
Thermal Characteristics
Characteristic
Power Dissipation (Note 5)
Power Dissipation (Note 6)
Thermal Resistance, Junction to Ambient Air (Note 5)
Thermal Resistance, Junction to Ambient Air (Note 6)
Operating and Storage Temperature Range
Symbol
P
D
P
D
R
ϴJA
R
ϴJA
T
J,
T
STG
Value
300
350
417
357
-65 to +150
Unit
mW
mW
°C/W
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Type
Number
Marking
Code
Zener Voltage Range
(Note 7)
V
Z
@ I
ZT
Nom (V)
BZX84B2V7
BZX84B3V0
BZX84B3V3
BZX84B3V6
BZX84B3V9
BZX84B4V3
BZX84B4V7
BZX84B5V1
BZX84B5V6
BZX84B6V2
BZX84B6V8
BZX84B7V5
BZX84B8V2
BZX84B9V1
BZX84B10
BZX84B11
BZX84B12
BZX84B13
BZX84B15
BZX84B16
BZX84B18
BZX84B20
BZX84B22
BZX84B24
BZX84B27
BZX84B30
BZX84B33
BZX84B36
BZX84B39
Notes:
Maximum Zener
Impedance
f = 1KHz
I
ZT
Z
ZT
@ I
ZT
(Ω)
100
95
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
Z
ZK
@ I
ZK
(Ω)
600
600
600
600
600
600
500
480
400
150
80
80
80
100
150
150
150
170
200
200
225
225
250
250
300
300
325
350
350
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
(mA)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
2.0
2.0
2.0
2.0
2.0
Maximum Reverse
Current
(Note 7)
I
R
(µA)
20
10
5.0
5.0
3.0
3.0
3.0
2.0
1.0
3.0
2.0
1.0
0.7
0.5
0.2
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
V
R
(V)
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
8.0
10.5
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.1
25.2
27.3
Temperature
Coefficient
@ I
ZT
Min
mV/°C
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-2.7
-2.0
0.4
1.2
2.5
3.2
3.8
4.5
5.4
6.0
7.0
9.2
10.4
12.4
14.4
16.4
18.4
21.4
24.4
27.4
30.4
33.4
Max
mV/°C
0
0
0
0
0
0
0.2
1.2
2.5
3.7
4.5
5.3
6.2
7.0
8.0
9.0
10.0
11.0
13.0
14.0
16.0
18.0
20.0
22.0
25.3
29.4
33.4
37.4
41.2
Min (V)
2.65
2.94
3.23
3.53
3.82
4.21
4.61
5
5.49
6.08
6.66
7.35
8.04
8.92
9.8
10.8
11.8
12.7
14.7
15.7
17.6
19.6
21.6
23.5
26.5
29.4
32.3
35.3
38.2
Max (V)
2.75
3.06
3.37
3.67
3.98
4.39
4.79
5.2
5.71
6.32
6.94
7.65
8.36
9.28
10.2
11.2
12.2
13.3
15.3
16.3
18.4
20.4
22.4
24.5
27.5
30.6
33.7
36.7
39.8
KZC
KZD
KZE
KZF
KZG
KZH
KZ1
KZ2
KZ3
KZ4
KZ5
KZ6
KZ7
KZ8
KZ9
KY1
KY2
KY3
KY4
KY5
KY6
KY7
KY8
KY9
KYA
KYB
KYC
KYD
KYE
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
5. Device mounted on FR-4 PCB with recommended pad layout, which can be found at http://www.diodes.com.
6. Valid provided the terminals are kept at ambient temperature.
7. Short duration pulse test used to minimize self-heating effect.
BZX84B2V7 - BZX84B39
Document number: DS36159 Rev. 3 - 2
2 of 5
www.diodes.com
June 2018
© Diodes Incorporated
BZX84B2V7 - BZX84B39
500
50
P
D
, POWER DISSIPATION (mW)
I
Z
, ZENER CURRENT (mA)
200
400
40
300
Note 5
Note 6
30
200
20
100
10
0
0
160
120
40
80
T
A
, Ambient Temperature, (°C)

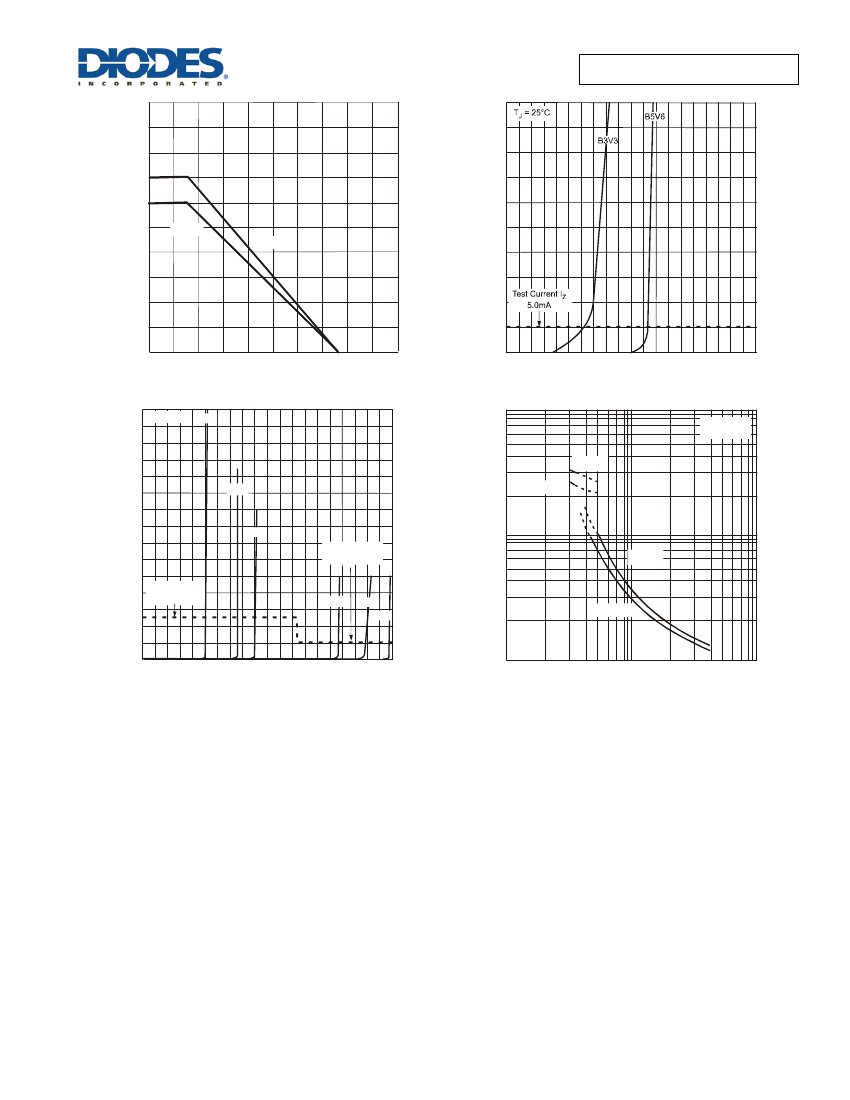

Figure 1 Power Derating Curve
B10
0
0
8
9 10
5
6
3
4
7
V
Z
, ZENER VOLTAGE (V)
Figure 2 Typical Zener Breakdown Characteristics
1
2
30
T
J
= 25°C
1,000
T
J
= 25 °C
C
T
, TOTAL CAPACITANCE (pF)
I
Z
, ZENER CURRENT (mA)
V
R
= 1V
V
R
= 2V
20
B15
B18
Test current I
Z
2mA
100
V
R
= 1V
10
Test current I
Z
5mA
B33
B36
B39
V
R
= 2V
0
0
10
1
10
20
30
40
V
Z
, ZENER VOLTAGE (V)
Figure 3 Typical Zener Breakdown Characteristics
10
V
Z
, NOMINAL ZENER VOLTAGE (V)
Figure 4 Typical Total Capacitance
vs. Nominal Zener Voltage
100
BZX84B2V7 - BZX84B39
Document number: DS36159 Rev. 3 - 2
3 of 5
www.diodes.com
June 2018
© Diodes Incorporated
BZX84B2V7 - BZX84B39
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
H
J
All 7°
GAUGE PLANE
0.25
K1
K
a
A
M
L
L1
C
B
D
F
G
SOT23
Dim
Min
Max
Typ
A
0.37
0.51
0.40
B
1.20
1.40
1.30
C
2.30
2.50
2.40
D
0.89
1.03 0.915
F
0.45
0.60 0.535
G
1.78
2.05
1.83
H
2.80
3.00
2.90
J
0.013 0.10
0.05
K
0.890 1.00 0.975
K1
0.903 1.10 1.025
L
0.45
0.61
0.55
L1
0.25
0.55
0.40
M
0.085 0.150 0.110
a
0°
8°
--
All Dimensions in mm
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
Y
Y1
C
Dimensions
C
X
X1
Y
Y1
Value (in mm)
2.0
0.8
1.35
0.9
2.9
X
X1
BZX84B2V7 - BZX84B39
Document number: DS36159 Rev. 3 - 2
4 of 5
www.diodes.com
June 2018
© Diodes Incorporated
BZX84B2V7 - BZX84B39
