Capacitor Array
Capacitor Array (IPC)
BENEFITS OF USING CAPACITOR
ARRAYS
AVX capacitor arrays offer designers the opportunity to
lower placement costs, increase assembly line output
through lower component count per board and to reduce
real estate requirements.
For high volume users of cap arrays using the very latest
placement equipment capable of placing 10 components per
second, the increase in throughput can be very significant and
can have the overall effect of reducing the number of place-
ment machines required to mount components:
If 120 million 2-element arrays or 40 million 4-element arrays
were placed in a year, the requirement for placement
equipment would be reduced by one machine.
During a 20Hr operational day a machine places 720K
components. Over a working year of 167 days the machine
can place approximately 120 million. If 2-element arrays are
mounted instead of discrete components, then the number
of placements is reduced by a factor of two and in the
scenario where 120 million 2-element arrays are placed there
is a saving of one pick and place machine.
Smaller volume users can also benefit from replacing
discrete components with arrays. The total number of place-
ments is reduced thus creating spare capacity on placement
machines. This in turn generates the opportunity to increase
overall production output without further investment in new
equipment.
Reduced Costs
Placement costs are greatly reduced by effectively placing
one device instead of four or two. This results in increased
throughput and translates into savings on machine time.
Inventory levels are lowered and further savings are made
on solder materials, etc.
Space Saving
Space savings can be quite dramatic when compared to
the use of discrete chip capacitors. As an example, the
0508 4-element array offers a space reduction of >40% vs.
4 x 0402 discrete capacitors and of >70% vs. 4 x 0603
discrete capacitors. (This calculation is dependent on the
spacing of the discrete components.)
Increased Throughput
Assuming that there are 220 passive components placed in a
mobile phone:
A reduction in the passive count to 200 (by replacing
discrete components with arrays) results in an increase in
throughput of approximately 9%.
A reduction of 40 placements increases throughput by 18%.

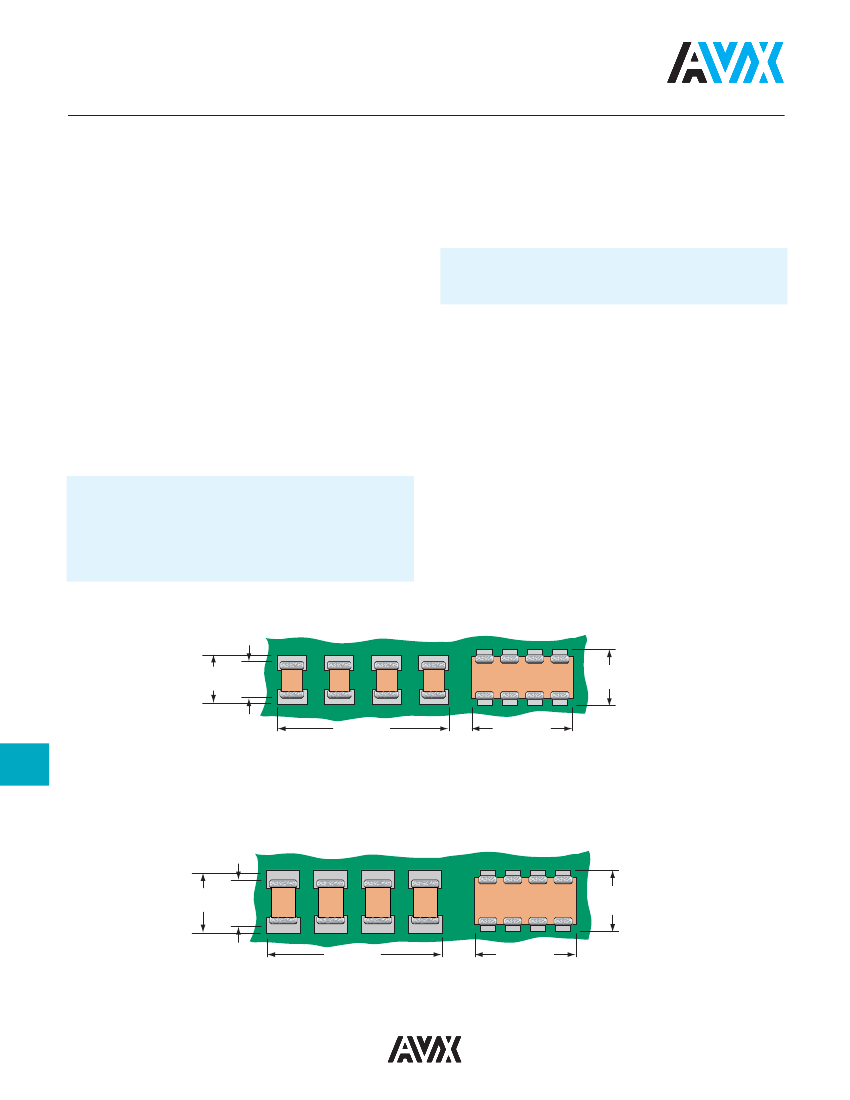

W2A (0508) Capacitor Arrays
4 pcs 0402 Capacitors
=
1 pc 0508 Array
1.0
1.4
(0.055) (0.039)
1.88
(0.074)
5.0 (0.197)
AREA = 7.0mm
2
(0.276 in
2
)
2.1 (0.083)
AREA = 3.95mm
2
(0.156 in
2
)
The 0508 4-element capacitor array gives a PCB space saving of over 40%
vs four 0402 discretes and over 70% vs four 0603 discrete capacitors.
W3A (0612) Capacitor Arrays
4 pcs 0603 Capacitors
=
1 pc 0612 Array
2.3
1.5
(0.091) (0.059)
2.0
(0.079)
6.0 (0.236)
AREA = 13.8mm
2
(0.543 in
2
)
3.2 (0.126)
AREA = 6.4mm
2
(0.252 in
2
)
The 0612 4-element capacitor array gives a PCB space saving of over 50%
vs four 0603 discretes and over 70% vs four 0805 discrete capacitors.
64
Automotive Capacitor Array (IPC)
As the market leader in the development and manufacture of capacitor
arrays AVX is pleased to offer a range of AEC-Q200 qualified arrays to
compliment our product offering to the Automotive industry. Both the
AVX 0612 and 0508 4-element capacitor array styles are qualified to the
AEC-Q200 automotive specifications.
AEC-Q200 is the Automotive Industry qualification standard and a
detailed qualification package is available on request.
All AVX automotive capacitor array production facilities are certified to
ISO/TS 16949:2002.

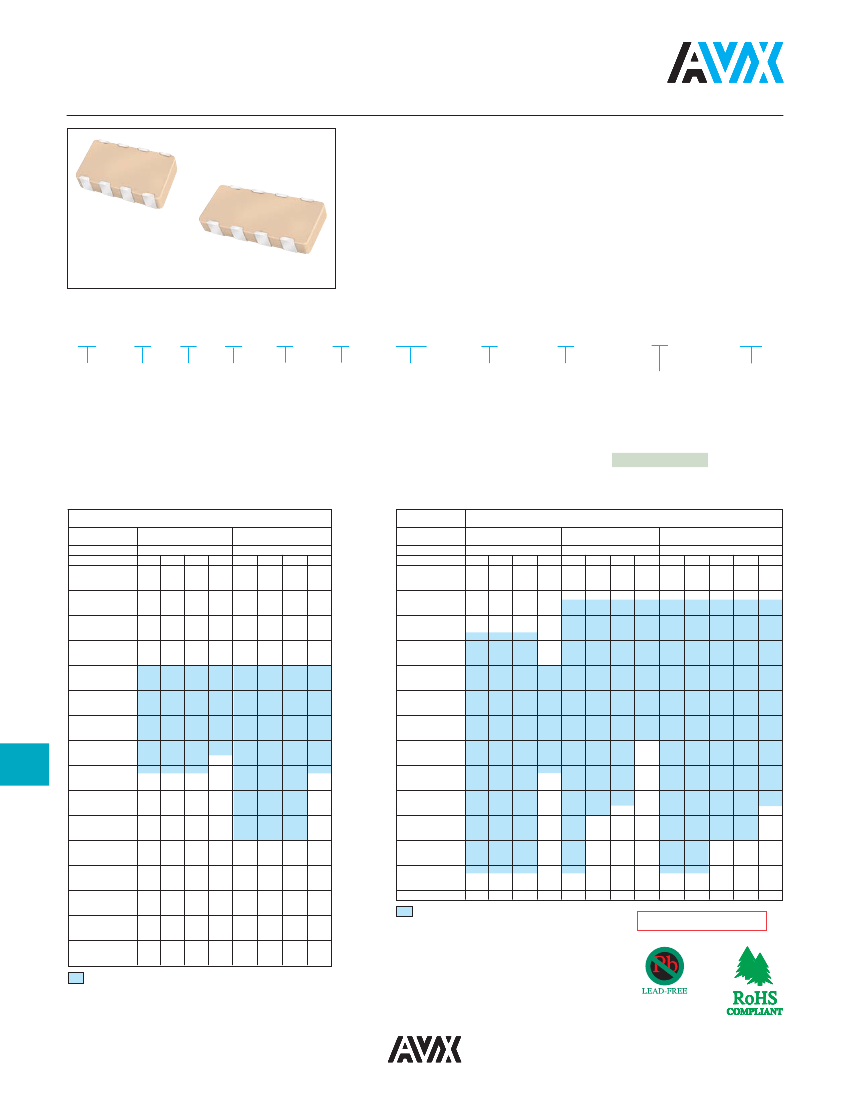

0508 - 4 Element
0612 - 4 Element
HOW TO ORDER
W
3
A
4
Y
C
104
Capacitance
Code (In pF)
Significant
Digits +
Number of
Zeros
e.g. 10μF=106
K
Capacitance
Tolerance
*J = ±5%
*K = ±10%
M = ±20%
4
T
2A
Case
Style
Size
W = RoHS
L = SnPb 2 = 0508
3 = 0612
Array Number Voltage Dielectric
A = NP0
of Caps
Z = 10V
Y = 16V
C = X7R
3 = 25V
F = X8R
5 = 50V
1 = 100V
Failure Rate
Packaging
Terminations
& Quantity
4 = Automotive
*T
= Plated Ni and Sn
Code
®
*Z
= FLEXITERM
2A = 7" Reel
B = 5% min lead
(4000)
X = FLEXITERM
®
4A = 13" Reel
with 5% min lead
(10000)
2F = 7" Reel
*RoHS compliant
(1000)
*Contact factory for availability by part number for K = ±10% and J = ±5% tolerance.
NP0/C0G
SIZE
No. of Elements
WVDC
1R0
Cap 1.0
1R2
(pF) 1.2
1R5
1.5
1R8
1.8
2R2
2.2
2R7
2.7
3R3
3.3
3R9
3.9
4R7
4.7
5R6
5.6
6R8
6.8
8R2
8.2
100
10
120
12
150
15
180
18
220
22
270
27
330
33
390
39
470
47
560
56
680
68
820
82
101
100
121
120
151
150
181
180
221
220
271
270
331
330
391
390
471
470
561
560
681
680
821
820
102
1000
122
1200
152
1500
182
1800
222
2200
272
2700
332
3300
392
3900
472
4700
562
5600
682
6800
822
8200
= NPO/COG
X7R
W3 = 0612
4
W2 = 0508
4
16
25
50
100
16
SIZE
100
No. of Elements
WVDC
101
Cap 100
121
(pF) 120
151
150
181
180
221
220
271
270
331
330
391
390
471
470
561
560
681
680
821
820
102
1000
122
1200
152
1500
182
1800
222
2200
272
2700
332
3300
392
3900
472
4700
562
5600
682
6800
822
8200
103 Cap 0.010
123
(μF) 0.012
153
0.015
183
0.018
223
0.022
273
0.027
333
0.033
393
0.039
473
0.047
563
0.056
683
0.068
823
0.082
104
0.10
124
0.12
154
0.15
224
0.22
= X7R
W2 = 0508
2
16
25
50
100
16
W2 = 0508
4
25
50
100
10
W3 = 0612
16
4
25
50
100
25
50
Not RoHS Compliant
LEAD-FREE COMPATIBLE
COMPONENT
68
For RoHS compliant products,
please select correct termination style.
Capacitor Array

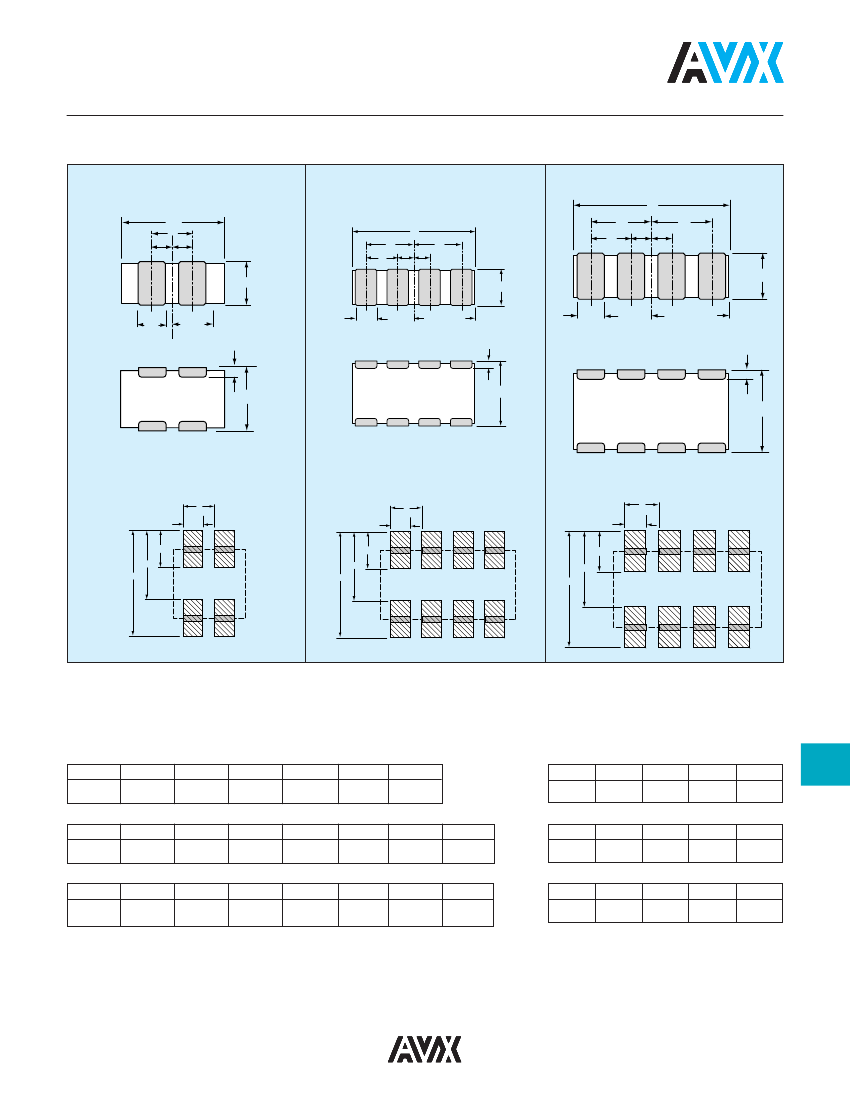

PART & PAD LAYOUT DIMENSIONS
0508 - 2 Element
W
P
S
S
P
X
S
S
millimeters (inches)
0508 - 4 Element
0612 - 4 Element
W
X
X
S
S
W
X
P
T
T
T
BW
C/L
OF CHIP
BW
C/L OF CHIP
BW
C/L OF CHIP
C
L
C
L
C
L
BL
BL L
L
BL
L
PAD LAYOUT
E
D
PAD LAYOUT
E
D
PAD LAYOUT
E
D
A
B
C
C
B
A
A
B
C
PART DIMENSIONS
0508 - 2 Element
L
W
T
0.94 MAX
(0.037 MAX)
PAD LAYOUT DIMENSIONS
0508 - 2 Element
BW
BL
P
S
A
0.68
(0.027)
B
1.32
(0.052)
C
2.00
(0.079)
D
0.46
(0.018)
E
1.00
(0.039)
1.30 ± 0.15
2.10 ± 0.15
(0.051 ± 0.006) (0.083 ± 0.006)
0.43 ± 0.10
0.33 ± 0.08
(0.017 ± 0.004) (0.013 ± 0.003)
1.00 REF
0.50 ± 0.10
(0.039 REF) (0.020 ± 0.004)
0508 - 4 Element
L
W
T
0.94 MAX
(0.037 MAX)
0508 - 4 Element
BW
BL
P
X
S
A
0.56
(0.022)
B
1.32
(0.052)
C
1.88
(0.074)
D
0.30
(0.012)
E
0.50
(0.020)
1.30 ± 0.15
2.10 ± 0.15
(0.051 ± 0.006) (0.083 ± 0.006)
0.25 ± 0.06
0.20 ± 0.08
(0.010 ± 0.003) (0.008 ± 0.003)
0.50 REF
0.75 ± 0.10
0.25 ± 0.10
(0.020 REF) (0.030 ± 0.004) (0.010 ± 0.004)
0612 - 4 Element
L
W
T
1.35 MAX
(0.053 MAX)
0612 - 4 Element
BW
BL
+0.25
-0.003
P
X
S
A
0.89
(0.035)
B
1.65
(0.065)
C
2.54
(0.100)
D
0.46
(0.018)
E
0.76
(0.030)
1.60 ± 0.20
3.20 ± 0.20
(0.063 ± 0.008) (0.126 ± 0.008)
0.41 ± 0.10
0.18
-0.08
(0.016 ± 0.004) (0.007
+0.010
)
0.76 REF
1.14 ± 0.10
0.38 ± 0.10
(0.030 REF) (0.045 ± 0.004) (0.015 ± 0.004)
69
