CSS1050G Series
SMD WIRE WOUND POWER INDUCTORS (SHIELDED)
Rev. B

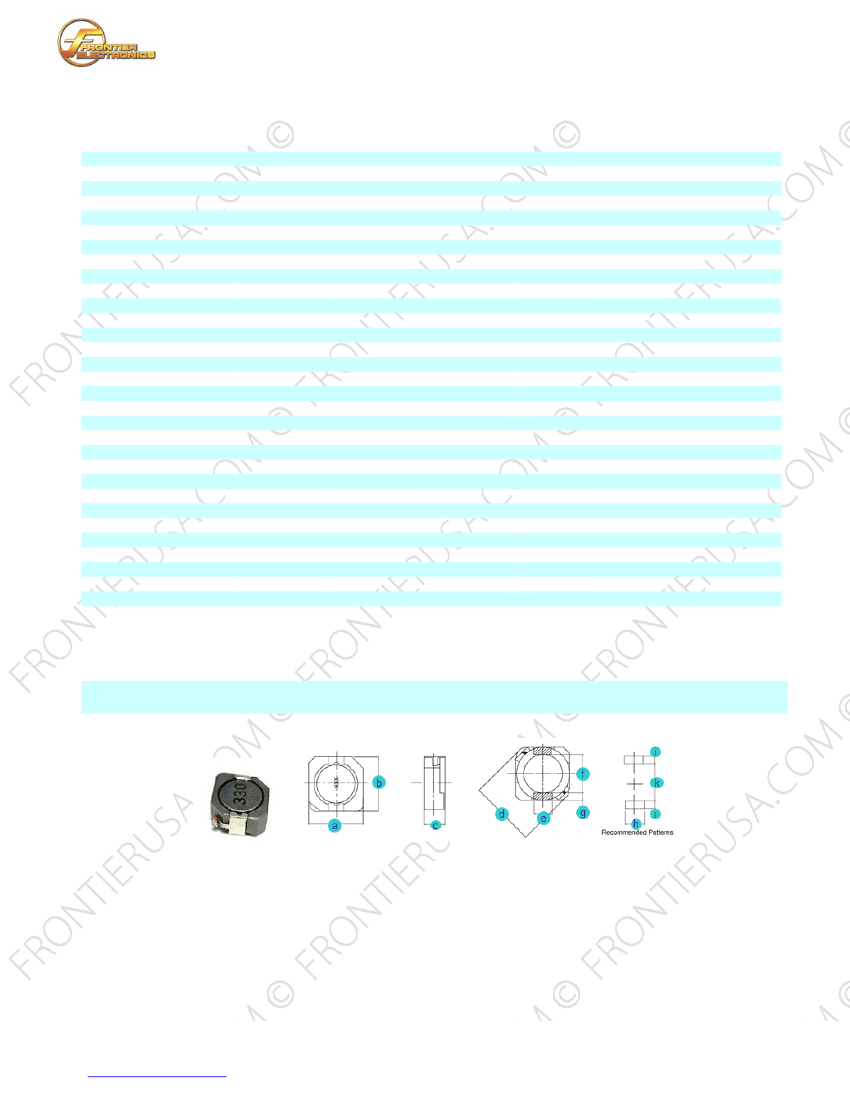

A. Electrical Specifications:
P/N
CSS1050G-R80N
CSS1050G-1R5N
CSS1050G-2R2N
CSS1050G-3R3N
CSS1050G-4R7N
CSS1050G-6R8N
CSS1050G-8R2N
CSS1050G-100N
CSS1050G-120N
CSS1050G-150N
CSS1050G-180N
CSS1050G-220N
CSS1050G-270N
CSS1050G-330N
CSS1050G-390N
CSS1050G-470N
CSS1050G-560N
CSS1050G-680N
CSS1050G-820N
CSS1050G-101N
CSS1050G-121N
CSS1050G-151N
CSS1050G-181N
CSS1050G-221N
CSS1050G-271N
CSS1050G-331N
CSS1050G-391N
CSS1050G-471N
CSS1050G-561N
CSS1050G-681N
CSS1050G-821N
CSS1050G-102N
Marking
R80
1R5
2R2
3R3
4R7
6R8
8R2
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
Inductance
(μH)
0.80
1.50
2.20
3.30
4.70
6.80
8.20
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100
120
150
180
220
270
330
390
470
560
680
820
1000
Test Freq.
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DCR Max.
(mΩ)
4.3
5.8
7.2
10.4
12.3
18.0
20.0
26.0
33.0
41.0
46.0
61.0
69.0
84.0
106.0
130.0
149.0
201.0
227.0
253.0
303.0
370.0
419.0
500.0
672.0
812.0
953.0
1289
1430
1599
1768
1989
Rated Current
(A)
9.50
8.30
7.50
6.50
6.10
5.40
5.00
4.50
3.80
3.40
3.10
2.90
2.60
2.50
2.25
2.00
1.90
1.60
1.45
1.35
1.18
1.10
1.00
0.94
0.80
0.73
0.70
0.54
0.52
0.51
0.48
0.42
I sat
(A)
13.5
10.5
9.25
7.80
6.40
5.40
4.85
4.45
4.00
3.60
3.20
2.95
2.70
2.40
2.30
2.00
1.90
1.65
1.50
1.35
1.28
1.12
1.04
0.94
0.84
0.75
0.70
0.60
0.54
0.52
0.50
0.48
B. Dimensions: mm (Inch)
Series
CSS1050G
Tol.
a
10.3
(0.406)
Max.
b
10.5
(0.413)
Max.
c
5.1
(0.201)
Max.
d
13.5
(0.531)
Max.
e
3.0
(0.118)
Typ.
f
7.7
(0.303)
Typ.
g
1.2
(0.047)
Typ.
h
3.2
(0.126)
Typ.
i
1.6
(0.063)
Typ.
k
7.3
(0.287)
Typ.
C. General Information:
1.
2.
3.
4.
5.
6.
7.
8.
9.
CSS1050G-xxx_, “CSS1050G” = P/N, “xxx” = Inductance, “_” = Tolerance.
Tolerance “_”: N = ±30%, M = ± 20%.
Operating temperature range: -30ºC to +100ºC (Including self-heating).
Storage temperature: -40ºC to +85ºC.
Inductance measured using the HP4284A and Chroma1320 & 3302.
DCR measured using Chroma 16502 milliohm meter.
Inductance drop no more than 35% of initial value at Isat, temperature rise ∆t < 40ºC at rated current.
Inductance and Current range: From 0.80µH (9.50A) to 1000.0 µH (0.42A).
MSL: Level 1
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
CSS1050G Series
SMD WIRE WOUND POWER INDUCTORS (SHIELDED)
Rev. B
D. Applications:
1.
2.
3.
4.
5.
6.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
PDA, LCD, DVD, BRP, HD.

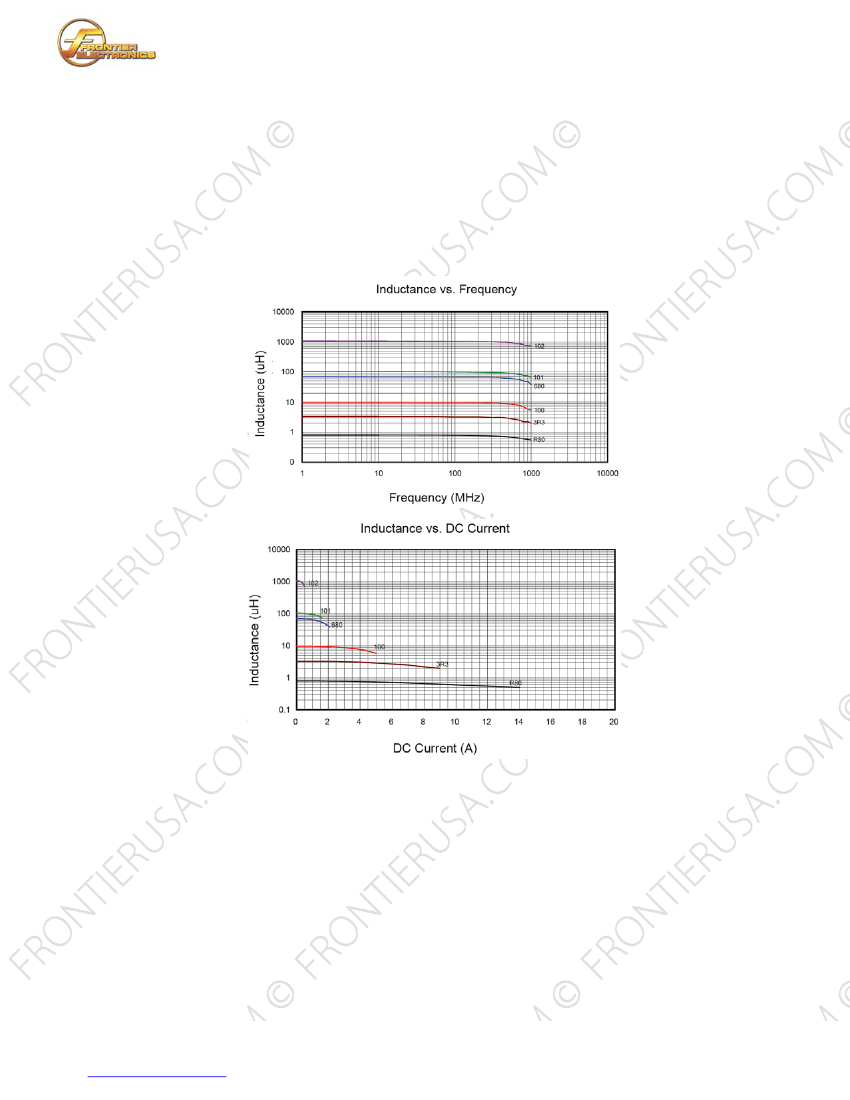

E. Characteristics Curve:
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
