FL160808 (0603) Series
SMD MULTILAYER FERRITE CHIP INDUCTORS
Rev. A
A. Electrical Specifications:
P/N
FL160808-47N_
FL160808-68N_
FL160808-R10_
FL160808-R12_
FL160808-R15_
FL160808-R18_
FL160808-R22_
FL160808-R27_
FL160808-R33_
FL160808-R39_
FL160808-R47_
FL160808-R56_
FL160808-R68_
FL160808-R82_
FL160808-1R0_
FL160808-1R2_
FL160808-1R5_
FL160808-1R8_
FL160808-2R2_
FL160808-2R7_
FL160808-3R3_
FL160808-3R9_
FL160808-4R7_
FL160808-5R6_
FL160808-6R8_
FL160808-8R2_
FL160808-100_
FL160808-120_
L
(uH)
0.047
0.068
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
Tol.
M (±20%)
M (±20%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
K (±10%)
Q Min.
10
10
15
15
15
15
15
15
15
15
15
15
15
15
35
35
35
35
35
35
35
35
35
35
35
35
30
30
Test Freq.
(MHz)
50
50
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
4
4
4
2
2
SRF Min.
(MHz)
260
250
240
205
180
165
150
136
125
110
105
95
90
85
75
65
60
55
50
45
40
35
33
22
20
18
17
15
DCR Max.
(Ω)
0.30
0.30
0.50
0.50
0.60
0.60
0.80
0.80
0.85
1.00
1.35
1.55
1.70
2.10
0.60
0.80
0.80
0.95
1.15
1.35
1.55
1.70
2.10
1.55
1.70
2.10
1.85
2.10
I rms.
Max.
(mA)
50
50
50
50
50
50
50
50
35
35
35
35
35
35
25
25
25
25
15
15
15
15
15
5
5
5
3
3

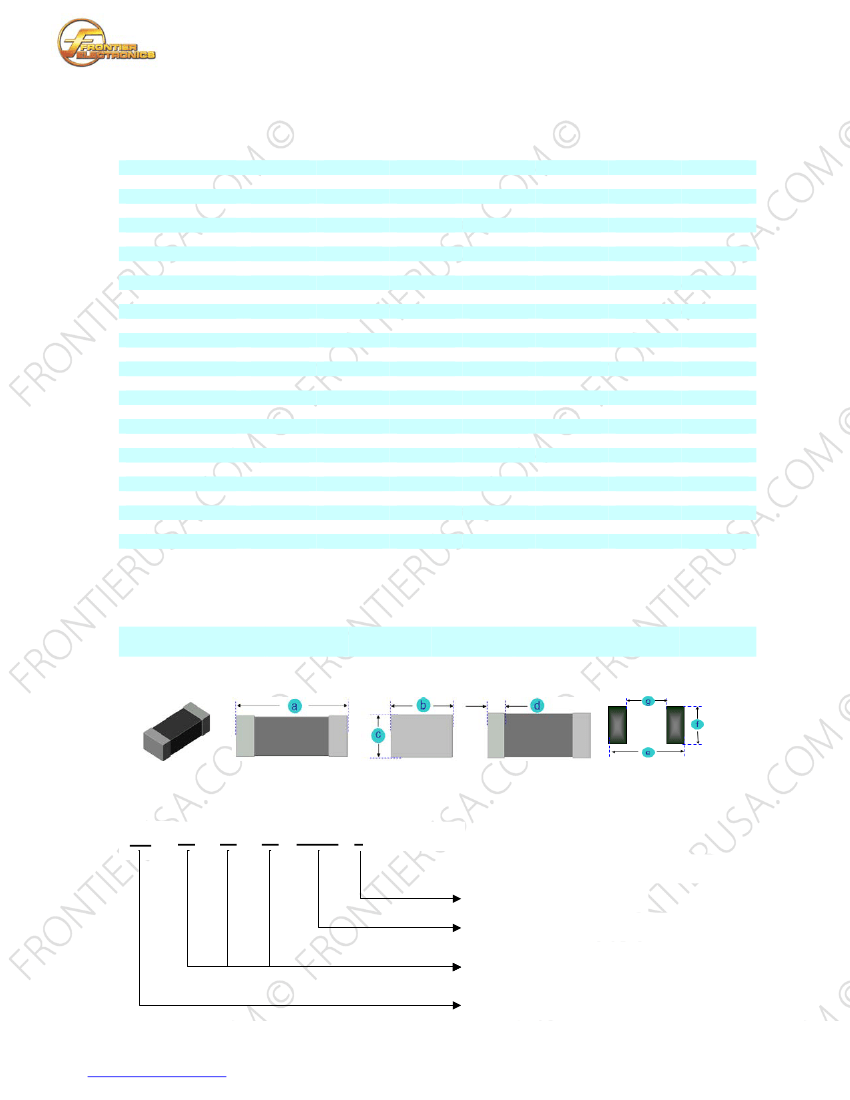

B. Dimensions: mm (Inch)
Series
FL160808
Tol.
a
1.6
(0.063)
±0.2
(0.008)
b
0.8
(0.031)
±0.2
(0.008)
c
0.8
(0.031)
±0.2
(0.008)
d
0.3
(0.012)
±0.2
(0.008)
e
2.80
(0.110)
Typ.
f
1.00
(0.039)
Typ.
g
0.60
(0.024)
Typ.
C. Part Number Key:
FL
16
08
08
-XXX _
TOLERANCE
INDUCTANCE
DIMENSIONS:
LENGTH (a) x WIDTH (b) x THICKNESS (c)
FAMILY: FL
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
FL160808 (0603) Series
SMD MULTILAYER FERRITE CHIP INDUCTORS
Rev. A
D. General Information
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
P/N: FL160808-xxx_, “FL160808” = Size Type, “xxx” = Inductance, “_” = Tolerance.
Tolerance “_” : M: ± 20%, K: ±10%
The product’s material: Ferrite.
Excellent solder ability and high heat resistance for either flow or reflow soldering.
Monolithic structures for highly reliable surface mount applications.
No cross coupling between inductors due to magnetic shield. Ideal for high-density installation.
Superior Q characteristics guaranteed over the wide frequency and allow high frequency application.
The completely monolithic structure gives high reliability and allows high SRF.
Both flow and IR re-flow application are possible.
Operating temperature: -40°C to +125ºC
15ºC Temperature Rise at 25ºC ambient
Inductance Range: From 0.047 uH (50mA) to 12.0uH (3mA)
SRF: From 15 MHz to 260 MHz
Unspecified values available on request.
MSL: Level 1.
E. Applications
1.
2.
3.
4.
5.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
