MSHA206N-6

Description
Rocker Switch, DPDT, On-on, Horizontal, Solder Lug Terminal, Paddle Actuator, Panel Mount,
CategoryMechanical and electronic products    switch
File Size256KB,2 Pages
ManufacturerNidec Copal Electronics
Download Datasheet Parametric Compare View All

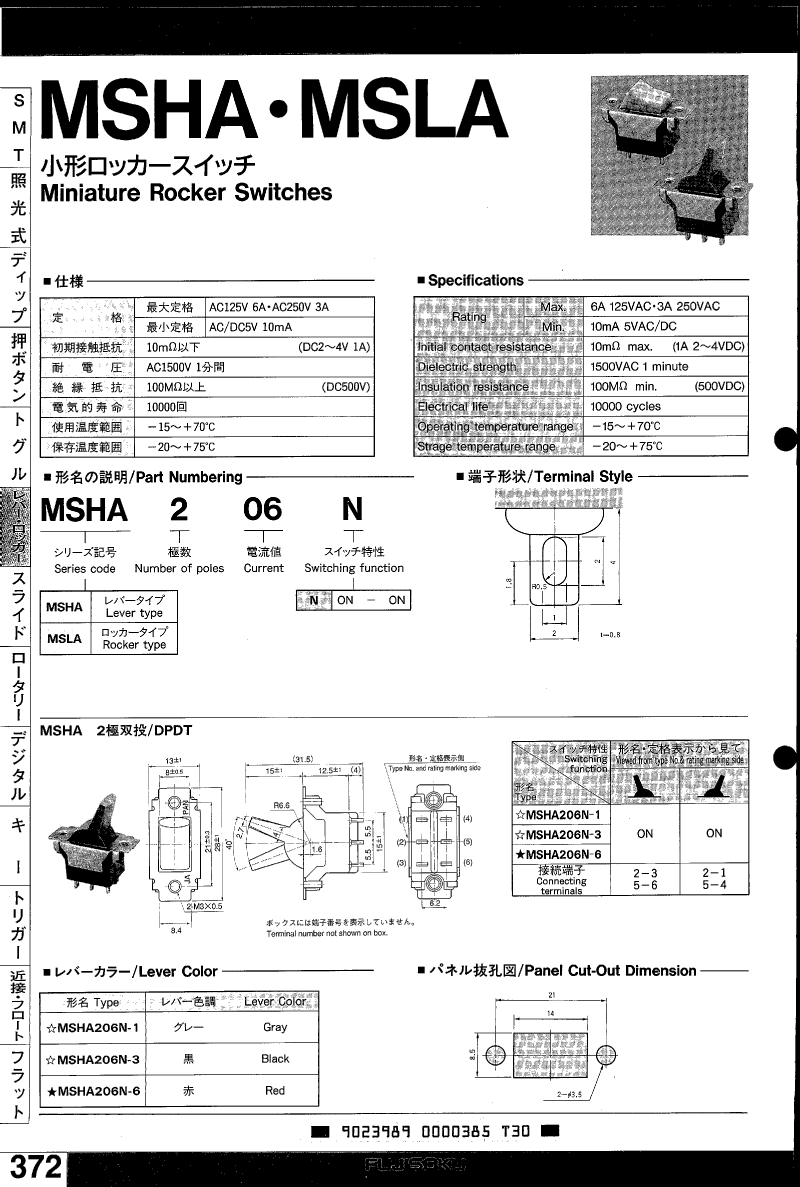

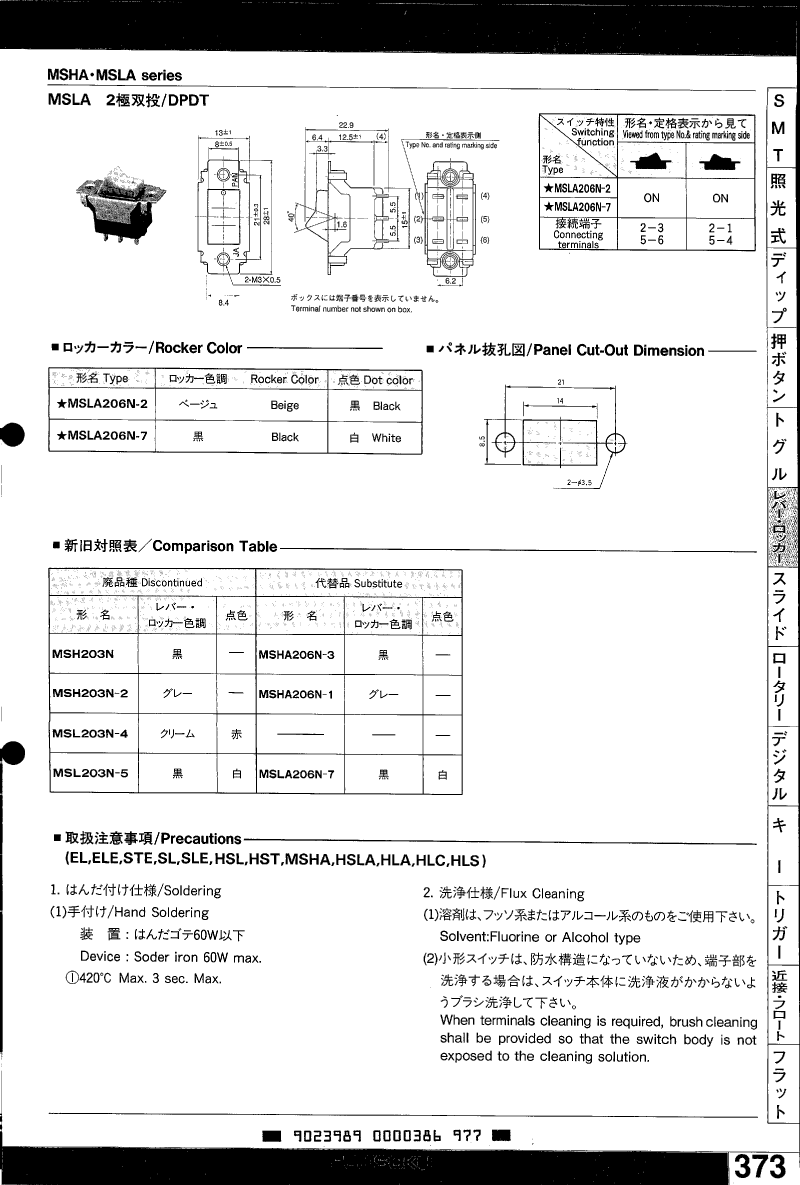

MSHA206N-6 Overview

Rocker Switch, DPDT, On-on, Horizontal, Solder Lug Terminal, Paddle Actuator, Panel Mount,

MSHA206N-6 Parametric

Parameter NameAttribute value
Objectid312032068
Reach Compliance Codeunknown
ECCN codeEAR99
Actuator colorRED
Actuator length0.591 inch
Actuator typePADDLE
Other featuresLEVER TYPE
Contact (AC) maximum rated R load6A@125VAC
Maximum contact current (AC)6 A
Contact functionON-ON
Contact resistance0.01 mΩ
contact timeBREAK-BEFORE-MAKE
Maximum contact voltage (AC)125 V
Dielectric withstand voltage1500VAC V
Electrical life10000 Cycle(s)
Insulation resistance100000000 Ω
Manufacturer's serial numberMSHA
Installation featuresPANEL MOUNT
Maximum operating temperature70 °C
Minimum operating temperature-15 °C
SolderabilityHAND
surface mountNO
Switch actionHORIZONTAL
switch functionDPDT
Switch typeROCKER SWITCH
Termination typeSOLDER LUG
WashabilitySOLVENT

MSHA206N-6 Related Products

MSHA206N-6 MSLA206N-7 MSHA206N-3
Description Rocker Switch, DPDT, On-on, Horizontal, Solder Lug Terminal, Paddle Actuator, Panel Mount, Rocker Switch, DPDT, On-on, Horizontal, Solder Lug Terminal, Rocker Actuator, Panel Mount, Rocker Switch, DPDT, On-on, Horizontal, Solder Lug Terminal, Paddle Actuator, Panel Mount,
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Actuator color RED BLACK BLACK
Actuator length 0.591 inch 0.252 inch 0.591 inch
Actuator type PADDLE ROCKER PADDLE
Contact (AC) maximum rated R load 6A@125VAC 6A@125VAC 6A@125VAC
Maximum contact current (AC) 6 A 6 A 6 A
Contact function ON-ON ON-ON ON-ON
Contact resistance 0.01 mΩ 0.01 mΩ 0.01 mΩ
contact time BREAK-BEFORE-MAKE BREAK-BEFORE-MAKE BREAK-BEFORE-MAKE
Maximum contact voltage (AC) 125 V 125 V 125 V
Dielectric withstand voltage 1500VAC V 1500VAC V 1500VAC V
Electrical life 10000 Cycle(s) 10000 Cycle(s) 10000 Cycle(s)
Insulation resistance 100000000 Ω 100000000 Ω 100000000 Ω
Manufacturer's serial number MSHA MSLA MSHA
Installation features PANEL MOUNT PANEL MOUNT PANEL MOUNT
Maximum operating temperature 70 °C 70 °C 70 °C
Minimum operating temperature -15 °C -15 °C -15 °C
Solderability HAND HAND HAND
surface mount NO NO NO
Switch action HORIZONTAL HORIZONTAL HORIZONTAL
switch function DPDT DPDT DPDT
Switch type ROCKER SWITCH ROCKER SWITCH ROCKER SWITCH
Termination type SOLDER LUG SOLDER LUG SOLDER LUG
Washability SOLVENT SOLVENT SOLVENT
Objectid 312032068 - 312032067
Other features LEVER TYPE - LEVER TYPE
