1210C Series – SMD WIRE WOUND CERAMIC CHIP INDUCTORS
Rev. A
A. Electrical Specifications:
P/N
L
(nH)
L Test Freq.
(MHz)
Tol.
Q Min.
Q Test Freq.
(MHz)
SRF Min.
(MHz)
DCR Max.
(Ω)
I rms.
Max.(mA)
1
st
Color
2
nd
Color
3
rd
Color
1210C-4N7_
1210C-5N6_
1210C-10N_
1210C-12N_
1210C-15N_
1210C-18N_
1210C-22N_
1210C-27N_
1210C-33N_
1210C-39N_
1210C-47N_
1210C-56N_
1210C-68N_
1210C-82N_
1210C-91N_
1210C-R10_
1210C-R12_
1210C-R15_
1210C-R18_
1210C-R22_
1210C-R27_
1210C-R33_
1210C-R36_
1210C-R39_
1210C-R47_
1210C-R56_
1210C-R68_
1210C-R82_
1210C-1R0_
1210C-1R2_
1210C-1R5_
1210C-1R8_
1210C-2R2_
1210C-3R3_
4.7
5.6
10
12
15
18
22
27
33
39
47
56
68
82
91
100
120
150
180
220
270
330
360
390
470
560
680
820
1000
1200
1500
1800
2200
3300
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
50
50
50
50
50
50
50
50
25
25
25
7.96
7.96
7.96
7.96
7.96
K, J
K, J
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
50
50
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
50
50
50
50
50
50
50
50
45
45
45
45
45
25
1000
1000
500
500
500
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
100
100
100
100
100
100
100
100
50
50
50
50
25
6000
5500
4000
3400
3200
2800
2300
2000
1800
1800
1600
1500
1300
1200
1100
1100
900
800
760
760
660
650
500
600
550
470
450
400
340
320
300
280
260
140
0.06
0.08
0.06
0.06
0.06
0.06
0.08
0.08
0.08
0.08
0.08
0.10
0.10
0.10
0.10
0.10
0.12
0.18
0.21
0.27
0.33
0.37
0.63
0.63
0.69
0.90
1.05
1.45
2.10
2.40
2.70
3.50
3.80
10
600
600
600
600
600
600
600
600
600
600
600
600
600
600
1000
500
500
500
500
500
500
500
600
500
400
400
400
350
280
250
220
180
150
50
Yellow
Green
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Yellow
Green
Blue
Gray
White
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Orange
Yellow
Green
Blue
Gray
Brown
Brown
Brown
Brown
Red
Orange
Violet
Blue
Black
Red
Green
Gray
Red
Violet
Orange
White
Violet
Blue
Gray
Red
Brown
Black
Red
Green
Gray
Red
Violet
Orange
Blue
White
Violet
Blue
Gray
Red
Black
Red
Green
Gray
Red
Orange
Black
Black
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Orange
Orange
Orange
Orange
Orange
Orange
B. Dimensions: mm (Inch)
Series
1210C
Tol.
a
3.42
(0.135)
Max.
b
2.8
(0.110)
Max.
c
2.3
(0.091)
Max.
f
2.3
(0.091)
Typ.
g
1.02
(0.040)
Typ.
h
2.2
(0.087)
Typ.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
3
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
1210C Series – SMD WIRE WOUND CERAMIC CHIP INDUCTORS
Rev. A
C. Color coding:
1.
2.
3.
Parts are marked with 3 color dots. The table below shows the significance of each color.
Dots 1 and 2 indicate the inductance in nano-Henries.
Dot 3 indicates number of zeroes to be added.
0 = Black
1 =
Brown
2 =
Red
3 =
Orange
4 =
Yellow
5=Green
6=Blue
7 =
Violet
8 =
Gray
9 =
White
D. General Information:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
1210C-xxx_: “1210C” = Size Type, “C” = Gold Plated pad, “xxx” = Inductance.
Tolerance “_”: K: ± 10%, J: ± 5%, G: ± 2%.
Product material: Ceramic.
Small and lightweight surface mounting type.
High Q at high frequency & High self-resonance frequency.
For 15ºC Temperature Rise at 25ºC ambient.
Inductance & Q measured with HP4291B Impedance Analyzer.
SRF measured using the HP8720D or HP8753E Network Analyzer.
DCR measured using the 16502 milliohm meter.
Operating temperature: -40°C to +125ºC.
This series has no color code due to the size is small.
Inductance and Current Range: From 10 nH (1000mA) to 4700 nH (260 mA)
SRF: From 90 MHz to 4100 MHz
For 15ºC Temperature Rise at 25ºC ambient
MSL: Level 1.
E. Applications:
1.
2.
3.
4.
5.
6.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
RF Filters

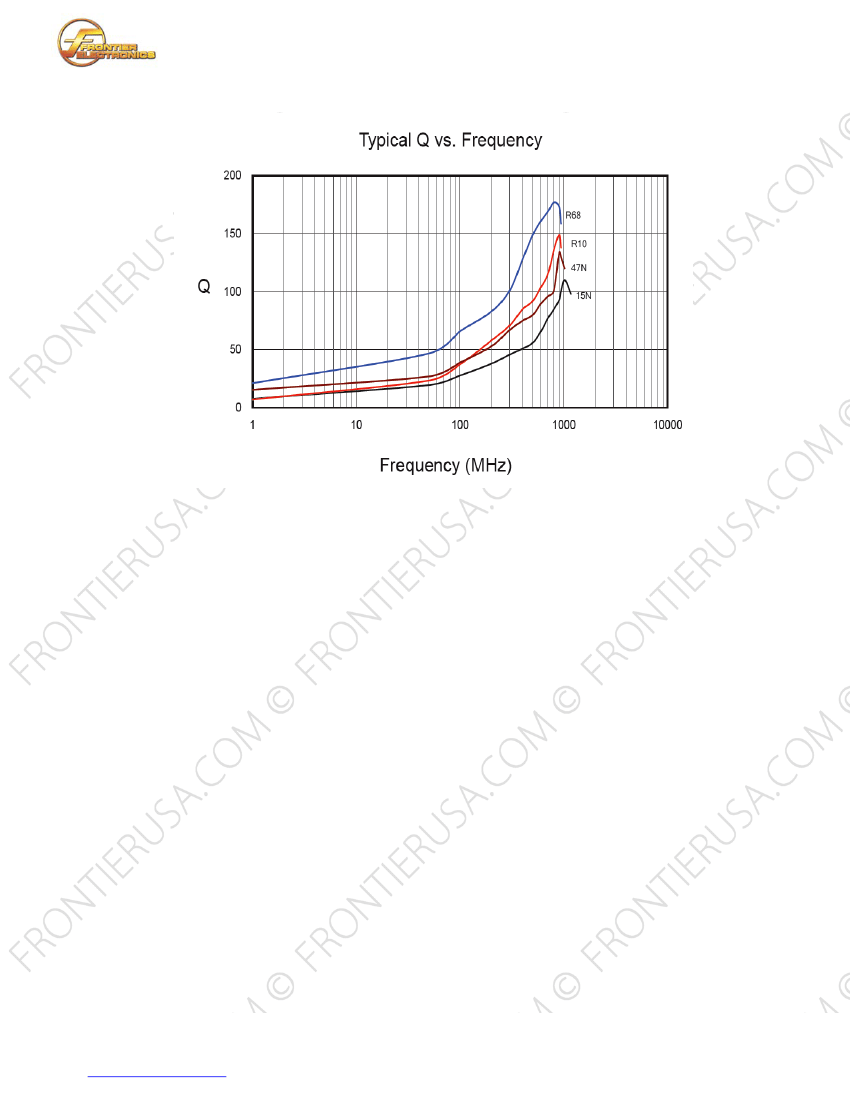

F. Characteristics Curve:
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
3
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
1210C Series – SMD WIRE WOUND CERAMIC CHIP INDUCTORS
Rev. A
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
3
of
3
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
