CSN105D Series
SMD WIRE WOUND POWER INDUCTORS (UNSHIELDED)
Rev. A
A. Electrical Specifications:
P/N
CSN105D-100M
CSN105D-120M
CSN105D-150M
CSN105D-180M
CSN105D-220M
CSN105D-270M
CSN105D-330M
CSN105D-390M
CSN105D-470K
CSN105D-560K
CSN105D-680K
CSN105D-820K
CSN105D-101K
CSN105D-121K
CSN105D-151K
CSN105D-181K
CSN105D-221K
CSN105D-271K
CSN105D-331K
CSN105D-391K
CSN105D-471K
CSN105D-561K
CSN105D-681K
CSN105D-821K
Marking
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
Inductance
(μH)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
Test Freq.
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
10
10
10
10
10
10
10
10
10
10
10
10
DCR Max.
(Ω)
0.06
0.07
0.08
0.09
0.10
0.11
0.12
0.14
0.17
0.19
0.22
0.25
0.35
0.40
0.47
0.63
0.73
0.97
1.15
1.30
1.48
1.90
2.25
2.55
Rated Current
(A)
2.60
2.45
2.27
2.15
1.95
1.76
1.50
1.37
1.28
1.17
1.11
1.00
0.97
0.89
0.78
0.72
0.66
0.57
0.52
0.48
0.42
0.33
0.28
0.24

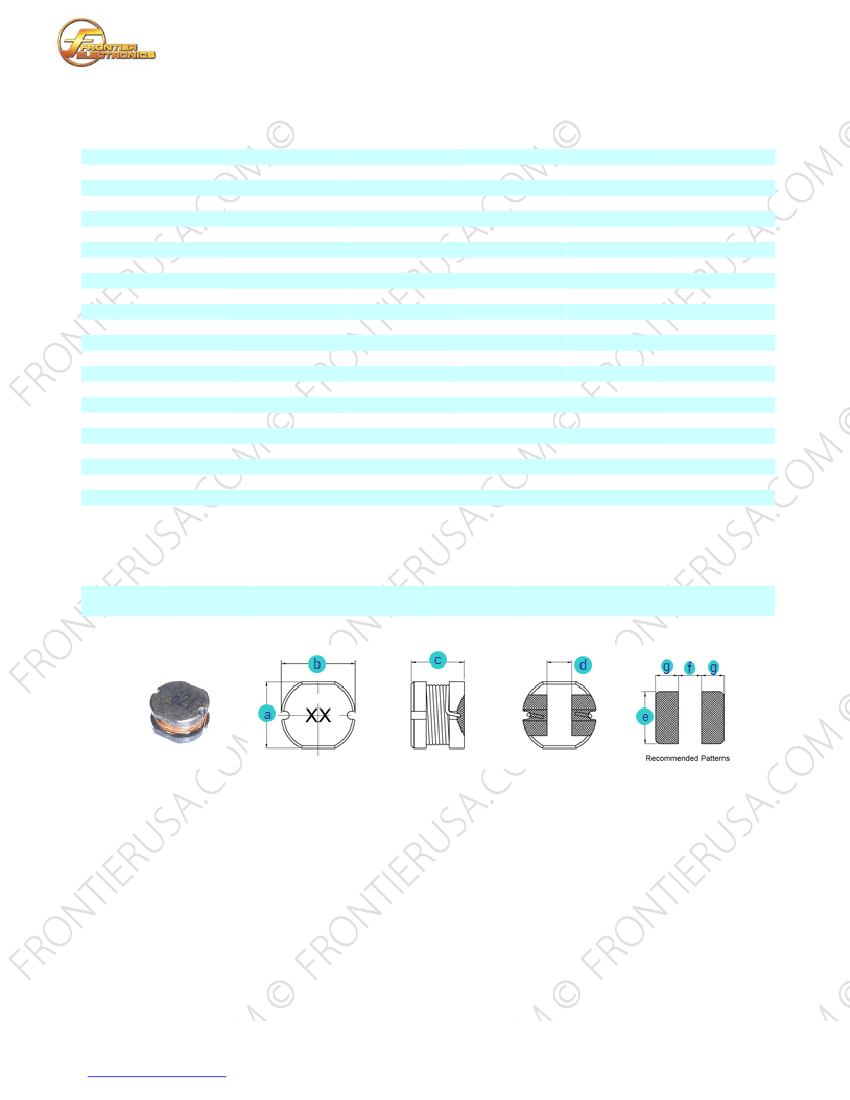

B. Dimensions: mm (Inch)
Series
CSN105D
Tol.
a
9.0
(0.354)
±0.4
(0.016)
b
10.0
(0.394)
±0.4
(0.016)
c
5.4
(0.213)
±0.4
(0.016)
d
2.2
(0.087)
Typ.
e
9.5
(0.374)
Typ.
f
2.5
(0.098)
Typ.
g
3.75
(0.148)
Typ.
C. General Information:
1.
2.
3.
4.
5.
6.
7.
8.
9.
CSN105D-xxx_, “CSN105D” = P/N, “xxx” = Inductance, “_” = Tolerance.
Tolerance “_”: M: ± 20%, L= ± 15%, K = ±10%.
Operating temperature range: -30ºC to +100ºC (Including self-heating).
Storage temperature: -40ºC to +85ºC.
Inductance measured using the HP4284A and Chroma1320 & 3302.
DCR measured using Chroma 16502 milliohm meter.
Inductance drop no more than 10% of initial value at rated current, temperature rise ∆t < 40ºC.
Inductance and Current range: From 10.0 µH (2.60A) to 820.0 µH (0.24A).
MSL: Level 1.
D. Applications:
1.
2.
3.
4.
5.
6.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
PDA, LCD, DVD, BRP, HD
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
CSN105D Series
SMD WIRE WOUND POWER INDUCTORS (UNSHIELDED)
Rev. A

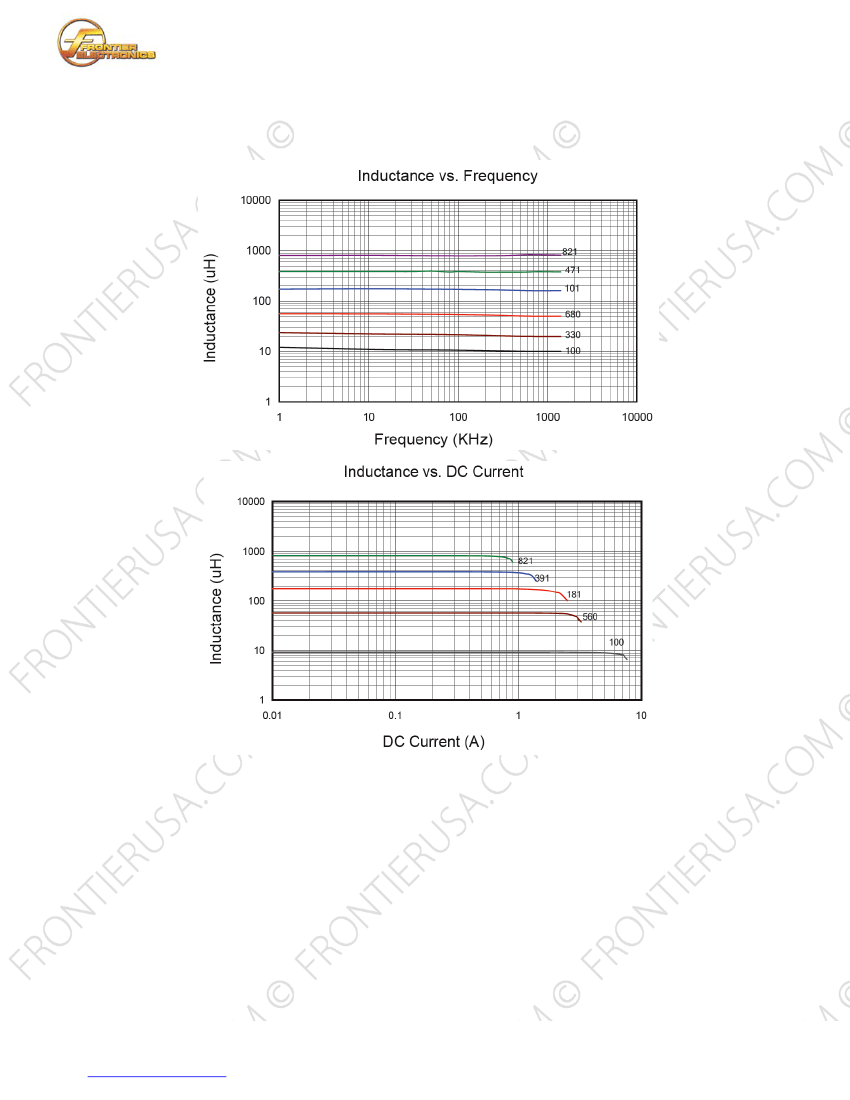

E. Characteristics Curve:
