7461116 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 7461116

Preview

7461116: Description16 CONTACT(S), POWER CONNECTOR, SOLDER; CategoryThe connector; File Size234KB，1 Pages; ManufacturerETC2

Download Datasheet Parametric View All

7461116 Overview

16 CONTACT(S), POWER CONNECTOR, SOLDER

7461116 Parametric

Parameter Name	Attribute value
Connector type	RECTANGULAR POWER CONNECTOR
Contact materials	COPPER ALLOY
Total number of contacts	16
Processing package description	ROHS AND REACH COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Contact surface matching	TIN
Contact coated terminals	TIN
According to DIN	NO
empty shell	NO
Filter characteristics	NO
Comply with IEC	NO
jesd_609_code	e3
Manufacturer Series	7461116
Meet MIL	NO
hybrid connection	NO
Options	GENERAL PURPOSE
Terminal type	SOLDER

Preview

Download Datasheet

View All

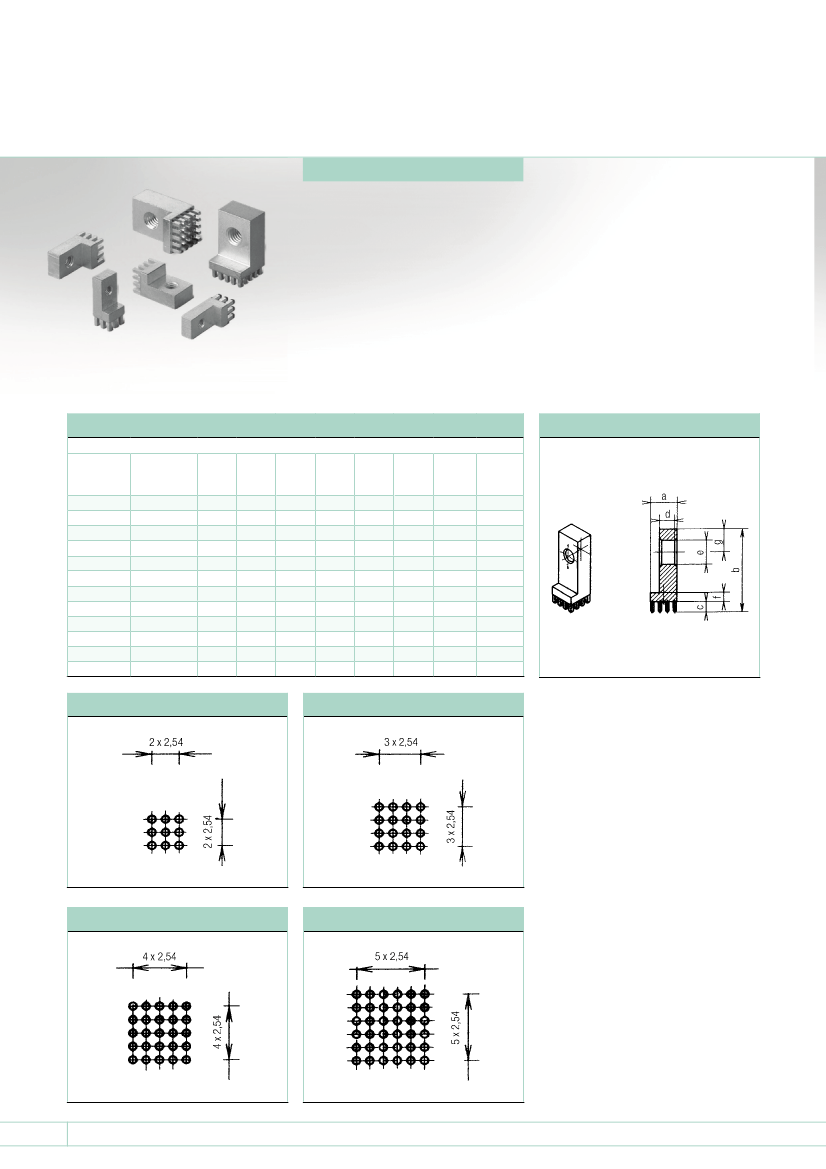

Power Elements 90°

with full plain Pin-Plate

Characteristics

Prepared hole diameter:

Final hole diameter

for HAL surface

Final diameter for

chemical surfaces (e.g. tin)

Not suitable for soldering

Available with hole or threads

1.60 mm

1.45 mm ±0.05 mm

1.475 mm ±0.05 mm

Dimensions (mm)

Power Elements

Order Code

Four corners

a

(mm)

7

9

13

16

Pins

b

(mm)

17.5

23.5

28.5

c

(mm)

3.5

d

(mm)

4

5

8

10

e

M3

3.2

M4

4.2

M5

5.2

M6

6.2

M8

8.2

M 10

10.2

f

3

g

5

8

10

9

16

25

36

Format

Type

I

J

K

L

Dimensions

746 106 6

746 111 0

746 111 1

746 106 7

746 111 2

746 111 3

746 111 4

746 111 5

746 106 8

746 111 6

746 111 7

746 106 9

Illustration of hole

I

Illustration of hole

J

Illustration of hole

K

Illustration of hole

L

142

www.we-online.com

02/11
