BP2500A1310BT BAND PASS FILTER SPECIFICATION
PRODUCT FEATURES
1.
2.
3.
Surface mount band pass filter with a small size of 3.2 X 2.5 X 1.5 mm, RoHS compliant.
Provide low insertion loss and high rejection rate.
Highly stable under temperature and humidity changes.
Rev. A
RF CHARACTERISTICS
P/N BP2500A1310BT
Frequency range
Insertion Loss
VSWR
Impedance
Specification
2400 - 2500 MHz
1.8 dB max
2.0 max
50 Ω
30dB @ 900 MHz
Attenuation (min.)
30dB @ 1850 MHz
20dB @ 2100 MHz
30dB @ 4800 MHz
Operating temperature range
-40°C to +85°C

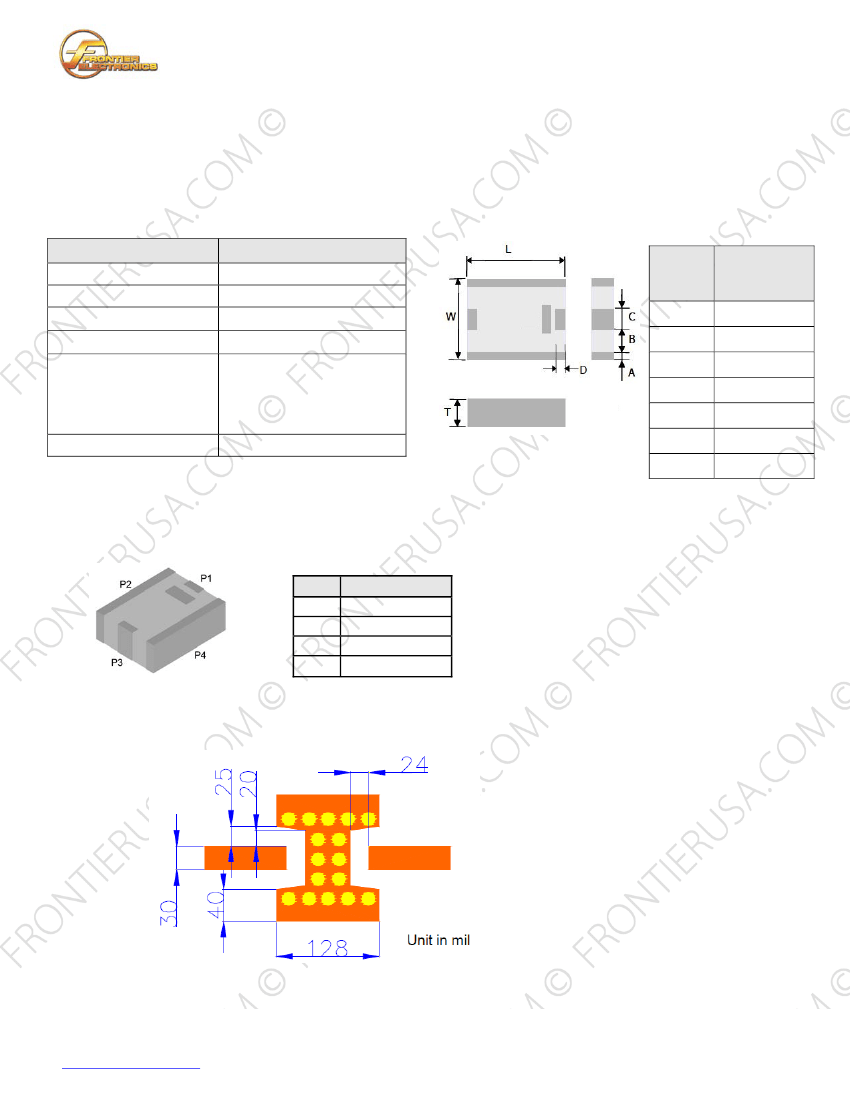

PHYSICAL DIMENSIONS
Symbol
L
W
T
A
B
C
D
Dimension
(mm)
3.20 ± 0.20
2.50 ± 0.20
1.50 ± 0.10
0.40 ± 0.20
0.60 ± 0.20
0.70 ± 0.20
0.20 ± 0.15
TERMINAL CONFIGURATION
PIN
P1
P2
P3
P4
Definition
Input/Output
GND
Output/Input
GND
PCB DESIGN/LAYOUT CONSIDERATION
Note:
- Design trace width to be 50Ω impedance.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
BP2500A1310BT BAND PASS FILTER SPECIFICATION

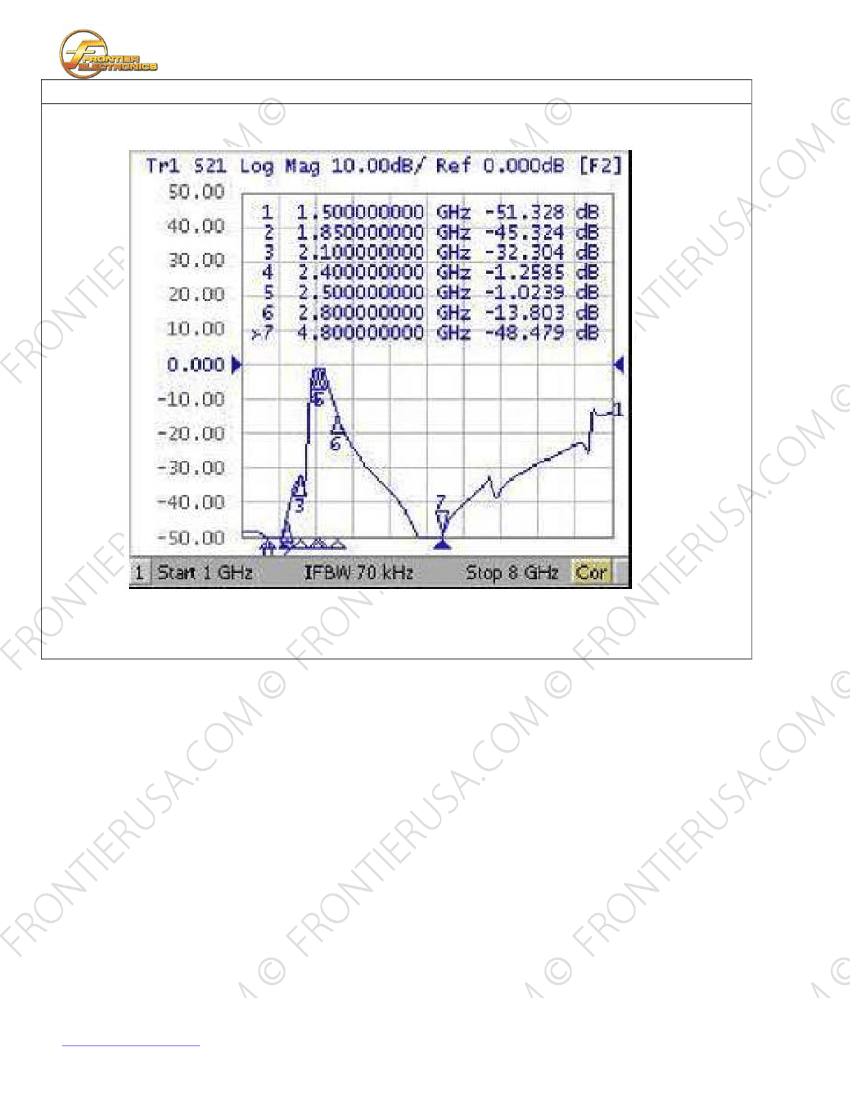

Typical RF Performance
Rev. A
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
