BFC-10-P-SG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BFC-10-P-SG

BFC-10-P-SG: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking, Plug; CategoryThe connector The connector; File Size152KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BFC-10-P-SG Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking, Plug

BFC-10-P-SG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166978359
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.187 inch
subject depth	0.215 inch
body length	0.6 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	BFC-XX
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	10

Preview

Download Datasheet

View All

Optional strain relief

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Housing material:

Insulation resistance:

Withstanding:

Operating temperature:

1 amp

Brass, phosphor bronze

Gold flash over nickel

PBT +30% glass fiber, UL94V-0

1,000 megohms min.

500VAC for 1 min.

-45°C to +85°C

Dimensions

Pos. A (mm/in)

B (mm/in)

6 11.25 0.443 5.00 0.197

8 13.25 0.522 7.00 0.276

10 15.25 0.600 9.00 0.354

12 17.25 0.679 11.00 0.433

14 19.25 0.758 13.00 0.512

16 21.25 0.837 15.00 0.591

20 25.25 0.994 19.00 0.748

22 27.25 1.073 21.00 0.827

24 29.25 1.152 23.00 0.906

26 31.25 1.230 25.00 0.984

30 35.25 1.388 29.00 1.142

34 39.25 1.545 33.00 1.229

40 45.25 1.781 39.00 1.535

44 49.25 1.939 43.00 1.693

50 55.25 2.175 49.00 1.929

60 65.25 2.569 59.00 2.323

64 69.25 2.726 63.00 2.480

68 73.25 2.884 67.00 2.638

C (mm/in)

4.00 0.157

6.00 0.236

8.00 0.315

10.00 0.394

12.00 0.472

14.00 0.551

18.00 0.709

20.00 0.787

22.00 0.866

24.00 0.945

28.00 1.102

32.00 1.260

38.00 1.496

42.00 1.654

48.00 1.890

58.00 2.283

62.00 2.441

66.00 2.598

RoHS compliant

Rev.

Description

Date

Approved

Series

Positions

Polarization

Plating

BFC

Series

Positions IDC socket, See chart P=Polarized

TN=Tin

BSR

2mm pitch

NP=Not polarized SGXX=Selective gold

2mm strain See chart

GDXX=Gold

relief

XX=Flash if blank; 3, 5, 10, 15, 30µ” gold

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

05/22/07

05/22/07 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BFC-XX-P-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

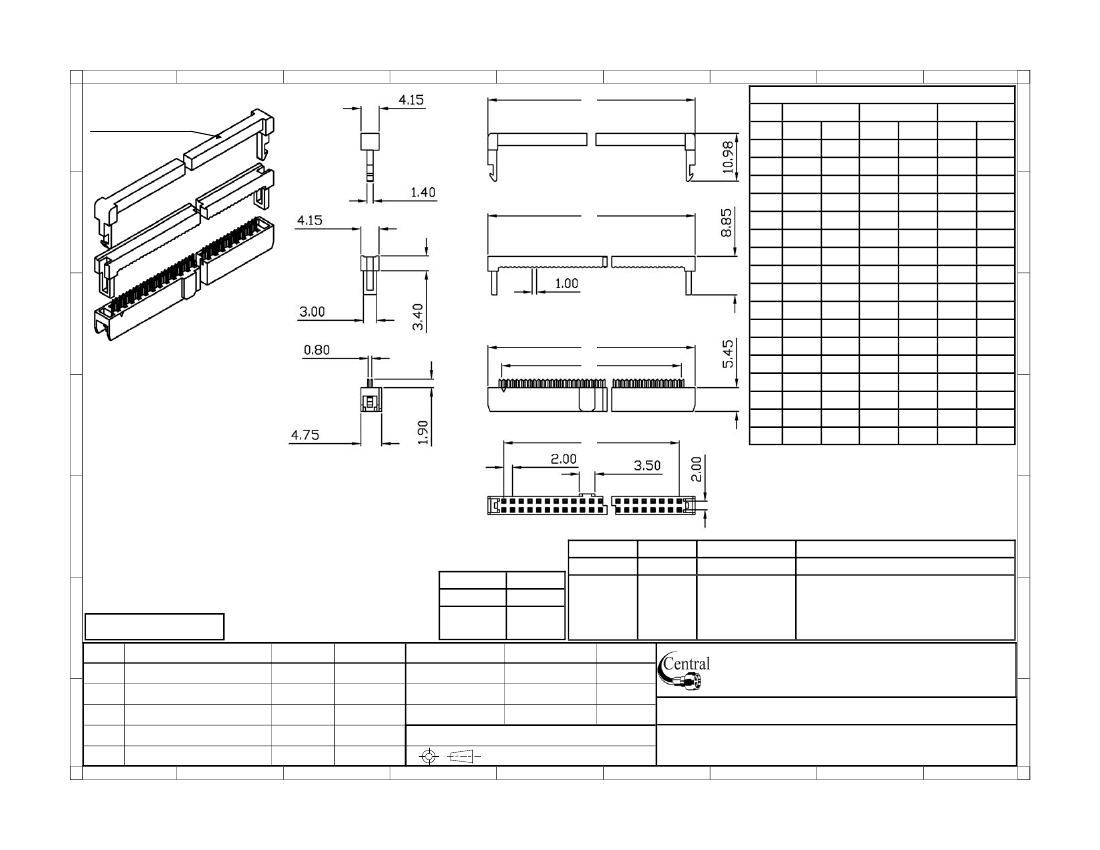

Description: IDC socket, 2mm pitch, with polarization
