BRS-02-LPA-68-K-SG-SM-CP-PPL datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BRS-02-LPA-68-K-SG-SM-CP-PPL

Preview

BRS-02-LPA-68-K-SG-SM-CP-PPL: DescriptionBoard Connector, 68 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size158KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BRS-02-LPA-68-K-SG-SM-CP-PPL Overview

Board Connector, 68 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug

BRS-02-LPA-68-K-SG-SM-CP-PPL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304487103
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.157 inch
subject depth	0.087 inch
body length	2.677 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	BRS
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.207 mm
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	68

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

2Amp

Phosphor Bronze

20mΩ Max.

Polyester, UL 94V-0

Nylon 6T

Insulation Resistance: 1000MΩ Max.

Withstanding:

500V AC/DC

Operating Temp:

-40ºC to +105ºC

SPECIFICATIONS

Current Rating:

Contact Material:

Contact Resistance:

Insulation Material:

A

B

C

D

E

Series

BRS

2mm Receptacle

Strip

F

Rows

02

02=2 rows

Profile

Positions

XX

LPA=2.2mm

06-80

Others Available

Tail Footprint

X

J=5.3mm

K=6.5mm

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

Plating

XX

TN=Tin

SG=Selective Gold

GD=Gold (std)

Options

XX

SM=Surface Mount

CP=Centering Pins

PPL=Pick & Place Pads

F

Date

07/26/07

07/26/07 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

BRS-02-LPA-XX-K-XX-XX

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

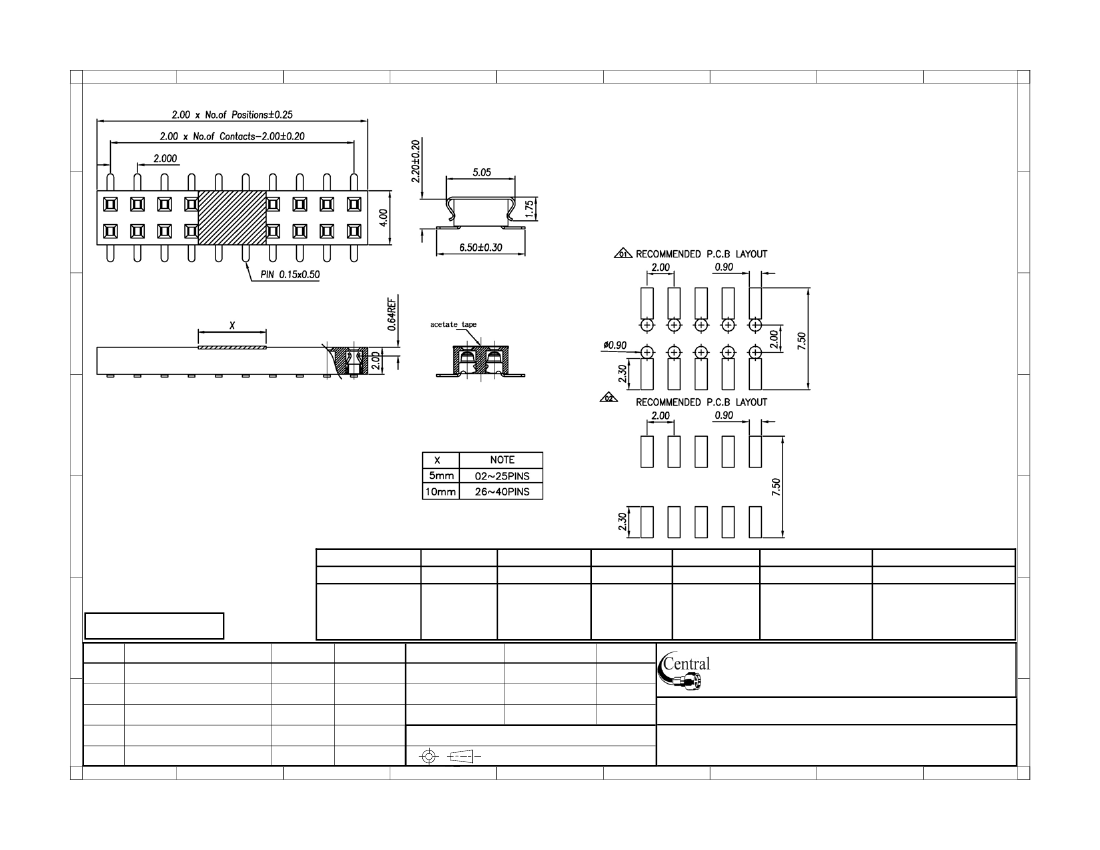

Description: Receptacle strip, dual row 2mm x 2mm, surface mount

G

Recommended Resources

DC voltage converter circuit

Power indicator circuit

555RS trigger

Aide brand RZL40-15GW2 electric water heater circuit diagram
