JS-V-1396-A-19-SG-NL datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> JS-V-1396-A-19-SG-NL

Preview

JS-V-1396-A-19-SG-NL: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Natural Insulator, Plug; CategoryThe connector The connector; File Size126KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

JS-V-1396-A-19-SG-NL Overview

Board Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Natural Insulator, Plug

JS-V-1396-A-19-SG-NL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1167053854
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.409 inch
subject depth	0.448 inch
body length	2.96 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
Manufacturer's serial number	JS-V-1396-A
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.165 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	19

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

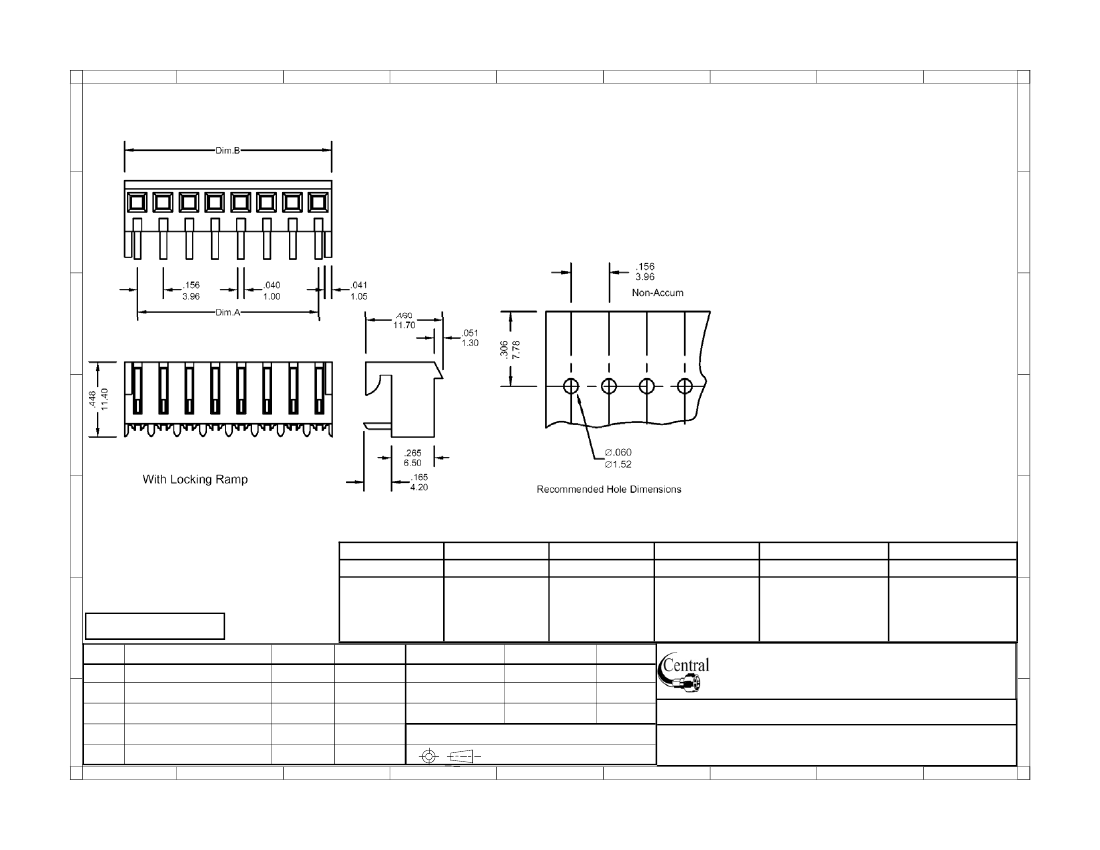

SPECIFICATIONS

Temperature Range:

Withstanding:

Voltage Rating:

Current Rating:

Contact Resistance:

Insulation Resistance:

PC Board Thickness:

Housing Material:

•

-40ºC ~ +105ºC

1500V AC/min

250V AC. Max.

7A AC. DC

20mΩ max.

5000 MΩ min

.063” [1.6mm]

UL 94V-0 Nylon 6/6, Natural

A

B

Designed for parallel and perpendicular board

stacking, connection

Mates with .045” [1.14mm] square pins

C

D

Dim A = (Pos -1) X .156

Dim B = Dim A + .152

D

E

Series

JS-V

Pluggable

Connector

F

RoHS compliant

Rev.

Description

Date

Approved

Type

Style

1396

X

.156” board mount A=Right Angle

connector

B=Bottom Entry

C=Top Entry

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Positions

XX

02-25

Plating

XX

TN=Tin

SGXX=Selective Gold

XX=Flash if blank, 5,

10, 15, 30 µ”

Options

XX

Blank=Locking Ramp

NL=No Locking Ramp

F

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

JS-V-1396-A-XX-XX-XX

G

7

8

9

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: .156” (3.96) center line PCB mount connector

1

2

3
