B011-2830-203-Z: DescriptionIC Socket, DIP28, 28 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder; CategoryThe connector socket; File Size158KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

B011-2830-203-Z Overview

IC Socket, DIP28, 28 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

B011-2830-203-Z Parametric

Parameter Name	Attribute value
Objectid	304388424
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.4 inch
subject depth	0.201 inch
body length	1.4 inch
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP28
Dielectric withstand voltage	1000VAC V
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	B011
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	28
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

Preview

Download Datasheet

View All

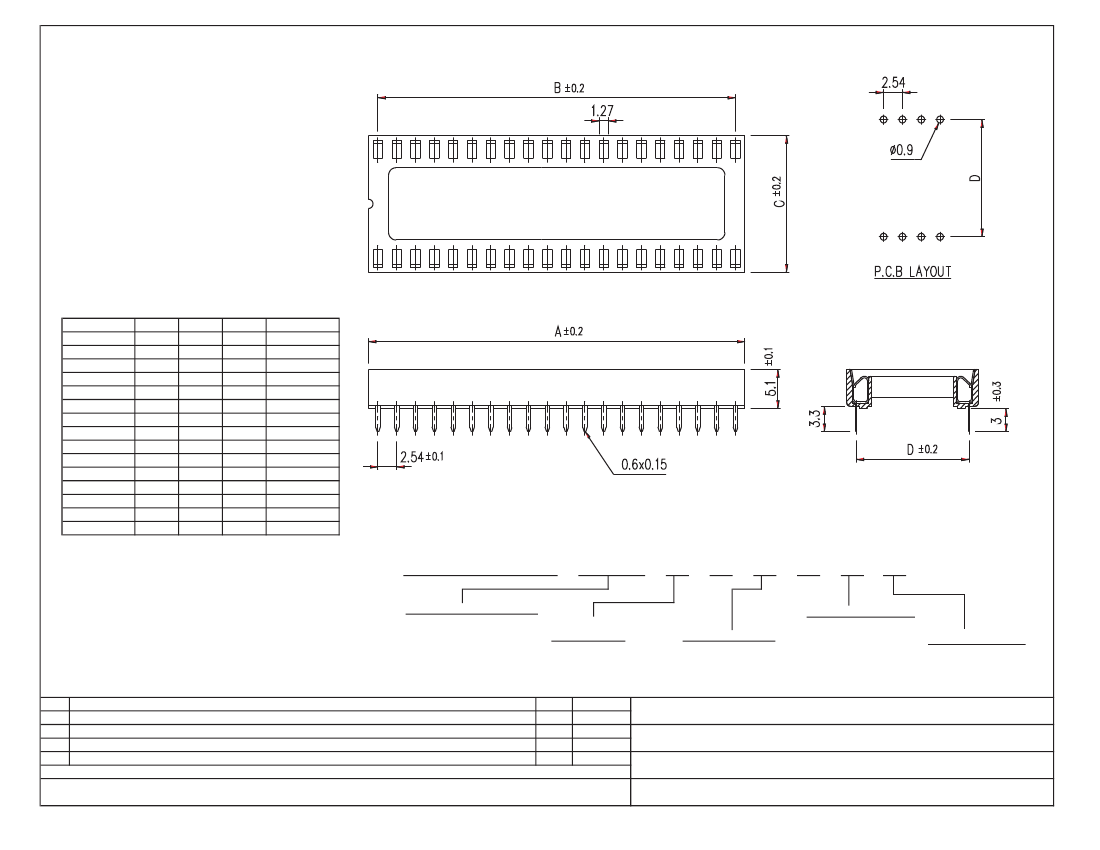

DIMENSION(mm)

CONTACTS

10.16

17.78

20.32

22.86

25.40

30.48

30.56

40.64

50.80

53.34

60.96

81.26

7.62

15.24

17.78

20.32

22.86

27.94

33.02

38.10

48.25

50.80

58.42

78.74

10.16

17.78

10.16

17.78

10.16

17.78

26.02

7.62 (0.3")

15.24 (0.6")

7.62 (0.3")

15.24 (0.6")

7.62 (0.3")

15.24 (0.6")

22.86 (0.9")

HOW TO ORDER:

NUMBER OF CONTACTS:

08 thru 64

ELECTRICAL:

CURRENT: 1A

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 1000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 1000VAC FOR 1 MIN.

OPERATING TEMPERATURE: -55° C TO +105° C

MATERIAL:

CONTACT: PHOSPHOR BRONZE

INSULATOR: PBT & 30% GLASS FIBER (UL94V-0)

Rev

Issued

A Revised for RoHS Compliance

SCALE

DRAWING No. B011-1

TOL. DEC.

.X +/- 0.35

MAT'L

.XX +/- 0.25

.XXX +/-

FINISH

ANGLE +/-

D DIMENSION

DIP SPACING:

3 - 7.62mm (0.300")

6 - 15.24mm (0.600")

9 - 22.86mm (0.900")

Apv.

S.E.

G.T.

Date

4/15/97

11/01/05

FRAME VERSION:

1 - W/ BAR

2 - W/OUT BAR

PLATING OVERALL:

0 - TIN PLATED

1 - GOLD FLASH

RoHS COMPLIANT

3 - 10u" GOLD

4 - 15u" GOLD

5 - 30u" GOLD

SMP TECHNOLOGY, INC.

DIP Socket, 2.54mm Pitch, Stamped Pin

UNIT: mm

SERIES: B 0 1 1-XXXX-XXX-Z

Pg: 1
