ZHR-10

Description
10 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP, RECEPTACLE
CategoryThe connector
File Size155KB,4 Pages
ManufacturerETC
Download Datasheet Parametric View All

ZHR-10 Overview

10 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP, RECEPTACLE

ZHR-10 Parametric

Parameter NameAttribute value
Contact materialsNOT SPECIFIED
Total number of contacts10
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
OptionsGENERAL PURPOSE
Shell stylesocket
Manufacturer SeriesZH
Contact surface matchingNOT SPECIFIED
Contact coated terminalsNOT SPECIFIED
Connection TypeDual board connector
Connector male and femaleJack
collocation informationMULTIPLE MATING PARTS AVAILABLE
Installation typeCABLE
Number of load rows1
Terminal typeriveting
UL flammability code94V-0
ZH
CONNECTOR

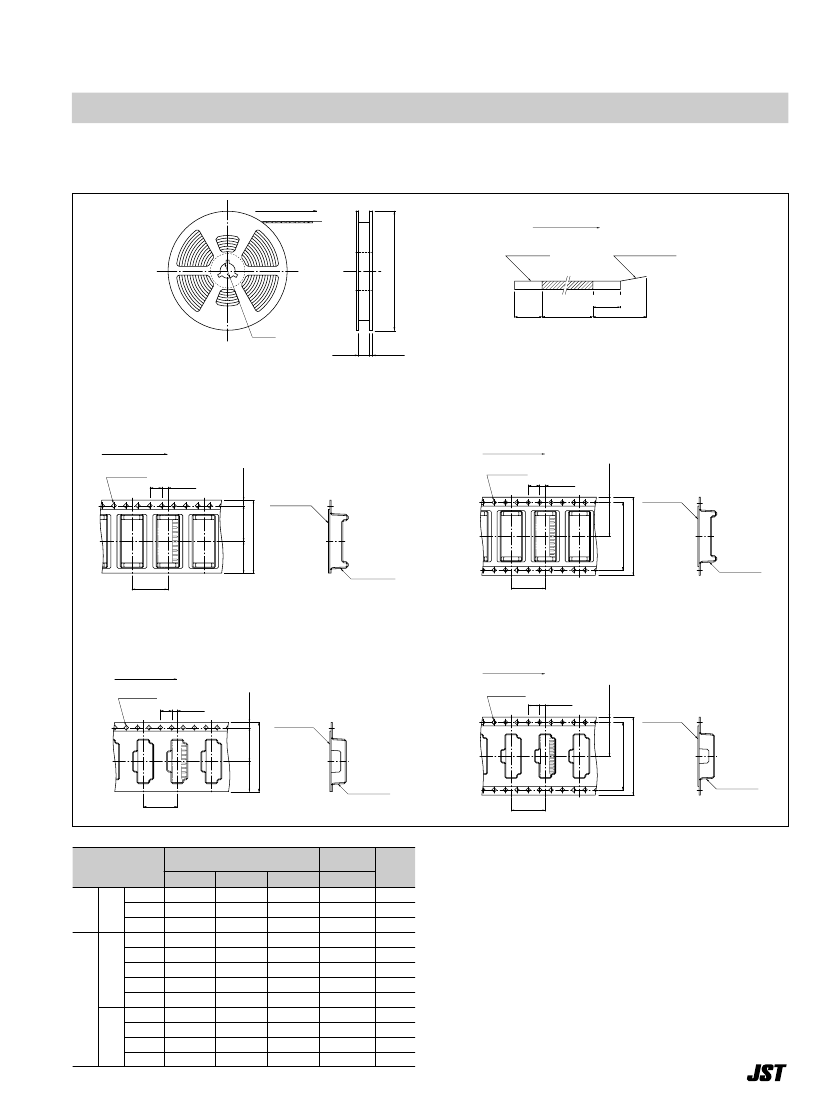

Emboss Tape
1.5mm pitch/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating: 1.0A AC, DC (AWG #26)
• Voltage rating: 50V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/20m
max.
After environmental testing/30m
max.
• Insulation resistance:
500M
min.
• Withstanding voltage: 500V AC/minute
• Applicable wire: AWG #32 to #26
• Applicable PC board thickness: 0.6 to 1.2mm,1.6mm
* RoHS compliant products are published.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.

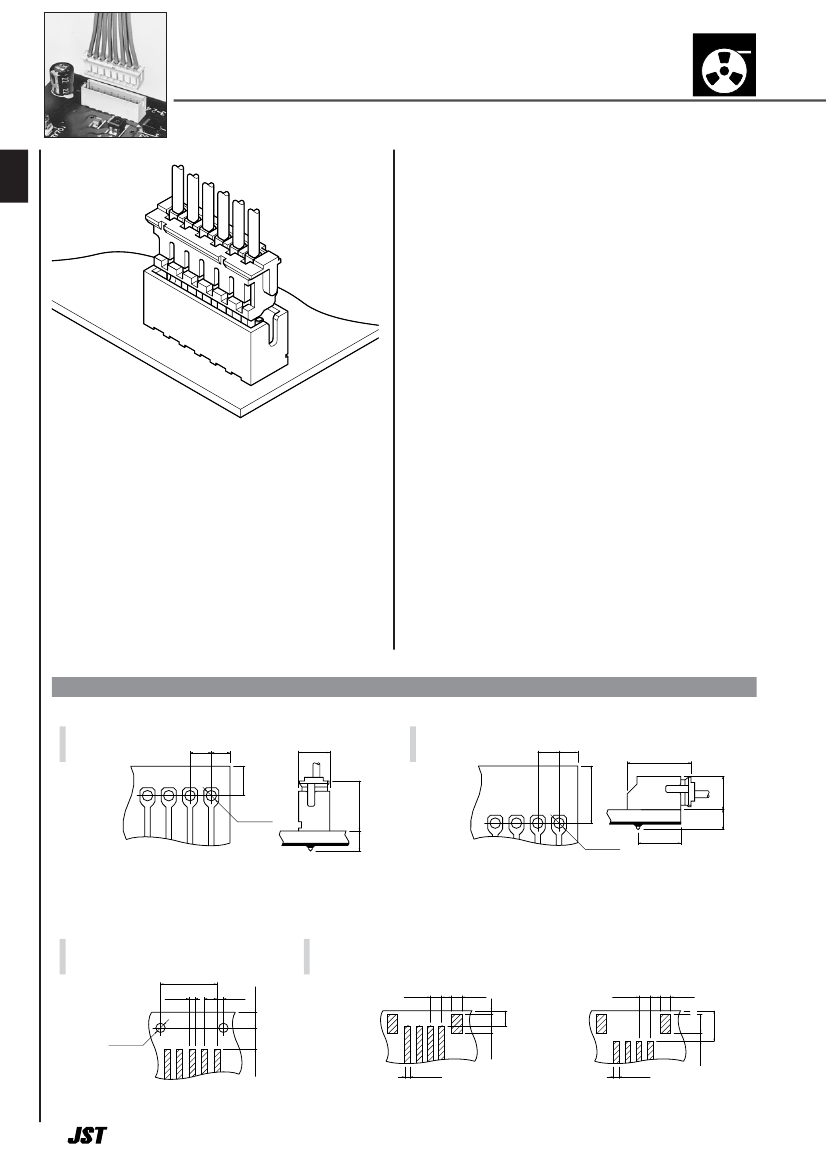

The ZH connector is very small with a
mounting height of 5.6mm and a thickness
of only 3.5mm. Contact retention lances on
the housing make insertion easier, while the
dimple at the center of the contact ensures
reliable contact with the post.
• Compact, low profile design
• Housing lances
• Reliable contact construction
• Distortion resistant construction
• Compatible with the ZR insulation
displacement connectors
Standards ––––––––––––––––––––––
1
Certified LR20812
2
R9351092
0
Recognized E60389
PC board layout and Assembly layout
Through-hole type (viewed from soldering side)
Top entry type
1.5
±0.05
1.5
min
2.2
min
3.5
Side entry type
1.5
±0.05
1.5
min
7.1
4.6
min
φ0.7
±0.03
2.7
(3.4)
φ0.7
±0.03
4.6
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimension differ according to the kind of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should
be larger. The dimensions above should serve as a guideline. Contact JST for details.
SMT type (viewed from component side)
SM2 type
Side entry type
1.5× (N-1)+0.9
SM4 type
Top entry type
2.0
min
0.7
min
1.5
±0.05
Side entry type
±0.1
1.5
±0.05
1.3
1.5
±0.1
±0.1
1.5
±0.05
1.4
1.1
±0.1
0.6
0.9
±0.05
1.9
±0.1
0.7
min
1.4
±0.1
2.0
φ1.1
+0.1
0
2.5
max
0.7
min
Note: 1. N...Number of circuits
2. Tolerances are non-cumulative:
±
0.05mm for all centers.
3. The dimensions above should serve as a guideline. Contact JST for details.
16
2.3
±0.1
4.3
2.7
3.7
(3.4)
5.6
