BL2450K06031T BALUN SPECIFICATION
PRODUCT FEATURES
1.
2.
3.
4.
Surface mount ceramic balun with a small size of 1.6 x 0.8 x 0.5 mm (0603 size).
Low insertion loss and inband amplitude/phase imbalance.
Highly stable under temperature and humidity changes.
Superior performance in a compact size, RoHS compliant.
Rev A
RF CHARACTERISTICS
P/N BL2450K06041T
Working Frequency Range
Insertion Loss (dB) Max
Unbalanced Impedance (
Ω
)
Balanced Impedance (
Ω
)
Return Loss (dB) Min.
Amplitude Balance (dB)
Phase Balance (degree)
Operation Temperature Range
Specification
2450 ± 50 MHz
1.2
50
50
9.5
2.0
180˚± 10˚
-40˚C to +85˚C

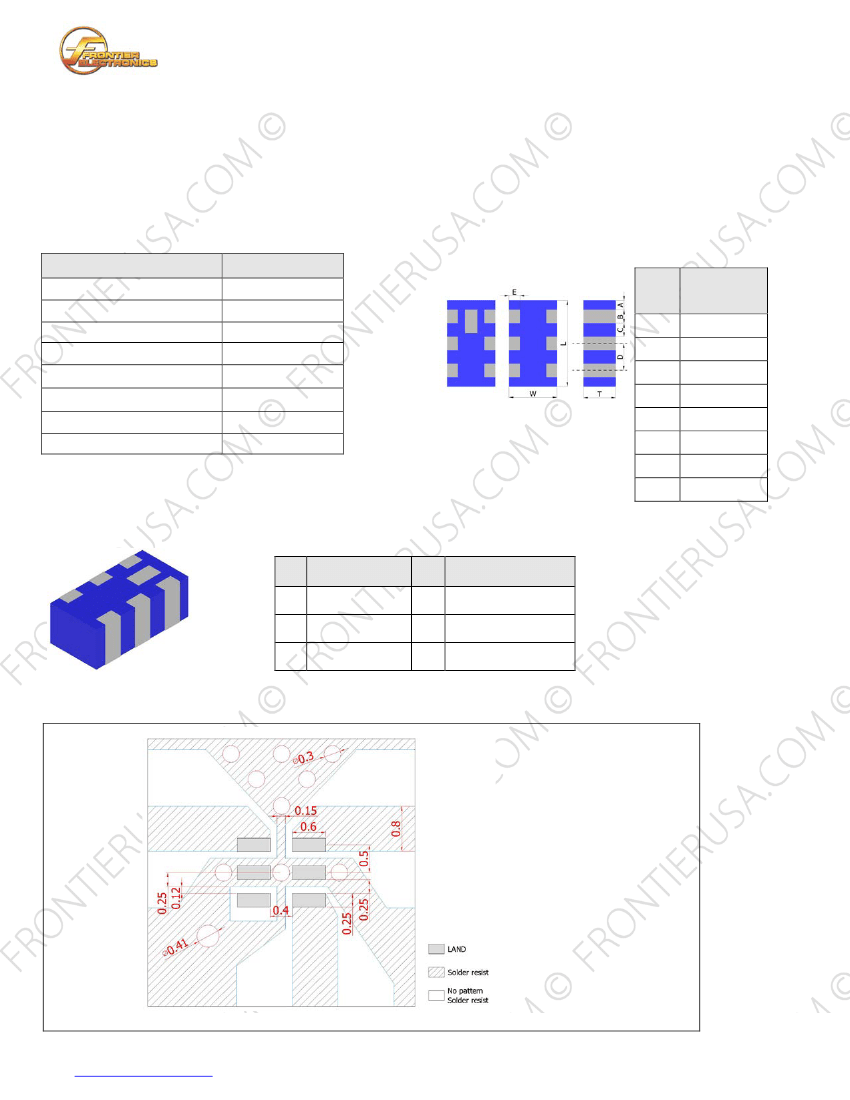

PHYSICAL DIMENSIONS
Dimension
(mm)
L
W
T
A
B
C
D
E
1.60 ± 0.15
0.80 ± 0.15
0.50 ± 0.10
0.175 ± 0.15
0.25 ± 0.15
0.25 ± 0.15
0.50 ± 0.15
0.20 ± 0.15
TERMINAL CONFIGURATION
P1
P2
P3
PIN
P1
P6
P5
P4
Definition
Unbalanced Port
DC or GND
Balanced Port
PIN
P4
P5
P6
Definition
Balanced Port
GND
NC
P2
P3
PCB DESIGN/LAYOUT CONSIDERATION
Unit : mm
Trace impedance must be 50Ω. The trace width is a dependent of PCB material and its thickness.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page: 1 of 2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
BL2450K06031T BALUN SPECIFICATION
Rev A
TEST DATA

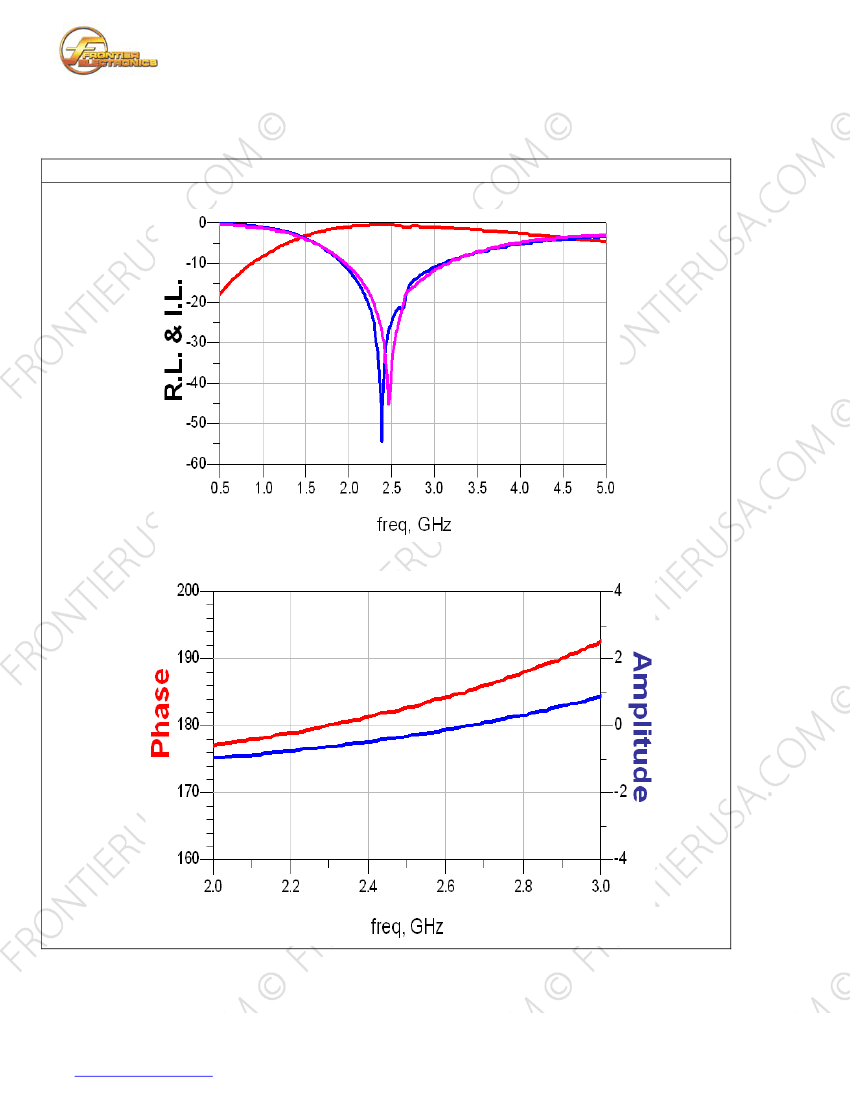

Typical RF Performance
(1). Amplitude balance
(2). Phase balance
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page: 2 of 2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
