MURS320-360
ULTRAFAST RECTIFIERS
Features
•
High reliability
•
Low leakage
•
Low forward voltage
•
High current capability
•
Ultrafast switching speed
•
High surge capability
•
Good for switching mode circuit
•
RoHS compliant package

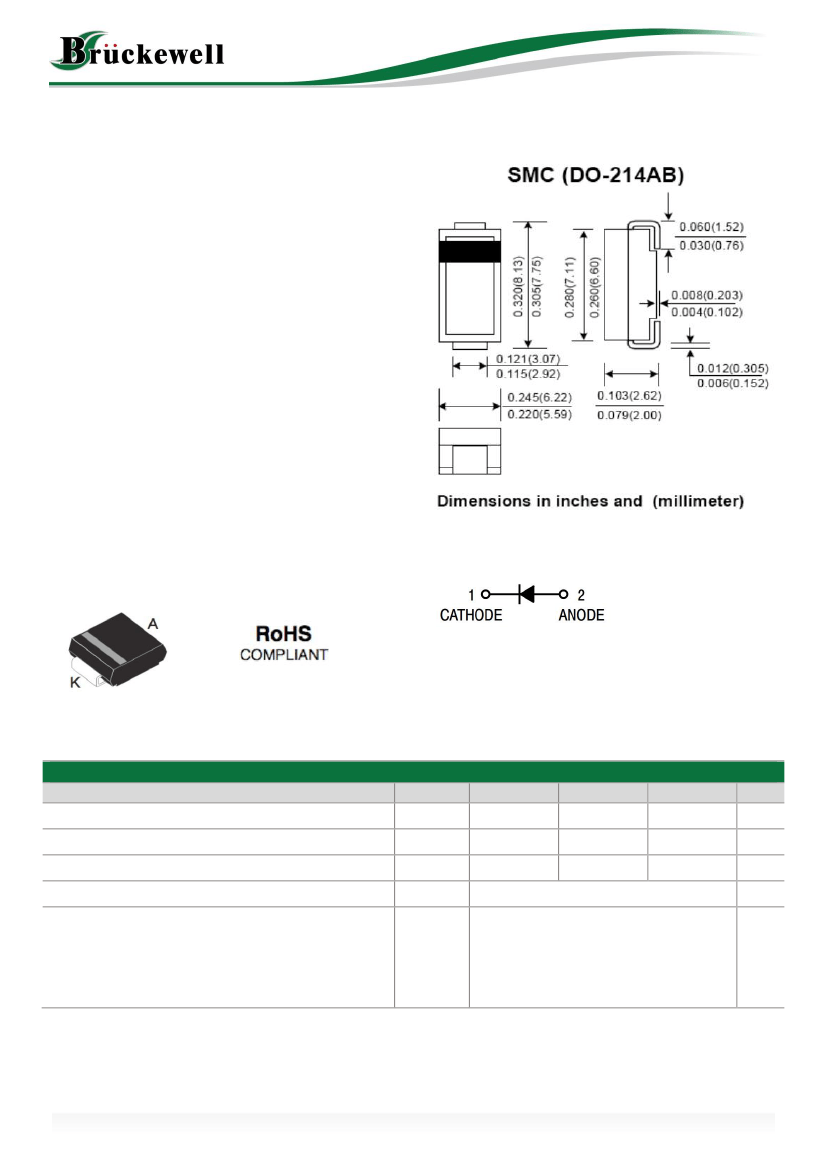

Mechanical Data
•
Case: SMC Molded plastic
•
Epoxy: UL94V-O rate flame retardant
•
Lead: Lead Formed for Surface Mount
•
Polarity: Color band denotes cathode end
•
Mounting position: Any
•
Weight: 0.229 gram
Packing & Order Information
3,000/Reel
Graphic symbol
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Maximum Ratings (Tc=25°C unless otherwise noted)
Parameter
Symbol
Maximum repetitive peak reverse voltage
Working peak reverse voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current
8.3ms single half sine-wave superimposed on IFSM
40.0 Amps
rated load (JEDEC Method)
I
FSM
75
A
V
RRM
V
RMS
V
DC
I
O(AV)
MURS320
200
140
2000
MURS340
400
280
400
3.0
MURS360
600
420
600
Unit
V
V
V
A
Publication Order Number: [MURS320-360]
©
Bruckewell Technology Corporation Rev. A -2014
MURS320-360
ULTRAFAST RECTIFIERS
Maximum Ratings (Tc=25°C unless otherwise noted)
Parameter
Maximum instantaneous forward voltage at 3.0A DC
Maximum DC reverse current TA=25°C
at rated DC blocking voltage TA=125°C
Typical junction capacitance (NOTE1)
Typical reverse recovery time (NOTE2)
Typical thermal resistance (NOTE3)
Operating junction and storage temperature range
Notes
(1) Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
(2) Reverse recovery test conditions:IF=0.5A, IR=1.0A, IRR=0.25A
(3) Thermal resistance from junction to ambient
Symbol
V
F
I
R
C
J
T
RR
R
θJA
T
J
,T
STG
35
75
-55 to +150
MURS220
0.9
5
100
15
75
MURS240
MURS260
1.3
5
100
Unit
V
μA
pF
ns
V
°C/W
Publication Order Number: [MURS320-360]
©
Bruckewell Technology Corporation Rev. A -2014
MURS320-360
ULTRAFAST RECTIFIERS
■Ratings
and Characteristic Curves

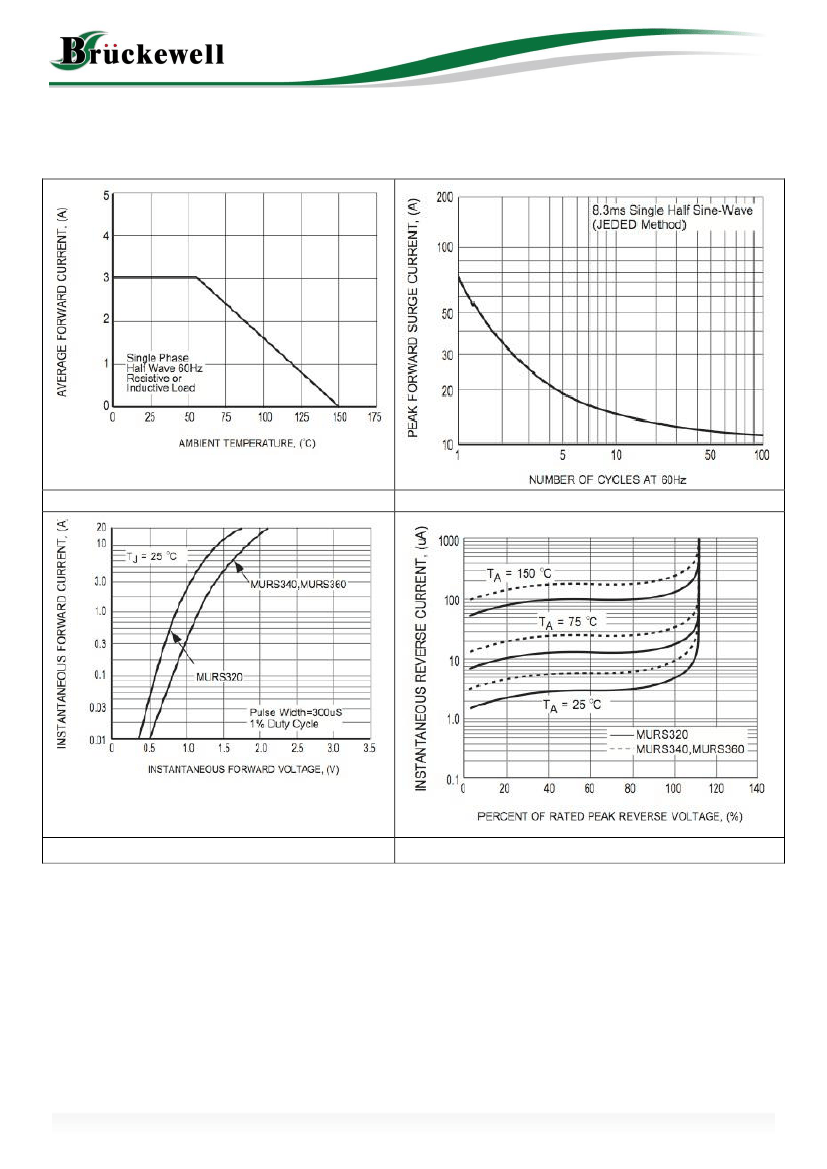

FIG.1- FORWARD DERATING CURVE
FIG.2- PEAK FORWARD SURGE CURRENT
FIG.3- TYPICAL FORWARD CHARACTERISTICS
FIG.4- TYPICAL REVERSE CHARACTERISTICS
Publication Order Number: [MURS320-360]
©
Bruckewell Technology Corporation Rev. A -2014
MURS320-360
ULTRAFAST RECTIFIERS
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE
WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Bruckewell Technology Inc., its affiliates, agents, and employees, and all persons acting on its or
their behalf (collectively, “Bruckewell”), disclaim any and all liability for any errors, inaccuracies or
incompleteness contained in any datasheet or in any other disclosure relating to any product.
Bruckewell makes no warranty, representation or guarantee regarding the suitability of the products
for any particular purpose or the continuing production of any product. To the maximum extent
permitted by applicable law, Bruckewell disclaims
(i) Any and all liability arising out of the application or use of any product.
(ii) Any and all liability, including without limitation special, consequential or incidental damages.
(iii) Any and all implied warranties, including warranties of fitness for particular purpose,
non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on
Bruckewell’s knowledge of typical requirements that are often placed on Bruckewell products in
generic applications.
Such statements are not binding statements about the suitability of products for a particular
application. It is the customer’s responsibility to validate that a particular product with the properties
described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance
may vary over time.
Product specifications do not expand or otherwise modify Bruckewell’s terms and conditions of
purchase, including but not limited to the warranty expressed therein.
Publication Order Number: [MURS320-360]
©
Bruckewell Technology Corporation Rev. A -2014
