AZ23C27-51
300 mw Dual Surface Mount Zener Diodes

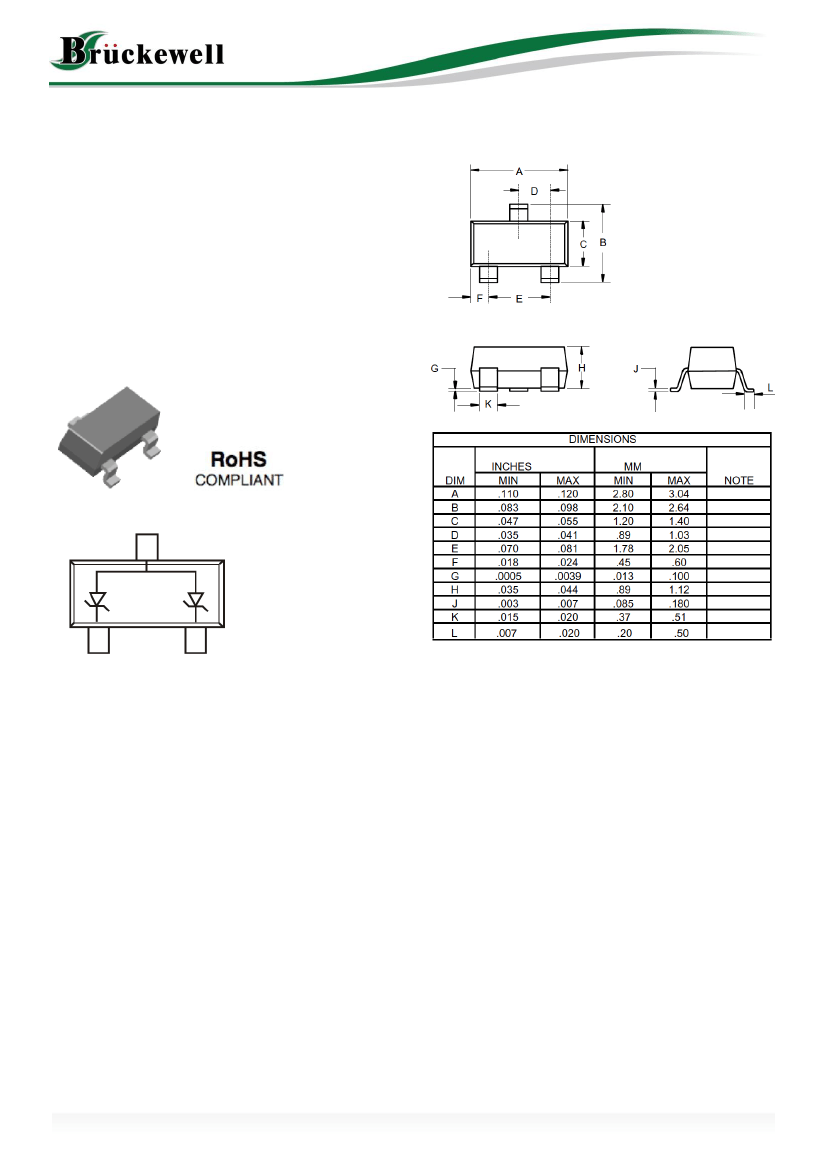

Features
•
SOT-23 surface mount package
•
300 mW power dissipation rating
•
Ideally suited for automaticinsertion
•
ΔVZ for both diodes in one case is ≤5%
•
Common cathode style available see DZ series
•
RoHS compliant package
Packing & Order Information
3,000/Reel
Graphic symbol
Publication Order Number: [AZ23C27-51]
©
Bruckewell Technology Corporation Rev. A -2014
AZ23C27-51
300 mw Dual Surface Mount Zener Diodes
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
ABSOLUTE MAXIMUM RATING (Tc=25°C unless otherwise noted)
Symbol
Parameter
Test Conditions
PD
TJ=TSTG
Power Dissipation
Junction and storage temperature range
On fiberglass substrate
Value
300
-55~+150
Unit
mW
°C
Maximum Thermal Resistance
Symbol
Parameter
RthJS
Junction ambint
Test Conditions
On fiberglass substrate
Value
420
Unit
K/W
DC CHARACTERISTICS
Type
Number
AZ23C2V7
AZ23C3V0
AZ23C3V3
AZ23C3V6
AZ23C3V9
AZ23C4V3
AZ23C4V7
AZ23C5V1
AZ23C5V6
AZ23C6V2
AZ23C6V8
AZ23C7V5
AZ23C8V2
AZ23C9V1
AZ23C10
AZ23C11
AZ23C12
AZ23C13
AZ23C15
AZ23C16
AZ23C18
AZ23C20
AZ23C22
AZ23C24
Marking
Code
KD1
KD2
KD3
KD4
KD5
KD6
KD7
KD8
KD9
KDA
KDB
KDC
KDD
KDE
KDF
KDG
KDH
KDI
KDJ
KDK
KDL
KDM
KDN
KDO
VZ
V
@IZT=5mA
2.5to2.9
2.8to3.2
3.1to3.5
3.4to3.8
3.7to4.1
4.0to4.6
4.4to5.0
4.8to5.4
5.2to6.0
5.8to6.6
6.4to7.2
7.0to7.9
7.7to8.7
8.5to9.6
9.4to10.6
10.4to11.6
11.4to12.7
12.4to14.1
13.8to15.6
15.3to17.1
16.8to19.1
18.8to21.2
20.8to23.3
22.8to25.6
ZZT
Ω
@IZT=5mA
83
95
95
95
95
95
78
60
40
10
8
7
7
10
15
20
20
25
30
40
50
50
55
80
ZZX
Ω
@IZT=1mA
500
500
500
500
500
500
500
480
400
200
150
50
50
70
70
70
90
110
110
170
170
220
220
220
TC
%/°C
-0.065
-0.060
-0.055
-0.055
-0.050
-0.035
-0.015
+0.005
+0.020
+0.030
+0.045
+0.050
+0.055
+0.065
+0.065
+0.070
+0.075
+0.080
+0.080
+0.090
+0.090
+0.090
+0.090
+0.090
VR
V
@IR=0.1uA
-
-
-
-
-
-
-
0.8
1.0
2.0
3.0
5.0
6.0
7.0
7.5
8.5
9.0
10.0
11.0
12.0
14.0
15.0
17.0
18.0
Publication Order Number: [AZ23C27-51]
©
Bruckewell Technology Corporation Rev. A -2014
AZ23C27-51
300 mw Dual Surface Mount Zener Diodes

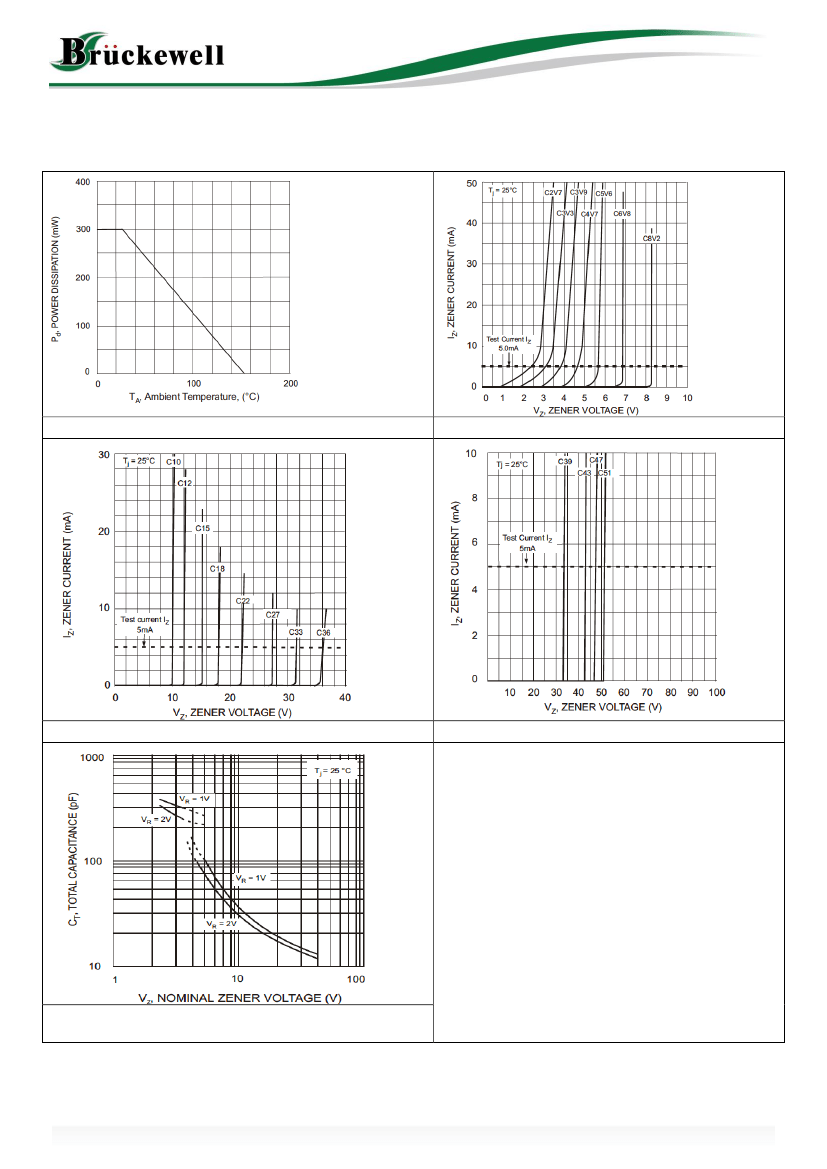

Fig 1 Power Derating Curve
