ST2060: DescriptionSCHOTTKY RECTIFIER; File Size100KB，6 Pages; ManufacturerSMC; Websitehttp://www.smc-diodes.com/

Download Datasheet Compare View All

ST2060 Overview

SCHOTTKY RECTIFIER

Preview

Download Datasheet

View All

SANGDEST

MICROELECTRONICS

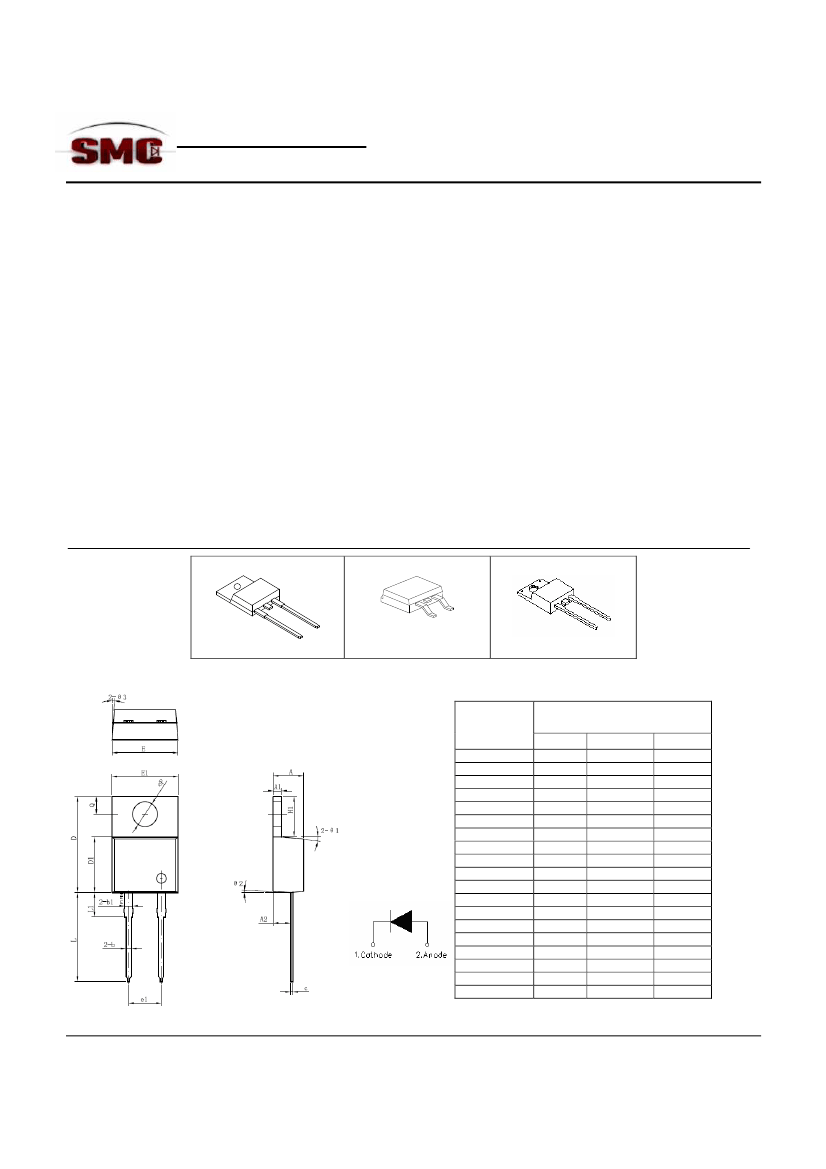

Technical Data

Data Sheet N1420, Rev. -

ST2060

STB2060

STF2060

Green Products

ST2060/STB2060/STF2060

SCHOTTKY RECTIFIER

Applications:

•

Switching power supply

Converters

Free-Wheeling diodes

Reverse battery protection

Center tap configuration

150°C T

operation

Center tap configuration

Ultralow forward voltage drop

High purity, high temperature epoxy encapsulation for enhanced

mechanical strength and moisture resistance

High frequency operation

Guard ring for enhanced ruggedness and long term reliability

This is a Pb − Free Device

All SMC parts are traceable to the wafer lot

Features:

ST2060

STB2060

STF2060

TO-220AC

D²PAK

ITO-220AC

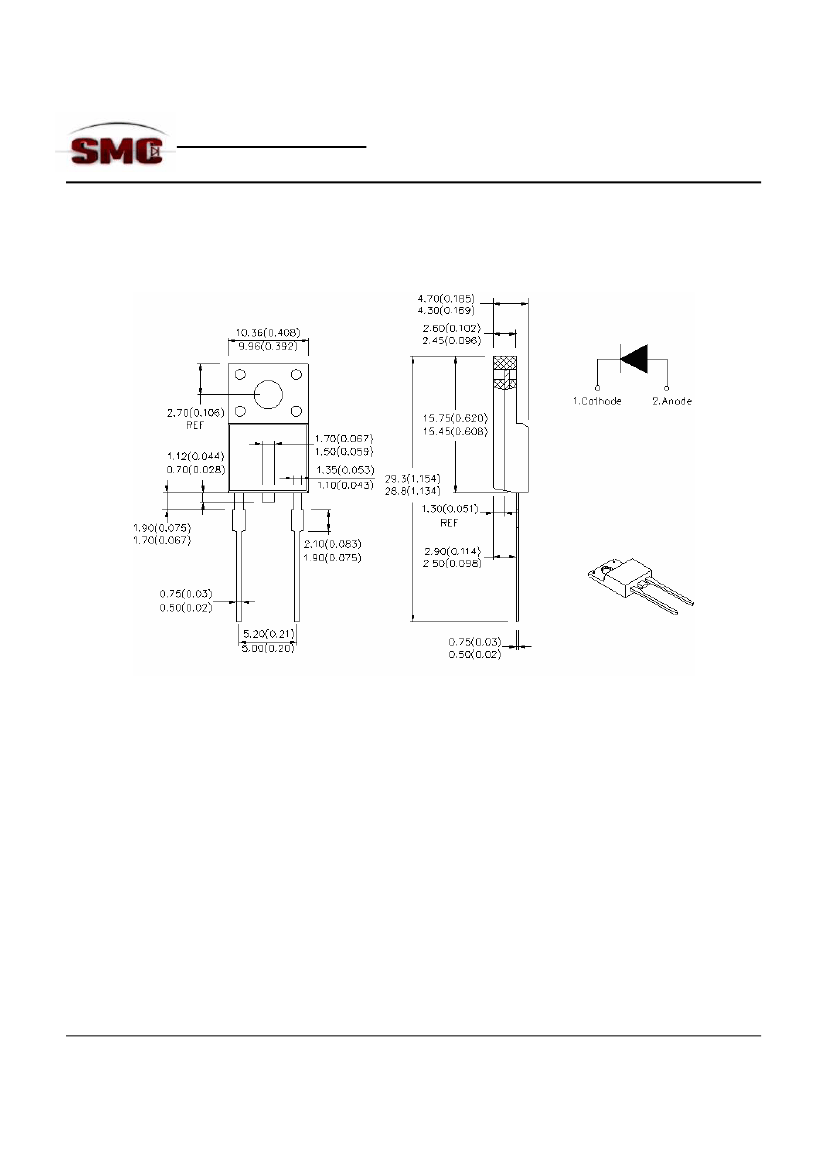

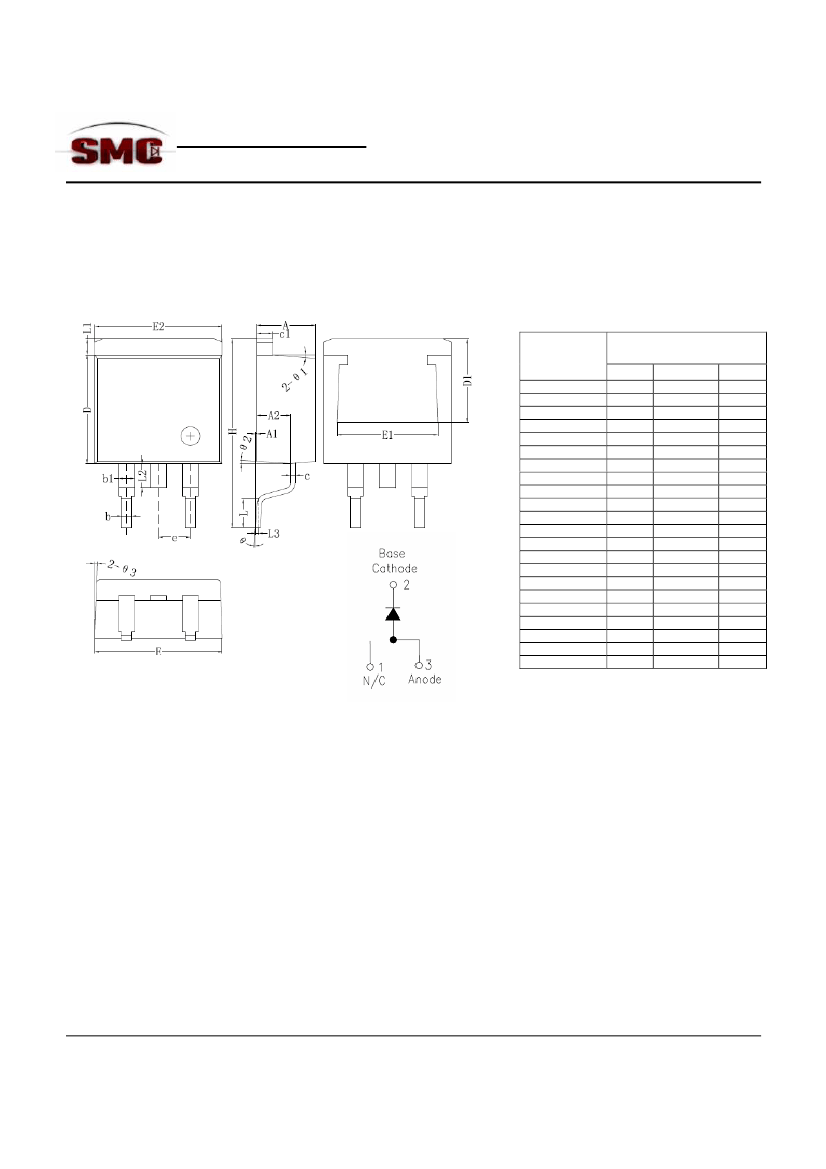

Mechanical Dimensions: In Inches / mm

Symbol

Dimensions in

millimeters

Min.

Typical

Max.

4.55

1.17

2.59

0.71

0.36

14.64

8.55

10.01

9.98

6.04

13.00

3.74

2.54

4.70

1.27

2.69

0.81

1.27

0.38

14.94

8.07

10.16

10.18

5.08

6.24

13.86

3.80

3.84

2.74

5°

4°

4.85

1.37

2.89

0.96

0.61

15.24

8.85

10.31

10.38

6.44

14.08

4.04

2.94

ΦP

Θ1

Θ2

Θ3

TO-220AC

•

FAX (86) 25-87123900

•

World Wide Web Site - http://www.sangdest.com.cn

•

E-Mail Address - sales@ sangdest.com.cn

•

Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113

(86) 25-87123907

•
