MODEL
FS-125
OPERATIONAL AMPLIFIER
w'.s tee hn olo g y today
OBS
.
WIDEBAND
PERFORMANCE
.
NO EXTERNAL COMPENSATlt
.
GOOD
DRIVE CAPABILITY

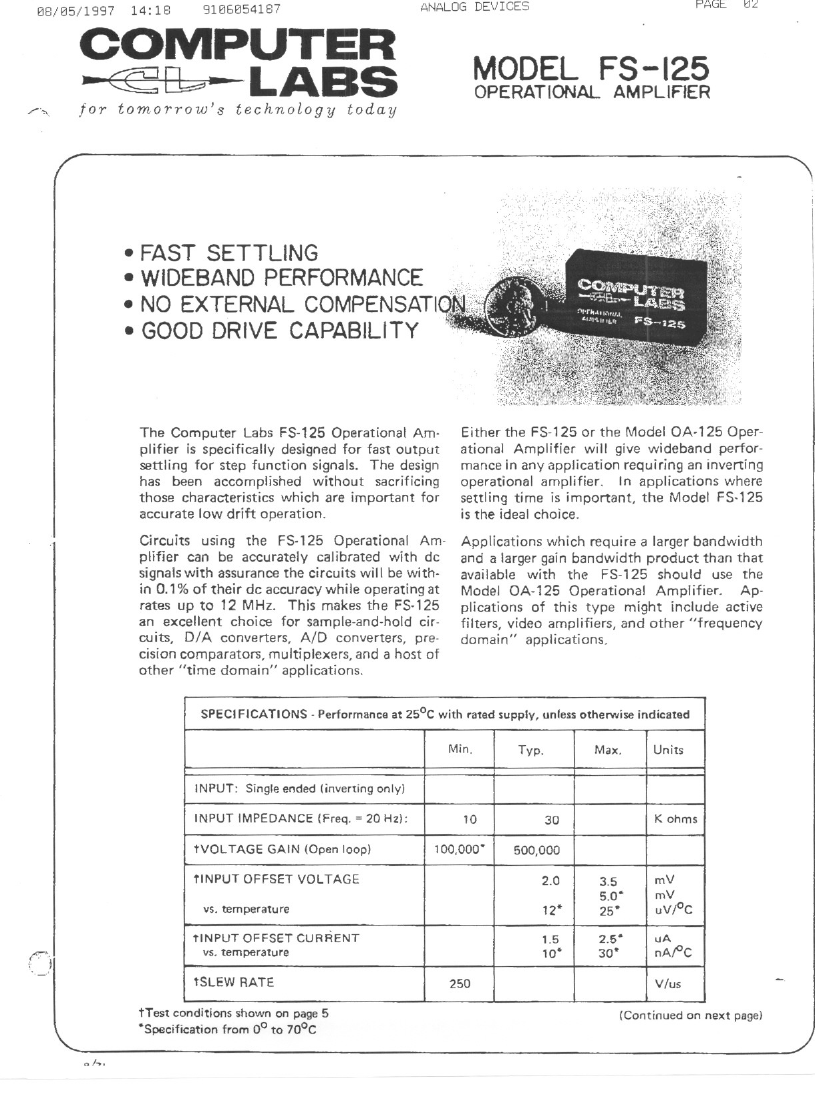

The Computer Labs FS-125 Operational Am-
plifier is specifically designed for fast output
settling for step function signals. The design
has been accomplished without sacrificing
those characteristics which are important for
accurate low drift operation.
. FAST SETTLING
Circuits using the FS-125 Operational Am.
plifier can be accurately calibrated with de
signals with assurance the circuits will be with.
in 0.1 % of their de accuracy while operating at
rates up to 12 MHz. This makes the FS-125
an excellent choice for sample-and-hold cir.
cuits, D/A converters, AID converters, pre-
cision comparators, multiplexers, and a host of
other "time domain" applications,
OLE
TE
Either the FS-125 or the Model OA.125 Oper-
ational Amplifier will give wideband perfor-
mance in any application requiring an inverting
operational amplifier. In applications where
settling time is important, the Model FS-125
is the ideal choice.
Applications which require a larger bandwidth
and a larger gain bandwidth product than that
available with the FS-125 shou Id use the
Model OA-125 Operational Amplifier. Ap-
plications of this type might include active
filters, video amplifiers, and other "frequency
domain" applications.
Min.
Typ,
Max.
Units
10
100,000"
30
500,000
2.0
12"
1.5
10.
250
3.5
5.06
25"
2.56
30.
mV
mV
uV/oC
uA
nAf'C
V/us
(Continued on next page)
K ohms
SPECIFICATIONS - Performance at 25°C with rated supply, unless otherwise indicated
INPUT: Single ended (inverting only)
INPUT IMPEDANCE (Freq. = 20 Hz):
tVOL TAGE GAIN (Open loop)
tlNPUT OFFSET VOLTAGE
vs. temperature
tlNPUT OFFSET CURRENT
vs. temperature
tSLEW RATE
tTest conditions shown on page 5
