BG145-31-A-2-0375-0180-N-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG145-31-A-2-0375-0180-N-D

BG145-31-A-2-0375-0180-N-D: DescriptionBoard Connector, 31 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug,; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG145-31-A-2-0375-0180-N-D Overview

Board Connector, 31 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug,

BG145-31-A-2-0375-0180-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304461117
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.413 inch
body length	3.12 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BG145
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.148 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	31

Preview

Download Datasheet

View All

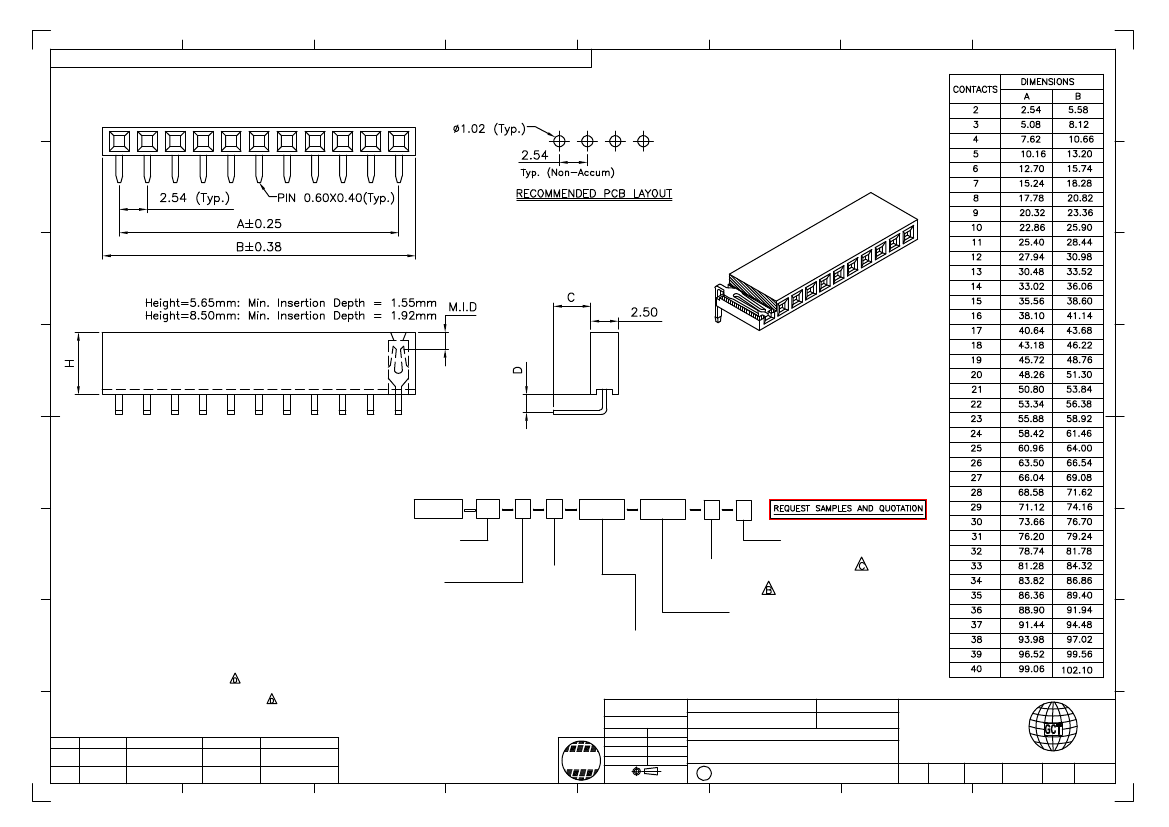

Global Connector Technology Ltd. - BG145: 2.54mm PITCH SOCKET, SINGLE ROW, THROUGH-HOLE, HORIZONTAL

SPECIFICATIONS

规格

Ordering Grid

CURRENT RATING

电流额定值

: 3 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 M

MIN.

DIELECTRIC WITHSTANDING

耐电压

: AC 600 V

CONTACT RESISTANCE

接触电阻值

: 20m

Max.

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

Packing Options

No. of Contacts

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

D = Tube (Standard)

02 to 40

G = Plastic Box

Insulator Material

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

Height H

N = Nylon 6T (Standard)

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

1 = 5.65mm

Contact Plating

OR POLYESTER

聚酯

, PBT, UL94-V0

P = PBT

2 = 8.50mm

A = Gold Flash All Over

SOLDERING PROCESS

可焊性

L = LCP

Standard = 8.50mm

B = Selective Gold Flash Contact

NYLON 6T (STANDARD

标准物料

) -

Dimension D (1/100mm)

Area/Tin On Tail

IR REFLOW

回流焊

: 260°C for 10 sec.

(Bottom of Insulator to Pin Centre)

C = Tin All Over

WAVE

波峰焊

: 230°C for 5-10 sec.

Dimension C (1/100mm)

Standard - 1.80mm = 0180

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

G = 10µ" Gold Contact Area/Tin On

(Insulator to Pin End)

Or specify Dimension D

PBT (OPTION

可选物料

) - MANUAL SOLDER

人工焊接

: 330°C for 3-5 sec.

Tail

e.g. 2.50mm = 0250

Standard - 3.75mm = 0375

(NOT SUITABLE FOR HI-TEMP PROCESS

不适合高温处理

)

I = 30µ" Gold Contact Area/Tin On Tail

Or specify Dimension C

LCP (OPTION

可选物料

) -

Standard = Gold Flash All Over

IR REFLOW

回流焊

: 260°C for 10 sec.

e.g. 2.50mm = 0250

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

Tolerances

Part Number:-

Date:-

(Except as noted)

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BG020

BG030

BG035

BG055

BG060

30 OCT 06

Dimensions in mm

BG145

BG075

BG080

X.°±5°

X. ± 0.30

Description:-

BG145

XXXX

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

30/10/06

STANDARD INSULATOR

MATERIAL CHANGED

PACKING OPTIONS

CHANGED

CHANGE TO SOLDER

TEMP. INFORMATION

05/08/09

12/03/09

27/04/09

RoHS

.X°±2°

.XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X.X ± 0.20

X.XX ± 0.15

Third Angle Projection

2.54mm PITCH SOCKET,SINGLE ROW, THROUGH-HOLE,

HORIZONTAL

Global

Connector

Technology

www.globalconnectortechnology.com

Scale

NTS

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note

Drawn by

LYH

E & OE

Sheet No.

1/1
