3941P08VP01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3941P08VP01

3941P08VP01: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle; CategoryThe connector The connector; File Size112KB，3 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric Compare View All

3941P08VP01 Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle

3941P08VP01 Parametric

Parameter Name	Attribute value
Objectid	303564056
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	EMPTY 2ND CIRCUIT
body width	0.378 inch
subject depth	0.461 inch
body length	1.248 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	500000000 Ω
insulator material	NYLON
Manufacturer's serial number	3941P
Plug contact pitch	0.156 inch
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	8

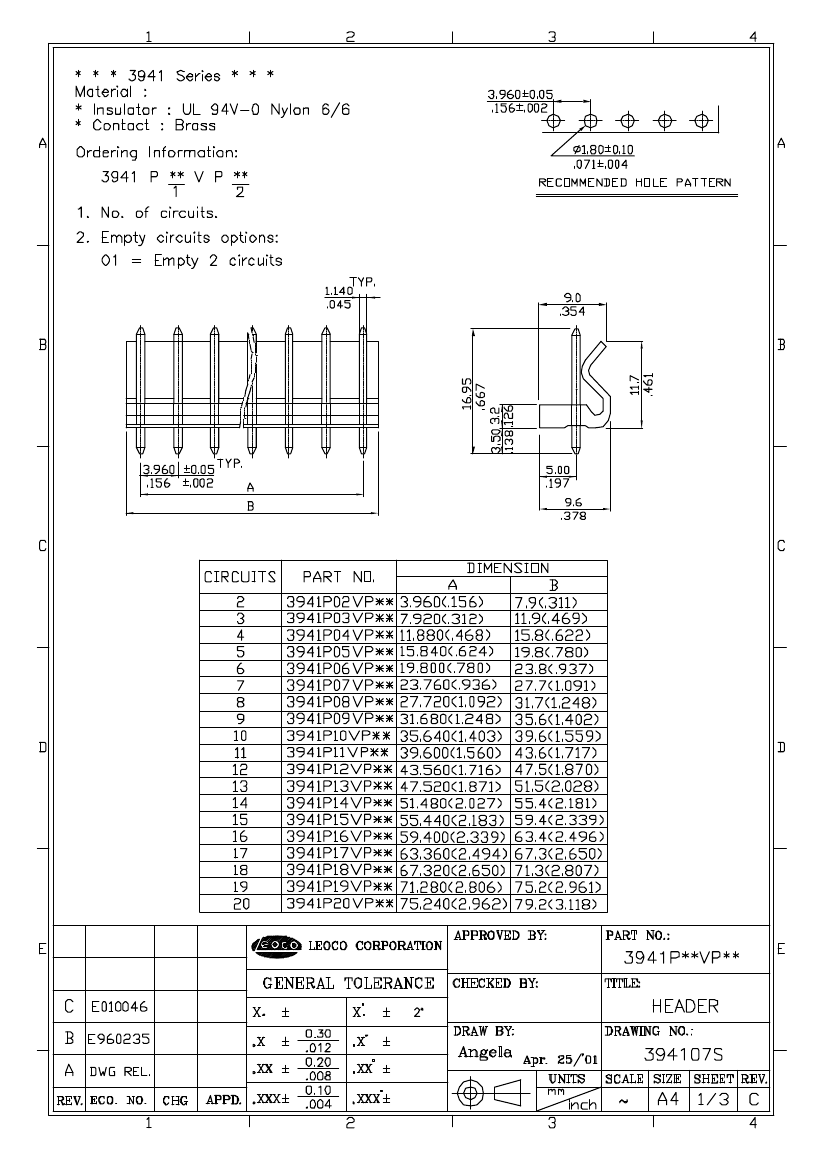

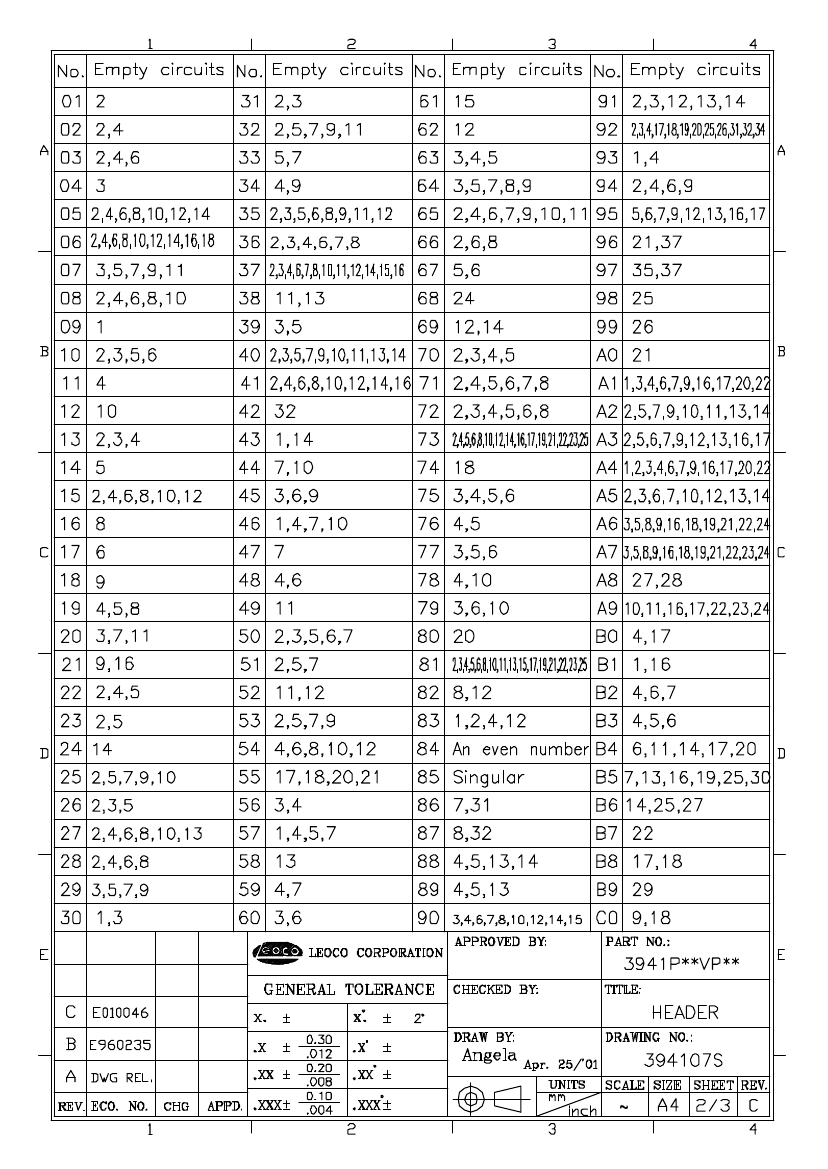

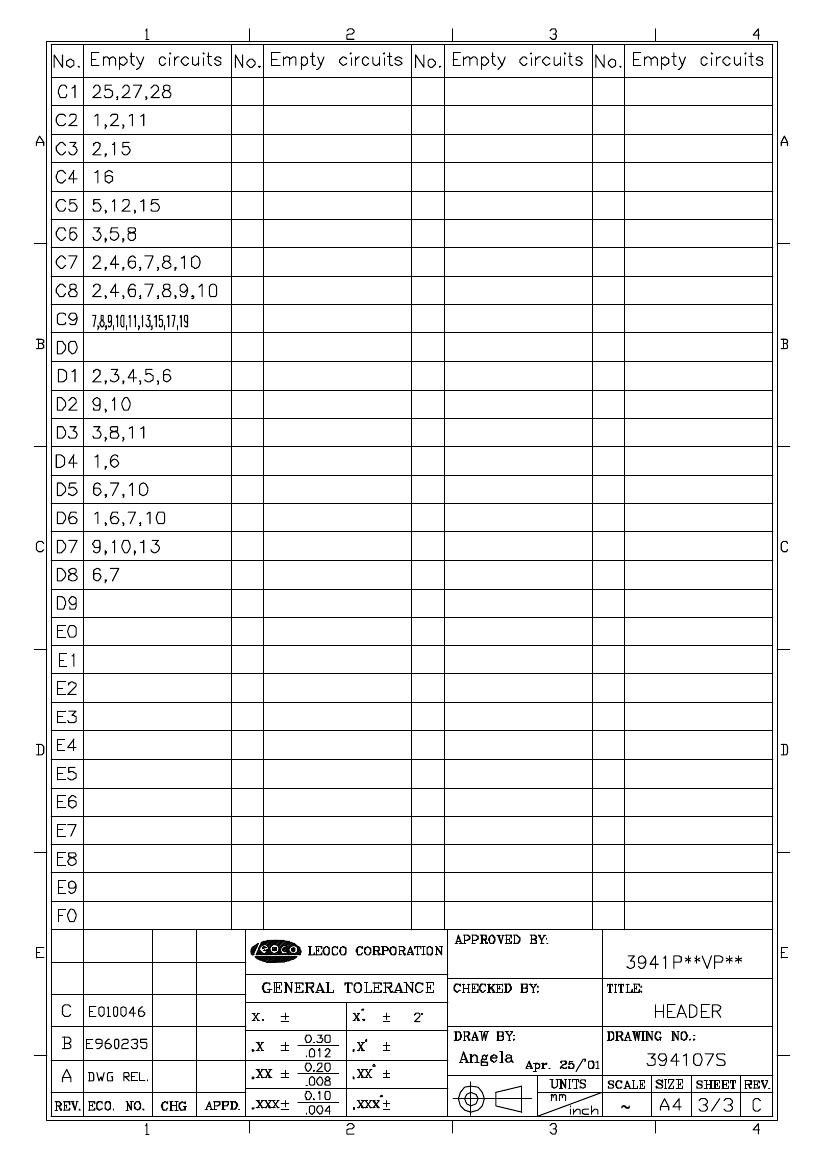

Preview

Download Datasheet

View All

3941P08VP01 Related Products

	3941P08VP01	3941P17VP01	3941P14VP01	3941P13VP01
Description	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	EMPTY 2ND CIRCUIT	EMPTY 2ND CIRCUIT	EMPTY 2ND CIRCUIT	EMPTY 2ND CIRCUIT
body width	0.378 inch	0.378 inch	0.378 inch	0.378 inch
subject depth	0.461 inch	0.461 inch	0.461 inch	0.461 inch
body length	1.248 inch	2.65 inch	2.181 inch	2.028 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	SN ON NI	SN ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	3941P	3941P	3941P	3941P
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Installation option 1	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1
Number of rows loaded	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	100u inch	100u inch	100u inch	100u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	5 A	5 A	5 A	5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Terminal pitch	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	17	14	13
