SDUR3020WT
Technical Data
Data Sheet N0164 Rev. A
SDUR3020WT ULTRAFAST RECTIFIER
Applications:
Antiparallel diode for high frequency
switching devices
Anti saturation diode
Snubber diode
Free wheeling diode in converters and
motor control circuits
Rectifiers in switch mode power supplies (SMPS)
Inductive heating and melting
Uninterruptible power supplies (UPS)
Ultrasonic cleaners and welders

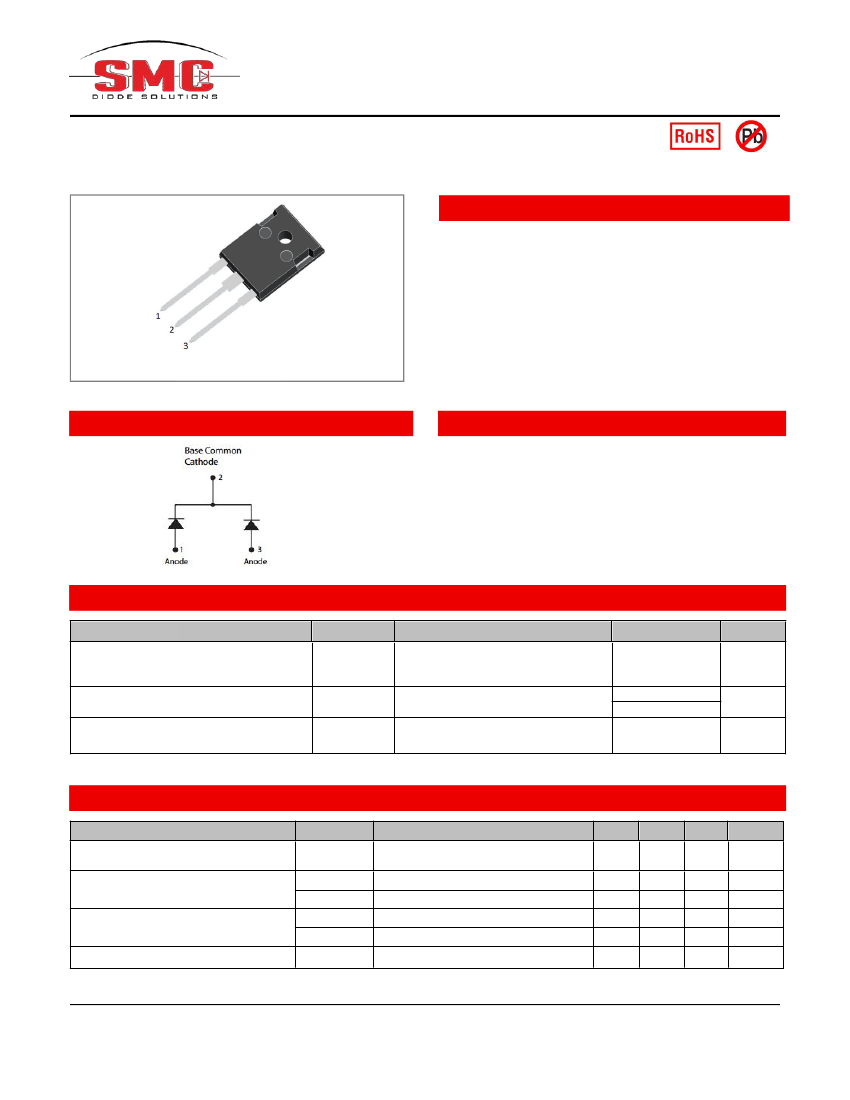

TO-247AD
Circuit Diagram
Features:
Ultra-Fast switching
High current capability
Low reverse leakage current
High surge current capability
This is a Pb − free device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive Surge
Current(Per Leg)
Symbol
V
RRM
V
RWM
V
R
I
F (AV)
I
FSM
Condition
-
50% duty cycle @Tc=140°C,
rectangular wave form
8.3ms, Half Sine pulse
Max.
200
15(Per Leg)
30(Per Device)
110
Units
V
A
A
Electrical Characteristics:
Characteristics
Breakdown voltage,
Blocking voltage
Forward Voltage Drop
(Per Leg)*
Reverse Current
(Per Leg)*
Reverse Recovery Time(Per Leg)
* Pulse width < 300 µs, duty cycle < 2%
Symbol
V
BR
V
R
V
F1
V
F2
I
R1
I
R2
t
rr
I
R
= 50μA
Condition
@ 15A, Pulse, T
J
= 25C
@ 15A, Pulse, T
J
= 125C
@V
R
= rated V
R
, T
J
= 25C
@V
R
= rated V
R
,T
J
= 125C
I
F
=500mA, I
R
=1A,and I
rm
=250mA
Min.
200
-
-
-
-
-
Typ.
-
0.85
0.74
0.04
30
32
Max. Units
-
1.05
0.90
10
500
35
V
V
V
μA
uA
ns
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SDUR3020WT
Technical Data
Data Sheet N0164 Rev. A
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal Resistance Junction to
Case
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
JC
wt
Condition
DC operation
-
-
-
Specification
-55 to +150
-55 to +150
1.6
Units
C
C
C/W
g
TO-247AD
6.28

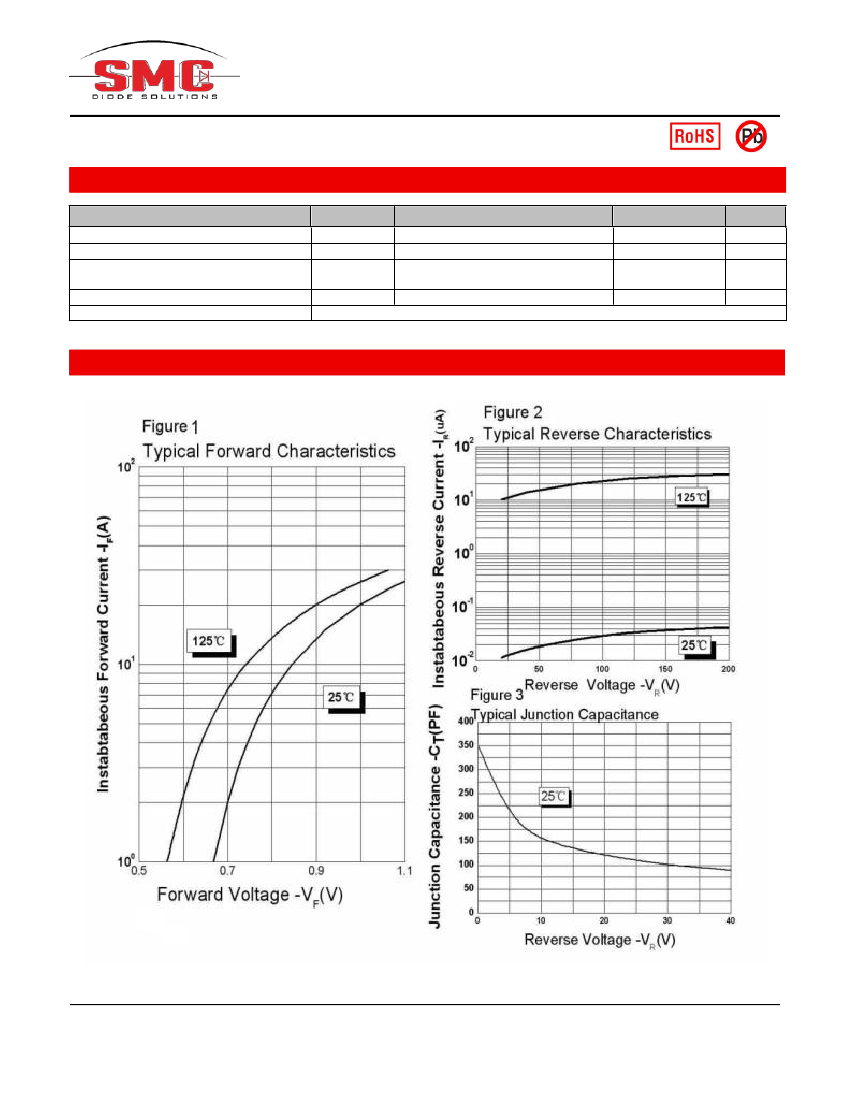

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SDUR3020WT
Technical Data
Data Sheet N0164 Rev. A

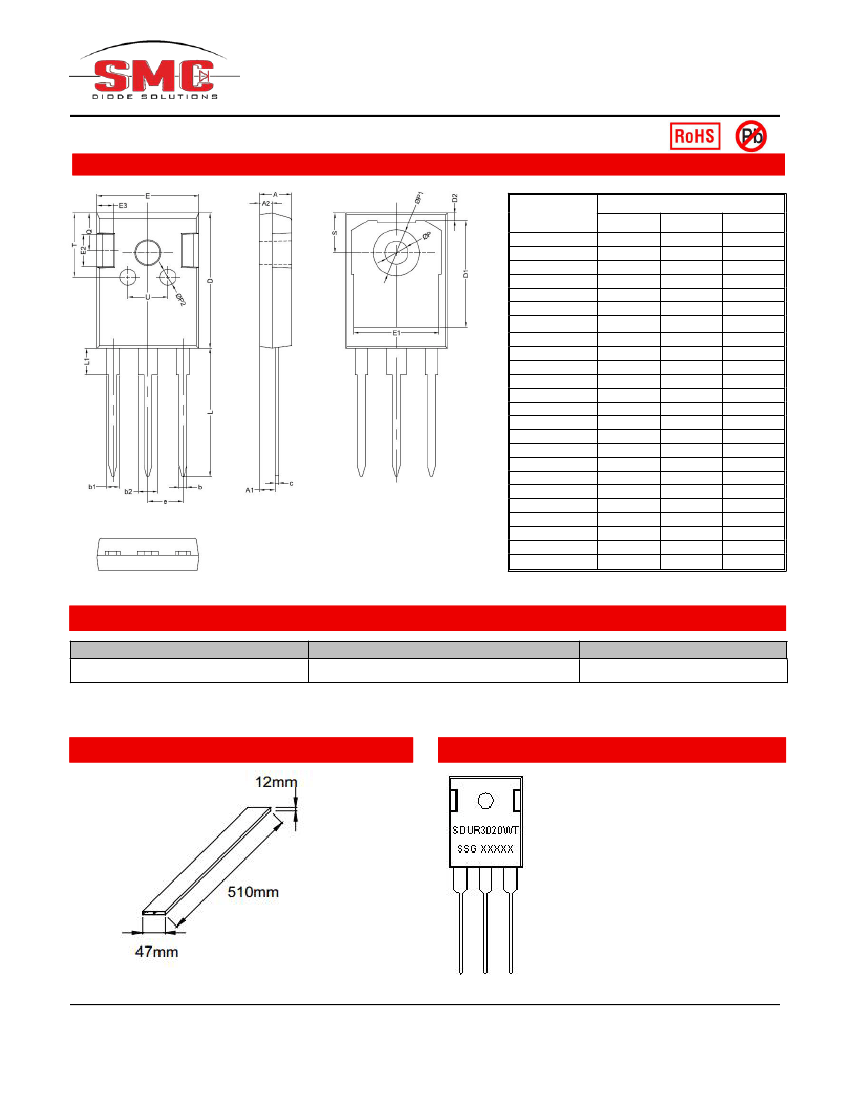

Mechanical Dimensions TO-247AD
SYMBOL
A
A1
A2
b
b1
b2
c
D
D1
D2
E
E1
E2
E3
e
L
L1
P
P1
P2
Q
S
T
U
Millimeters
MIN.
4.80
2.20
1.90
1.10
1.80
2.80
0.50
20.30
15.45
TYP.
5.00
2.41
2.00
1.20
2.00
3.00
0.60
21.00
16.55
1.20
15.80
13.30
5.00
2.50
5.44
19.92
4.13
3.60
2.50
5.80
6.15
10.00
6.20
MAX.
5.20
2.61
2.10
1.40
2.20
3.20
0.75
21.20
16.00
19.42
3.50
7.1
6.05
20.70
3.70
7.40
6.25
Ordering Information:
Device
SDUR3020WT
Package
TO-247AD(Pb-Free)
Shipping
25pcs / tube
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification.
Tube Specification
Marking Diagram
Where XXXXX is YYWWL
SDUR
30
20
WT
SSG
YY
WW
L
= Device Type
= Forward Current (30A)
= Reverse Voltage (200V)
= Configuration
= SSG
= Year
= Week
= Lot Number
Cautions：Molding
resin
Epoxy resin UL:94V-0
