Spec Sheet
Medium-High Voltage Multilayer Ceramic Capacitors
SMK432BJ104KM-T
Features
Item Summary
0.1uF±10%, 630V,
X5R/B, 1812/4532 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 500pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
Temperature Characteristic (JIS)
Operating Temp. Range (JIS)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
0.1 uF ± 10 %
1812/4532
630 V
2.5 %
X5R
-55 to +85 ℃
B
-25 to +85 ℃
120 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
4.5 ±0.40 mm
3.2 ±0.30 mm
2.5 ±0.20 mm
0.90 ±0.60 mm
2018.11.24
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

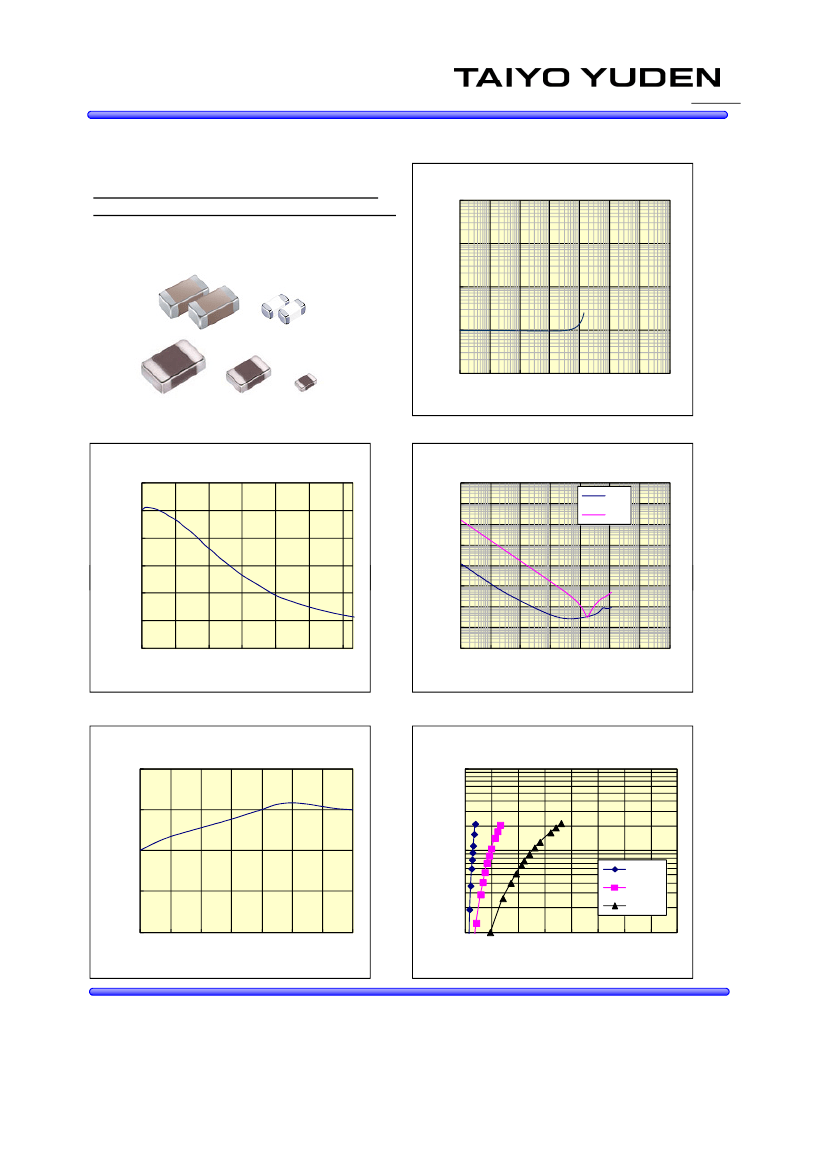

Multi Layer Ceramic Capacitor
○SMK432BJ104KM
630V 4532 B/X5R 0.1uF +/- 10% t=2.7mmMAX
630V 1812 B/X5R 0.1uF +/- 10% t=0.106inchMAX
100
-Electrical Characteristics Data-
16QA03
RoHS compliance product
SMK432BJ104KM
Capacitance Freq.
10
Capacitance[uF]
1
0.1
0.01
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
20
0
-20
SMK432BJ104KM
DC Bias Char.
100000
10000
1000
SMK432BJ104KM
Impedance,ESR Freq.
ESR
Z
-40
-60
-80
Z,ESR[O
Z,ESR[OHM]
0
100
200 300 400 500
DC Bias Voltage[V]
600
dC/C
dC/C[%]
100
10
1
0.1
0.01
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
-100
SMK432BJ104KM
Capa citance Temp.
10
100
SMK432BJ104KM
Ripple Current
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
1
0
0.5
1
1.5 2 2.5 3
Ripple Current[Arms]
3.5
4
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
