112A2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 112A2

112A2: Description1-OUTPUT DC-DC REG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size102KB，12 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

112A2 Overview

1-OUTPUT DC-DC REG PWR SUPPLY MODULE

112A2 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-XDIP-T
Maximum load regulation	0.5%
Number of functions	1
Output times	1
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output voltage	12.12 V
Minimum output voltage	11.88 V
Nominal output voltage	12 V
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

Data Sheet

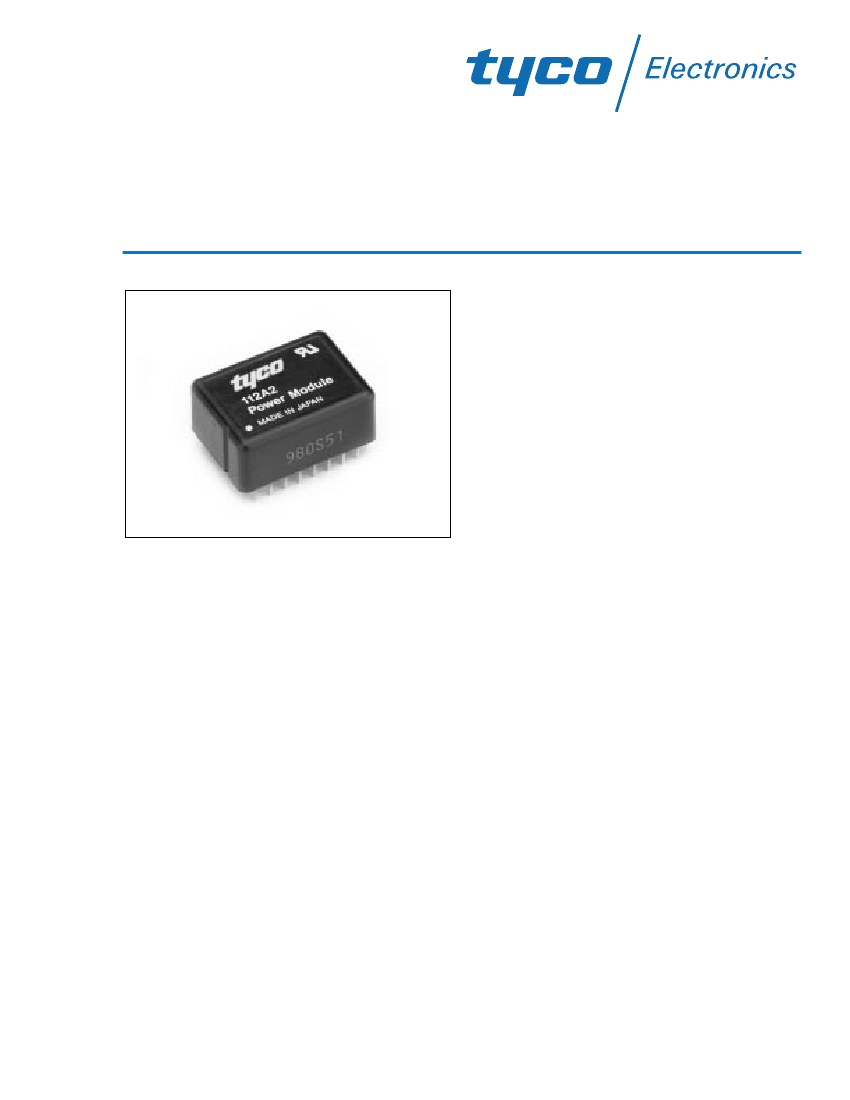

February 2000

112-Series and 113-Series Power Modules;

5 Vdc Input

Features

High reliability

Low proﬁle

Small size: 24.4 mm x 17.8 mm x 11.2 mm

(0.96 in. x 0.70 in. x 0.44 in.)

Printed-circuit board mountable

No minimum load

UL*

1950 Recognized

Operating ambient temperature range:

0 °C to 70 °C

The 112- and 113-Series Power Modules deliver highly

reliable dc-dc conversion in less than one square inch of

footprint area.

Applications

Communication equipment

Computer equipment

Digital circuits

Distributed power architecture

Description

The 112- and 113-Series Power Modules provide highly reliable power for digital and telecommunications appli-

cations. Each nonisolated switching regulator operates from a 5 Vdc input. The 112-Series modules provide

12 V, 15 V, and 25 V outputs, while the 113-Series provide –5 V, –12 V, –15 V, and –130 V outputs (see the Out-

put Speciﬁcations table). High efﬁciency allows for operation from no load to full load over an ambient tempera-

ture range of 0 °C to 70 °C with no power derating. Minimal external ﬁltering components are required.

Each module is fully encapsulated in a 16-pin DIP that uses less than 1 in.

of printed-circuit board area.

is a registered trademark of Underwriters Laboratories, Inc.

112A2 Related Products

	112A2	113AA2	113B2	112C2	112D2	113F2	113F3
Description	1-OUTPUT DC-DC REG PWR SUPPLY MODULE	1-OUTPUT DC-DC REG PWR SUPPLY MODULE, 0.960 X 0.700 INCH, 0.440 INCH HEIGHT, PACKAGE	1-OUTPUT DC-DC REG PWR SUPPLY MODULE, 0.960 X 0.700 INCH, 0.440 INCH HEIGHT, PACKAGE	1-OUTPUT DC-DC REG PWR SUPPLY MODULE	1-OUTPUT DC-DC REG PWR SUPPLY MODULE, 0.960 X 0.700 INCH, 0.440 INCH HEIGHT, PACKAGE	1-OUTPUT DC-DC REG PWR SUPPLY MODULE, 0.960 X 0.700 INCH, 0.440 INCH HEIGHT, PACKAGE	1-OUTPUT DC-DC REG PWR SUPPLY MODULE, 0.960 X 0.700 INCH, 0.440 INCH HEIGHT, PACKAGE
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum input voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal input voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
JESD-30 code	R-XDIP-T	R-XDMA-P	R-XDMA-P	R-XDIP-T	R-XDMA-P	R-XDMA-P	R-XDMA-P
Maximum load regulation	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%
Number of functions	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Maximum output voltage	12.12 V	-5.05 V	-12.12 V	15.15 V	25.25 V	-5.05 V	-5.05 V
Minimum output voltage	11.88 V	-4.95 V	-11.88 V	14.85 V	24.75 V	-4.95 V	-4.95 V
Nominal output voltage	12 V	-5 V	-12 V	15 V	25 V	-5 V	-5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	IN-LINE	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	PIN/PEG	PIN/PEG	THROUGH-HOLE	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO
Maker	TE Connectivity	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Parts packaging code	-	MODULE	MODULE	-	MODULE	MODULE	MODULE
package instruction	-	0.960 X 0.700 INCH, 0.440 INCH HEIGHT, PACKAGE	0.960 X 0.700 INCH, 0.440 INCH HEIGHT, PACKAGE	DIP,	0.960 X 0.700 INCH, 0.440 INCH HEIGHT, PACKAGE	,	0.960 X 0.700 INCH, 0.440 INCH HEIGHT, PACKAGE
