MURTA30020 thru MURTA30040R
Silicon Super Fast
Recovery Diode
Features
• High Surge Capability
• Types from 200 V to 400 V V
RRM
• Isolation Type Package
• Electrically Isolated Base Plate
• Not ESD Sensitive

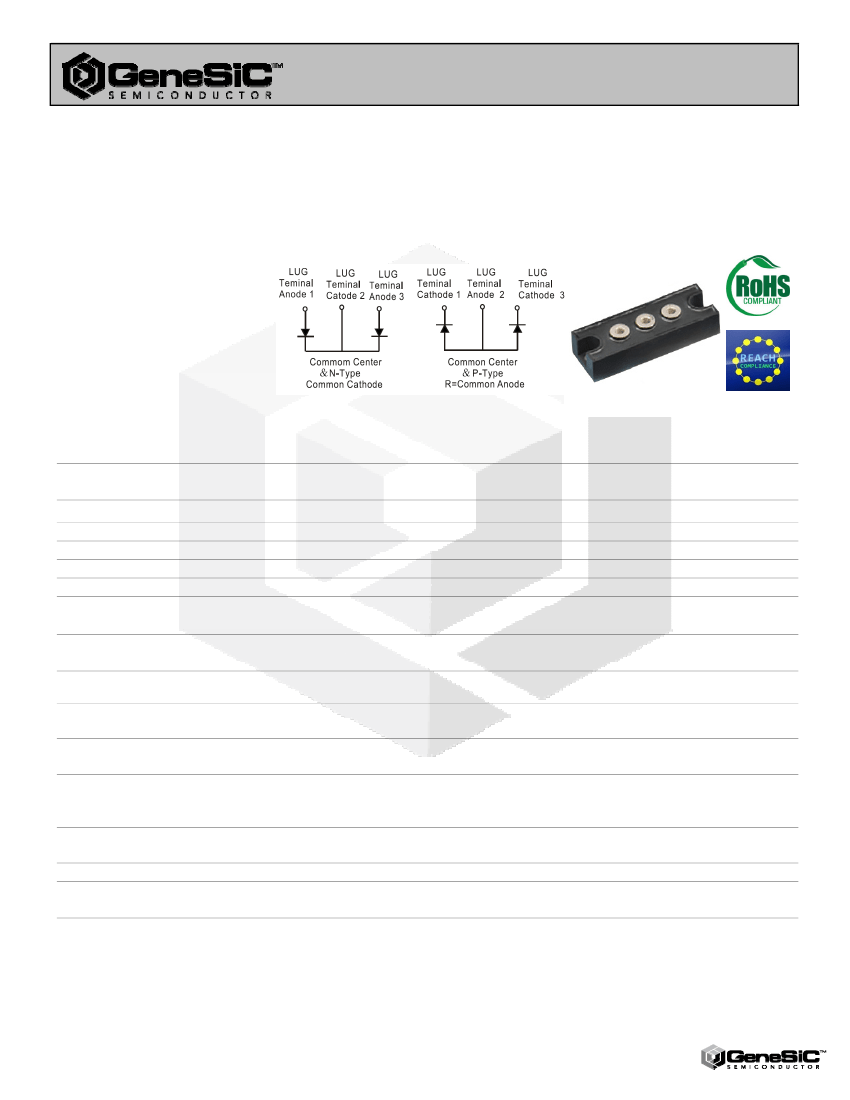

Heavy Three Tower Package
V
RRM
= 200 V - 400 V
I
F(AV)
= 300 A
Maximum ratings, at T
j
= 25 °C, unless otherwise specified ("R" devices have leads reversed)
Parameter
Repetitive peak reverse voltage
RMS reverse voltage
DC blocking voltage
Operating temperature
Storage temperature
Symbol
V
RRM
V
RMS
V
DC
T
j
T
stg
Conditions
MURTA30020(R)
200
141
200
-55 to 150
-55 to 150
MURTA30040(R)
400
283
400
-55 to 150
-55 to 150
Unit
V
V
V
°C
°C
Electrical characteristics, at Tj = 25 °C, unless otherwise specified
Parameter
Average forward current (per pkg)
Peak forward surge current (per leg)
Maximum instantaneous forward
voltage (per leg)
Maximum instantaneous reverse
current at rated DC blocking voltage
(per leg)
Maximum reverse recovery time (per
leg)
Symbol
I
F(AV)
I
FSM
V
F
I
R
T
rr
Conditions
T
C
= 100 °C
t
p
= 8.3 ms, half sine
I
FM
= 150 A, T
j
= 25 °C
T
j
= 25 °C
T
j
= 125 °C
I
F
=0.5 A, I
R
=1.0 A,
I
RR
= 0.25 A
MURTA30020(R)
300
2750
1.0
25
5
130
MURTA30040(R)
300
2750
1.3
25
5
130
Unit
A
A
V
μA
mA
ns
Thermal characteristics
Maximum thermal resistance, junction -
case (per leg)
R
ΘJC
0.40
0.40
°C/W
www.genesicsemi.com/silicon-products/super-fast-recovery-rectifiers/
1

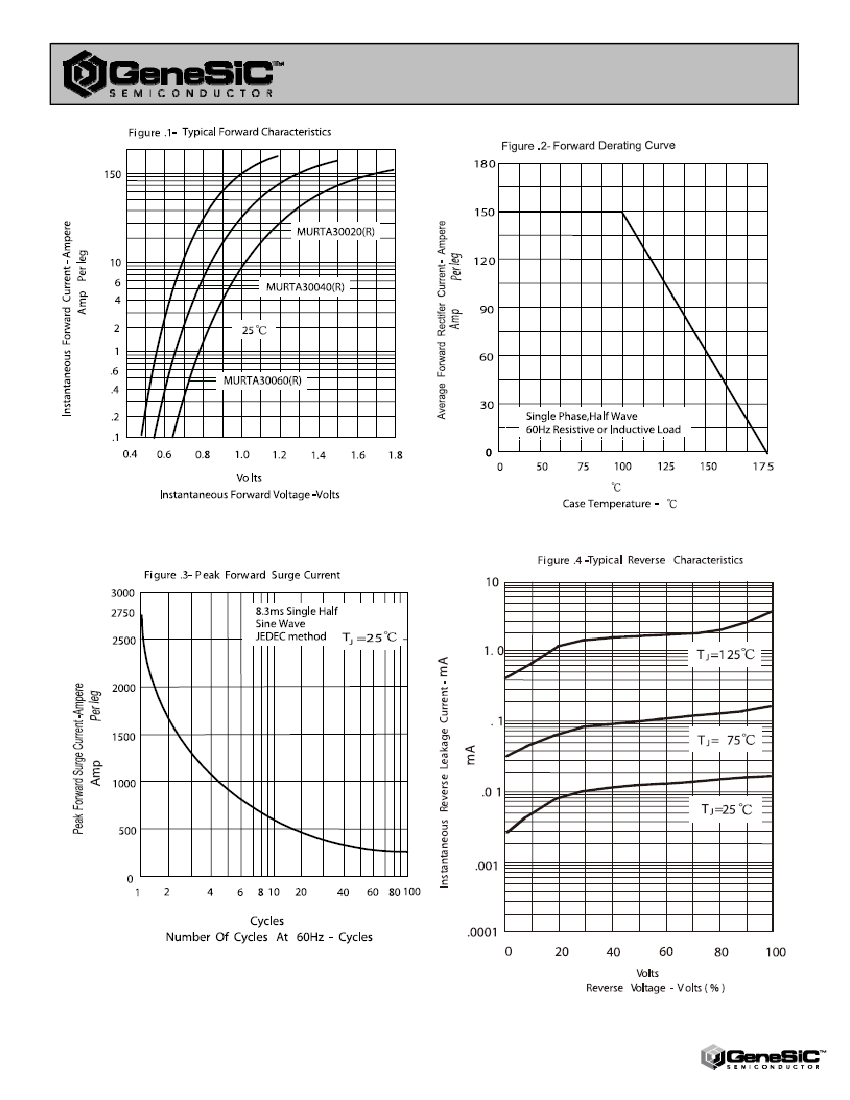

MURTA30020 thru MURTA30040R

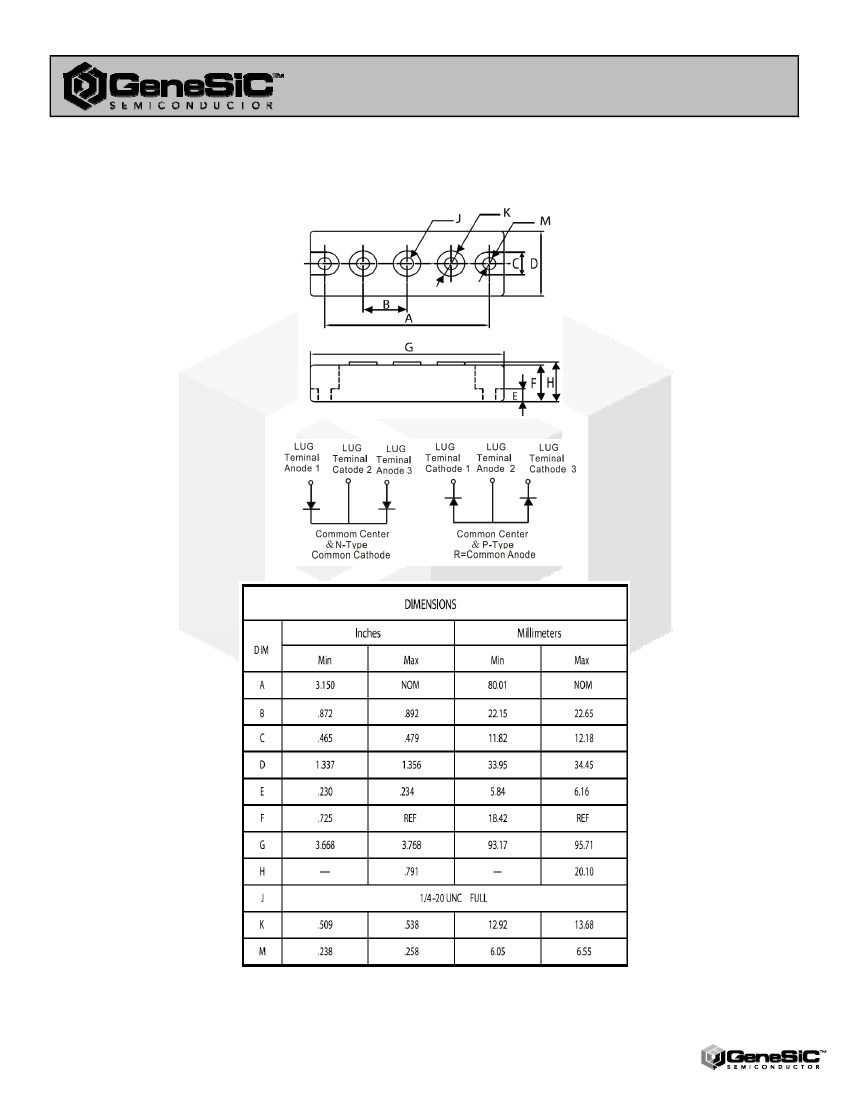

Package dimensions and terminal configuration
Product is marked with part number and terminal configuration.
www.genesicsemi.com/silicon-products/super-fast-recovery-rectifiers/
3
