1420S1S1A-11-1AXLY-60 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1420S1S1A-11-1AXLY-60

1420S1S1A-11-1AXLY-60: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerGSN Electronics

Download Datasheet Parametric Compare View All

1420S1S1A-11-1AXLY-60 Overview

Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle

1420S1S1A-11-1AXLY-60 Parametric

Parameter Name	Attribute value
Objectid	304408766
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.079 inch
subject depth	0.25 inch
body length	0.866 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	1420S1S1A
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	3.9878 mm
Termination type	SURFACE MOUNT
Total number of contacts	11

Preview

Download Datasheet

View All

Total Process Quality

1420S1S1

1420S1S1A

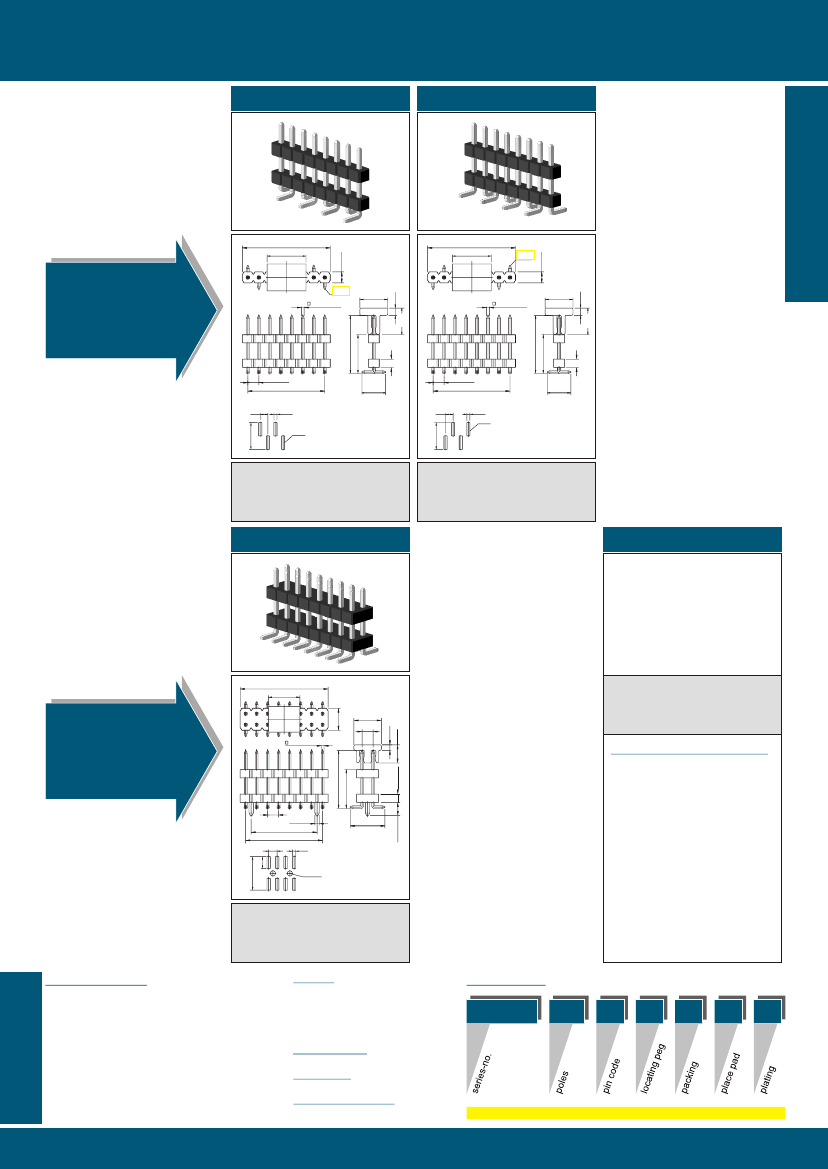

male header vertical SMT 2.00

board to board

5.50

0.50±0.02

5.30

1.00

1.5±0.1

2.0±0.02

2.0 x (n -1)

5.08

5.30

GSN

2.0±0.1

pin 1

single row

5.50

0.50±0.02

1.00

pin 1

1.5±0.1

5.08

2.0

6.08

0.80

pin 1

2.0±0.02

2.0 x (n -1)

2.0

6.08

0.80

pin 1

available pole no.:

dimensions:

02 to 40

available pole no.:

dimensions:

02 to 40

please see table

1420S2S1

2.0±0.1

2.0 x n

6.40

2.0 x n

6.40

dimensions

2.0 x n/2

6.10

4.0±0.1

5.00

1.00

3.30

2.0±0.05

1420S1S1, 1420S1S1A

1420S2S1

double row

0.50±0.02

2.0±0.02 Ø0.8±0.1

2.0 x (n/2 -2)

2.0 x (n/2 -1)

2.0

3.6

0.8

6.30±0.15

7.3

Ø1.10

available pole no.:

dimensions:

04 to 80

please see table

Shown fotos may differ to final product

Currently valid drawings are only on www.gsn.sg

In case of any doubt, please contact GSN

technical data

contact material

insulator

flammability

dielectric strength

current rating

insulation resistance

operating temperature

soldering temperature

copper alloy

0.50x0.50mm

thermoplastic

UL 94V-0

2.3±0.15

pin code

-A-

10.70

7.85

11.86

12.37

15.37

17.35

9.86

-D-

6.35

1.5±0.1

plating

00=

30=

50=

60=

flash gold

selective gold 0.75µm

tin

selective flash gold

X=without, N=with

Y=without, P=with

order code

14201S1A-

06 -

Y-

: 500V AC for 1 minute

: 1A

: 500 Meg Ohm min

: -40°C to +105°C

: 260°C max / 10 sec

locating peg

place pad

possible packing

L=loose,

P=tray,

T=tube,

R=reel

other dimensions / materials are available, please contact us

support@gsn.sg

A24

1420S1S1A-11-1AXLY-60 Related Products

	1420S1S1A-11-1AXLY-60	1420S1S1A-03-1AXLY-60	1420S1S1A-06-1AXLY-60	1420S1S1A-05-1AXLY-60
Description	Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	0.079 inch	0.079 inch	0.079 inch	0.079 inch
subject depth	0.25 inch	0.25 inch	0.25 inch	0.25 inch
body length	0.866 inch	0.236 inch	0.472 inch	0.394 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU
Contact point gender	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	1420S1S1A	1420S1S1A	1420S1S1A	1420S1S1A
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	3.9878 mm	3.9878 mm	3.9878 mm	3.9878 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	11	3	6	5
