87P261T1G-08-XLY-50 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 87P261T1G-08-XLY-50

Preview

87P261T1G-08-XLY-50: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size400KB，1 Pages; ManufacturerGSN Electronics

Download Datasheet Parametric Compare View All

87P261T1G-08-XLY-50 Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

87P261T1G-08-XLY-50 Parametric

Parameter Name	Attribute value
Objectid	304411853
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.224 inch
subject depth	0.449 inch
body length	0.8 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	87P261T1G
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

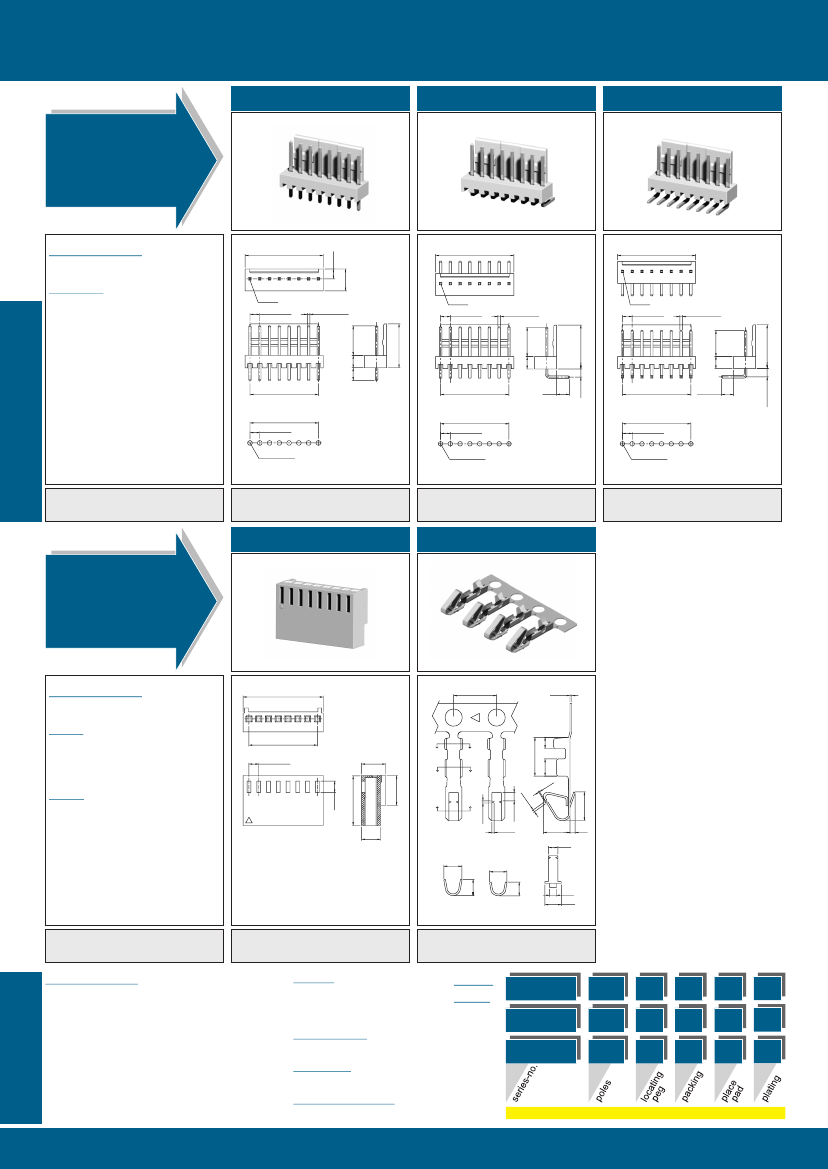

GSN

Total Process Quality

87P261T1G

87P261T9D

87P261T9E

crimp technology THT 2.54

male

header

2.54

technical data

male header

(2.54 x n) ±0.3

pin 1

5.7

pin 1

0.64±0.05

2.54±0.1

0.64±0.05

pin 1

2.54±0.1

0.64±0.05

crimp technology

7.7

7.2

contact material

insulator

Flammability

: brass

: nylon 66

: UL 94V-2

2.54±0.1

11.4

6.7

3.3 3.2

11.4

3.2

2.54 x (n-1)±0.2

3.2

2.54 x (n-1)±0.25

3.2±0.3

2.54 x (n-1)±0.1

2.54±0.1

2.54 x (n-1)±0.1

2.54±0.1

2.54 x (n-1)±0.1

2.54±0.1

Ø1.2±0.05

available pole no.:

02 to 15

available pole no.:

02 to 15

available pole no.:

02 to 15

87H261X1G

87C26FF-R50

housing

and

terminal

technical data

housing

insulator

flammability

terminal

AWG

contact material

packing

: #22 - #28

: phosphor bronze

: reel

2.1

1.9

2.0

1.6

(2.54 x n)+0.52 ±0.3

5.0

0.2t

B

7.8

2.85

12.9

B

0.25

4.9

0.95

3.1

1.1

sec C-C

sec A-A

sec B-B

0.8

1.9

available pole no.:

02 to 15

packing unit:

10,000 pcs

Shown fotos may differ to final product

Currently valid drawings are only on www.gsn.sg

In case of any doubt, please contact GSN

electrical data

dielectric withstanding

current rating

insulation resistance

contact resistance

operating temperature

:

1000V AC / 1 min.

3A max

1000 Meg Ohm min

20 milli Ohm max

plating

50= tin

order

code

X=without

header -

housing -

3.35

C

2.0

: nylon 66

: UL 94V-2

2.54±0.1

6.2

4.5

A

1.3

2.54 x (n-1)±0.2

0.1

0.6

06 -

X

L

R

Y-

locating peg

place pad

: -25°C to +85°C

Y=without, P=with

terminal -

possible packing

L=loose, T=tube,

R=reel

other dimensions / materials are available, please contact us

B12

support@gsn.sg

2.25±0.2

2.25

50

11.4

5

0.2

87P261T1G-08-XLY-50 Related Products

	87P261T1G-08-XLY-50	87P261T1G-11-XLY-50	87P261T1G-14-XLY-50	87P261T1G-15-XLY-50	87P261T1G-05-XLY-50	87P261T1G-02-XLY-50	87P261T1G-07-XLY-50
Description	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.224 inch	0.224 inch	0.224 inch	0.224 inch	0.224 inch	0.224 inch	0.224 inch
subject depth	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch
body length	0.8 inch	1.1 inch	1.4 inch	1.5 inch	0.5 inch	0.2 inch	0.7 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	87P261T1G	87P261T1G	87P261T1G	87P261T1G	87P261T1G	87P261T1G	87P261T1G
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	11	14	15	5	2	7
ECCN code	EAR99	-	-	-	EAR99	EAR99	EAR99
Maker	-	GSN Electronics	GSN Electronics	GSN Electronics	GSN Electronics	GSN Electronics	-
