5101-LD9AV2BE datasheet, PDF - EEWORLD Datasheet

5101-LD9AV2BE: DescriptionToggle Switch, SPDT, On-on, Horizontal, 5 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-right Angle; CategoryMechanical and electronic products switch; File Size52KB，1 Pages; ManufacturerLamb Industries

Download Datasheet Parametric View All

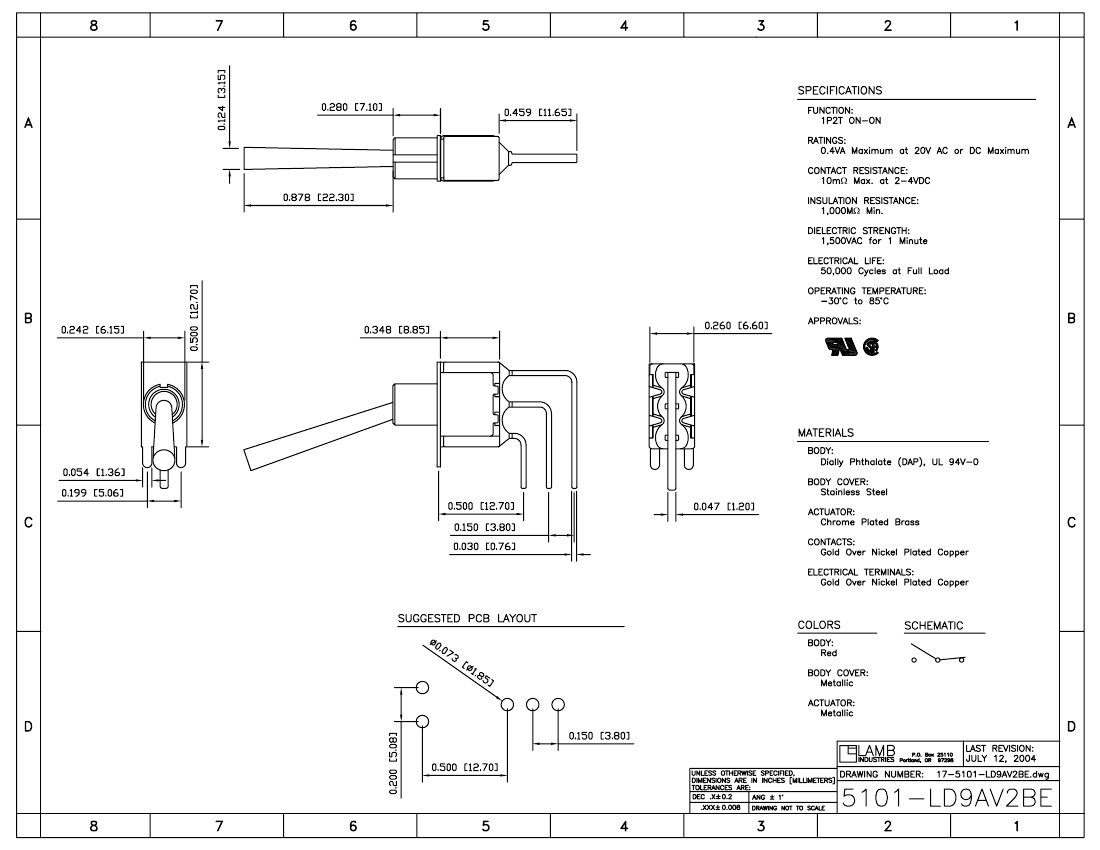

5101-LD9AV2BE Overview

Toggle Switch, SPDT, On-on, Horizontal, 5 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-right Angle

Parameter Name	Attribute value
Objectid	303936356
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle	25 deg
Actuator color	CHROME
Executor completed	CHROME
Actuator length	0.878 inch
Actuator material	BRASS
Actuator type	TOGGLE
Other features	UL,CSA APPROVED
body width	6.604 mm
Body color	RED
body height	21.4376 mm
Body length or diameter	12.7 mm
Casing diameter	0.242 inch
Nozzle length	0.28 inch
Casing type	UNTHREADED
center contact material	COPPER
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated power R load	0.4VA@20VAC
Contact function	ON-ON
Contact resistance	0.01 mΩ
Dielectric withstand voltage	1500VAC V
Electrical life	50000 Cycle(s)
End contact material	COPPER
End contact plating	GOLD OVER NICKEL
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	5000
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	5
seal	EPOXY
surface mount	NO
Switch action	HORIZONTAL
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal surface	GOLD/NICKEL
Terminal length	0.459 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
