9410-E1-01-801: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,PIN,0.079 PITCH,SURFACE MOUNT TERMINAL; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

9410-E1-01-801 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,PIN,0.079 PITCH,SURFACE MOUNT TERMINAL

9410-E1-01-801 Parametric

Parameter Name	Attribute value
Objectid	1166955821
Reach Compliance Code	unknown
Other features	STANDARD PACKAGING
Board mount options	PEG
body width	0.158 inch
subject depth	0.059 inch
body length	0.394 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	9400
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	10

9410-E1-01-801 Preview

CC

S

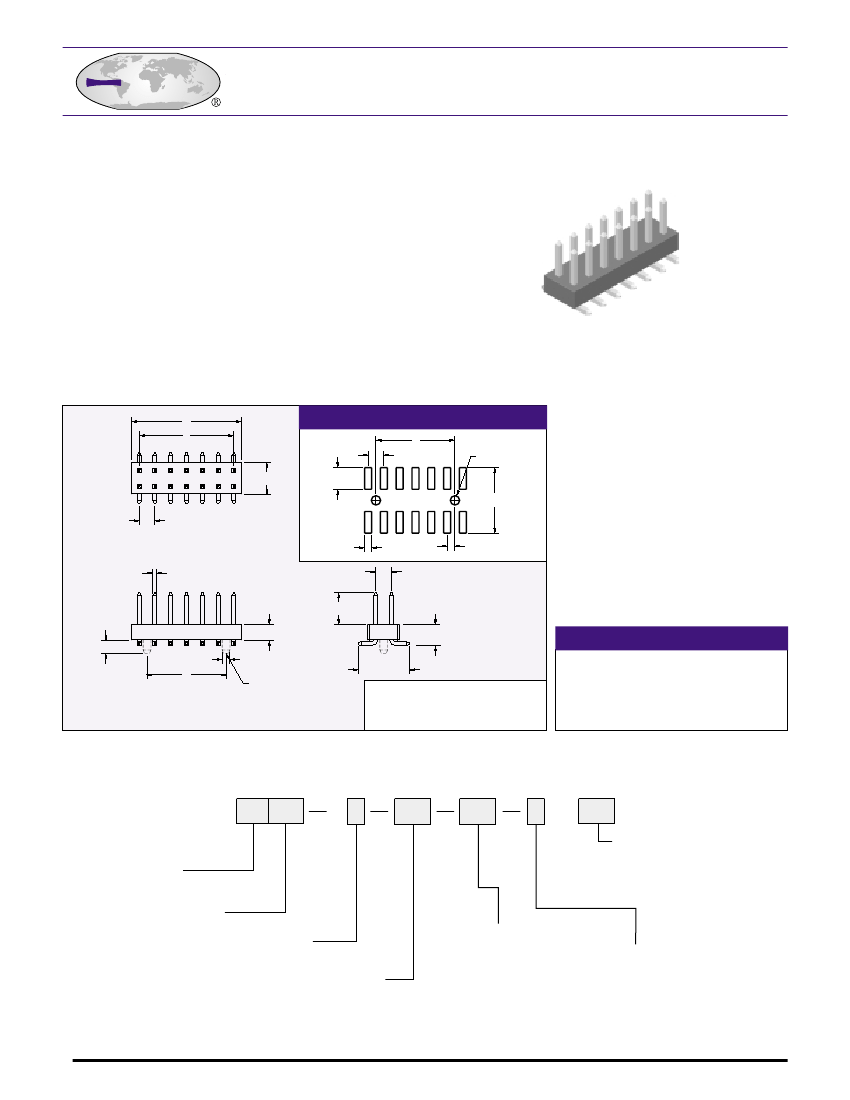

Specifications

.079 x .079 SMT Header

9400 Series Header

Insulator Material: Glass filled polyester, Thermoplastic,

94V-O Nylon-6T, UL Recognized.

Contact Material: Copper Alloy

Contact Plating: Gold and/or Tin over .000050” Ni

(See contact plating options)

Insulation Resistance:

5000 M ohms min.

Dielectric Withstand Voltage: 500 VAC

Current Rating:

1 AMP

Contact Resistance:

20 m ohms max

Operating Temperature:

-40°C To +105°C

Max. Processing Temp.:

230°C for 60 seconds

UL File Numbers:

E146967 & E176234

A

B

PCB LAYOUT

C

.0787 [2.0]

.158 [4.0]

.108 [2.75]

Ø.047 [1.2]

.327 [8.3]

.0787 [2.0] TYP

.

.035 [.89]

.020 [0.5] SQ. TYP

.

.079 [2.0]

.039 [1.0]

CONTACT HEIGHT

INSULATOR HEIGHT

.067 [1.7]

.039 [1.0]

C

.106 [2.7] OR .087 [2.2]

SUGGESTED MATING CONNECTORS

.256 [6.5]

LOCATING PEG

(OPTIONAL)

A

= .0787 x No. of Pos.±.020

B

= .0787 x (No. of Cont./2 -1)

C

= .0787 x (No. of Cont./2 -2)

94XXS-CX-XX-XX

94XXS-DX-XX-XX

94XXS-EX-XX-XX

94XXS-FX-XX-XX

94XXS-FL-XX-XX

94XXS-GX-XX-XX

(PAGE F-30)

(PAGE F-31)

(PAGE F-32)

(PAGE F-33)

(PAGE F-34)

(PAGE F-35)

DIMENSIONS ARE IN INCHES & [MM]

PART NUMBERING

94 XX

SERIES CODE

.079 HEADERS

E X

XX

X

XX

PACKAGING

TR

= TAPE & REEL PACKAGING

PP

= PICK AND PLACE PAD

BLANK = STANDARD PACKAGING

CONSULT FACTORY FOR

TR

AND

PP

PACKAGING

AVAILABILITY

NO. OF CONTACTS

06 - 80

INSULATOR HEIGHT

1

= .059 [1.50]

2

= .0787 [2.00]

CONTACT PLATING

.000050” Nickel underplate

CONTACT

TAIL

00

= 100µ”Sn

100µ”Sn

03

= Au Flash

Au Flash

80

= 10µ”Au

10µ”Au

90

= 30µ”Au

30µ”Au

LOCATING PEG

CONTACT HEIGHT

01

= .157 [4.00] (1.5mm INSULATOR)

02

= .138 [3.50] (2.0mm INSULATOR)

CONSULT FACTORY FOR OTHER CONTACT LENGTH OPTIONS

0

= WITHOUT LOCATING PEG

1

= WITH LOCATING PEG

CONSULT FACTORY FOR CUSTOM CONNECTORS BUILT TO YOUR SPECIFICATION

ELECTRONIC CONNECTOR SERVICE INC.

11880 WESTERN AVE. STANTON, CA 90680 TOLL FREE (877) ECS-CONN TEL (714) 895-6351 FAX (714) 894-1858

WWW.ECSCONN.COM
