9624S-D1-01-00: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

9624S-D1-01-00 Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug

9624S-D1-01-00 Parametric

Parameter Name	Attribute value
Objectid	1320424114
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.118 inch
subject depth	0.134 inch
body length	0.618 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	9600S
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	100u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

CC

S

Specifications

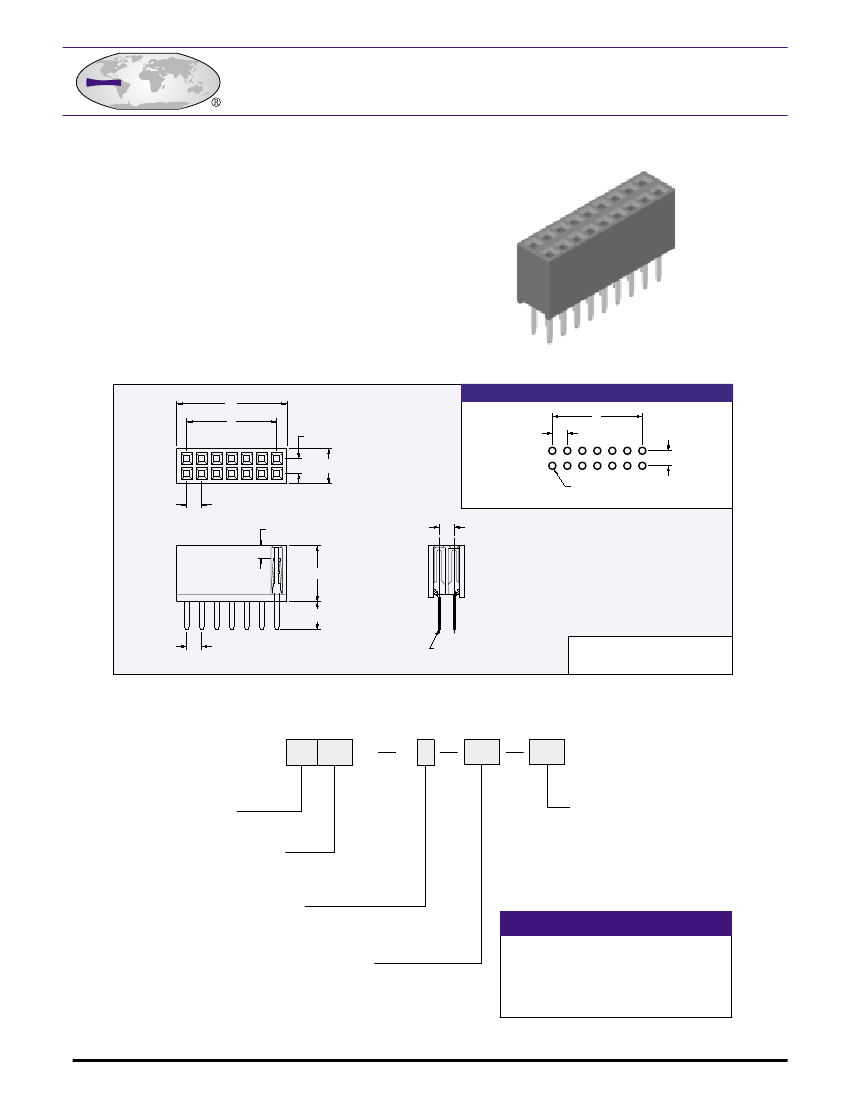

9600S Series Sockets

.050 x .050 Socket

Insulator Material: Glass filled polyester, Thermoplastic,

94V-O Nylon-6T, UL Recognized.

Contact Material: Phosphor Bronze

Contact Plating: Gold or Tin over .000050” Ni

(See contact plating options)

Insulation Resistance:

5000 M ohms min.

Contact Resistance:

20 m ohms max.

Dielectric Withstand Voltage: 500 VAC

Current Rating:

1 AMP

Operating Temperature:

-40°C To +105°C

Max Processing Temp.:

230°C for 60 seconds

UL File Numbers:

E146967 & E176234

PCB LAYOUT

B

.050 [1.27]

.118 [3.0]

.050 [1.27]

Ø .024+.003 [0.6+0.5]

.050 [1.27]

.043 [1.10]

.050 [1.27]

A

B

BODY HEIGHT

.094 [2.4]

.050 [1.27]

.016x .006

[.40 X .15]

A

= .018 + .050 x No. of Pos.

B

= .050 x (No. of Cont./2 -1)

ALL DIMENSIONS ARE IN INCHES [MM]

PART NUMBERING

96 XX S

SERIES CODE

.050 SOCKETS

D X

01

XX

CONTACT PLATING

.000050” Nickel underplate

MATING

TAIL

00

= 100µ”Sn

100µ”Sn

03

= Au Flash

Au Flash

80

= 10µ”Au

10µ”Au

90

= 30µ”Au

30µ”Au

NO. OF CONTACTS

06 - 98

100 =

01

BODY HEIGHT

1

= .134 [3.40]

2

= .169 [4.30]

SUGGESTED MATING CONNECTORS

96XX-DX-XX-XX

96XX-EX-XX-XX

96XX-FX-XX-XX

96XX-GX-XX-XX

96XX-HX-XX-XX-XXXX

96XX-IX-XX-XX

(PAGE F-08)

(PAGE F-09)

(PAGE F-10)

(PAGE F-11)

(PAGE F-12)

(PAGE F-13)

TAIL LENGTH

01

= .094 [2.40]

CONSULT FACTORY FOR OTHER TAIL LENGTH OPTIONS

CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION

WWW.ECSCONN.COM
