Film Capacitors – Power Factor Correction
PhiCap capacitors
Series/Type:
Ordering code:
Date:
Version:
B32344E-series
B32344ExxxxAxxx
October 2011
1
(header 2 + bottom left header bar):
Ordering code: (top right header bar)
Series/Type: (top right header bar)
Preliminary data (optional):
(if necessary)
Department:
Date:
Version:
FILM PFC PM
October 2011
1
B32344ExxxxAxxx
B32344E-series
EPCOS AG 2011. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
Film Capacitors – Power Factor Correction
PhiCap capacitors

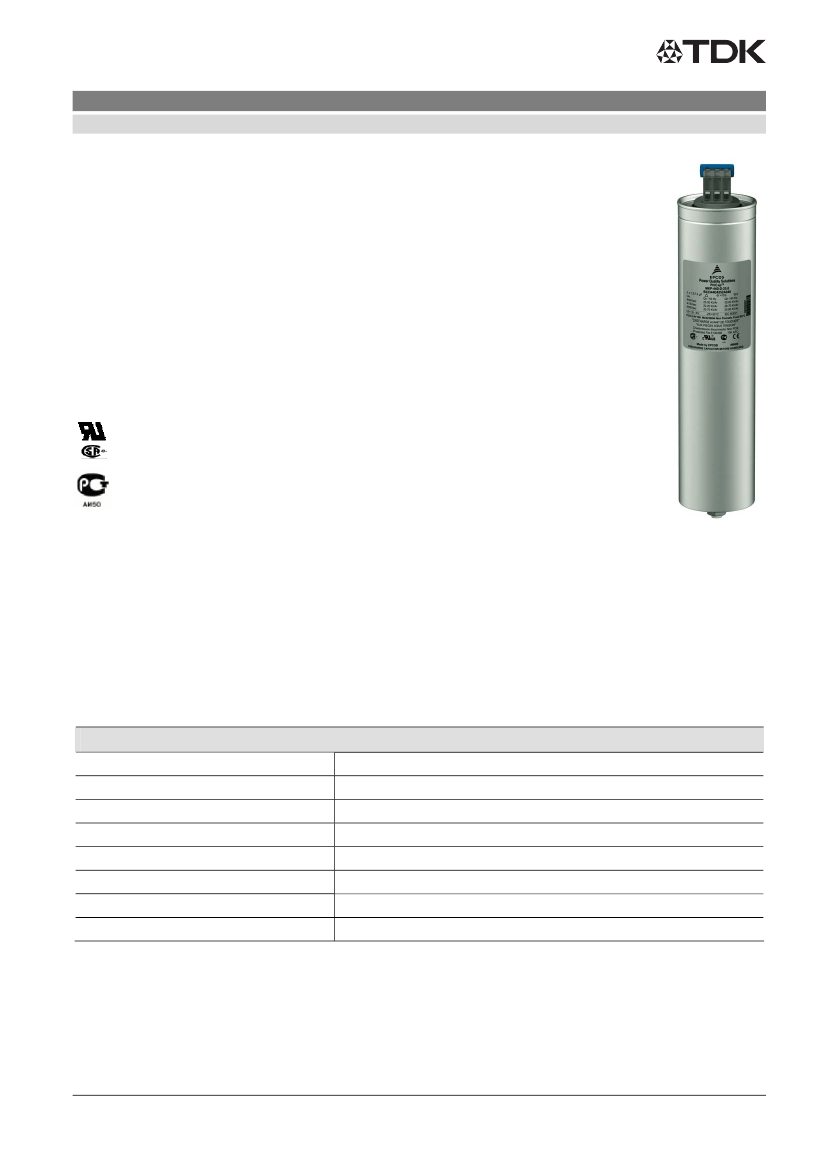

Construction
Dielectric: Polypropylene film
Non PCB, semi-dry biodegradable resin
Extruded round aluminum can with stud
Provided with ceramic discharge module
Dual safety system
B32344ExxxxAxxx
B32344E-series
Features
C
Three-phase, delta connected
Self-healing technology
Naturally air cooled (or forced air cooling)
Indoor mounting
US
file # E106388
C22.2 Nº190 MC # 236094
GOST
Typical applications
For Power Factor Correction
Terminals
Optimized capacitor safety terminals
Mounting
Threaded stud at bottom of can
(max. torque for M12 = 10 Nm)
Technical data and specifications
Characteristics
Rated capacitance C
R
Tolerance
Connection
Rated voltage V
R
Rated frequency f
R
Output
Rated current I
R
tan
δ
0
(dielectric)
According to specification table
–5 / +10%
D (Delta)
According to specification table
50 Hz and 60 Hz
According to specification table
According to specification table
0.2 W / kvar
FILM PFC PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 10
October 2011
Film Capacitors – Power Factor Correction
PhiCap capacitors
B32344ExxxxAxxx
B32344E-series
Maximum ratings (according to IEC 60831)
Maximum permissible voltage V
max
V
R
+ 10% (up to 8 h daily)
V
R
+ 15% (up to 30 min daily)
V
R
+ 20% (up to 5 min daily)
V
R
+ 30% (up to 1 min daily)
Maximum permissible current I
max
I
S
Up to 1.5 • I
R
(A) including combined effects of harmonics,
overvoltages and capacitance tolerance
200 • I
R
(A)
Test data (according to IEC 60831)
AC test voltage terminal to terminal
Insulation voltage between terminals
and container
*tan
δ
(50 Hz)
* Without discharge resistor
2.15 • V
R
, 2 s
3000 V AC, 10 s
≤
0.45 W / kvar
Design data
Dimensions (d x h)
Weight approx
Impregnation
Fixing
Max. torque (Al can stud)
Mounting position
According to specification table
According to specification table
Non PCB, Semi-dry biodegradable resin
Threaded bolt M12
10 Nm
Upright
See “Maintenance and Installation Manual” for further details.
Climatic category –40/D
min
max
Storage temperature
Ө
hotspot
Max.
Humidity
Degree of protection
Maximum altitude
–40 ºC
+55 ºC
–40 ºC….+85 ºC
+70 ºC
av. rel. < 95%
IP 20
4000 m
Mean life expectancy
t
LD
Max. 5000 switching per year
Up to 135 000 hours (temperature class –40/C) ;
Ө
HS
+70C
Up to 100 000 hours (temperature class –40/D) ;
Ө
HS
+70C
FILM PFC PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 10
October 2011
Film Capacitors – Power Factor Correction
PhiCap capacitors
B32344ExxxxAxxx
B32344E-series
Terminals
Protection degree
Max. torque
Terminal cross section
Maximum terminal current
Creepage distance (min)
Clearance (min)
Isolated terminals, IP20
1.2 Nm
16 mm
2
50 A
12.7 mm
9.6 mm
Safety
Mechanical safety
Max. short circuit current
Discharge resistor time
Overpressure disconnector
(AFC: 10 kA)
≤
60 s to 50 V or less
Reference standards
IEC 60831–1/2, UL 810-5th edition

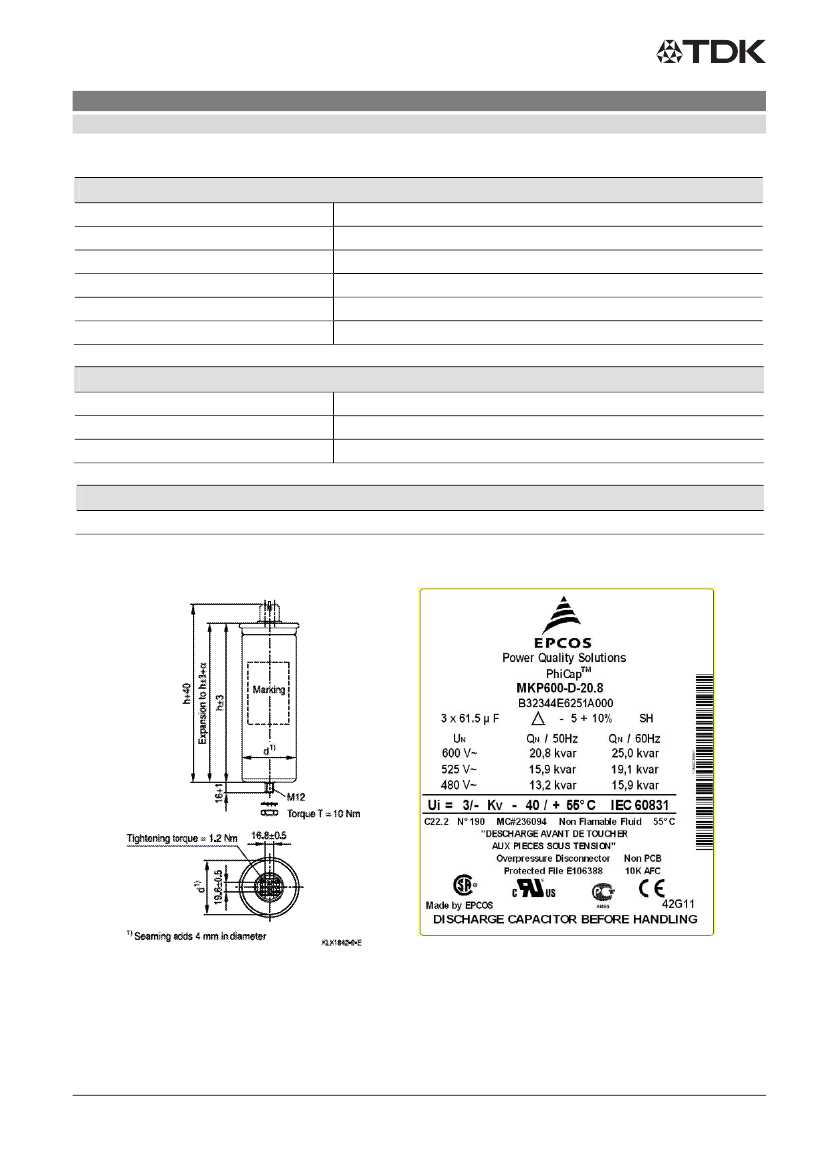

Dimensional drawing
Label design
FILM PFC PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 10
October 2011
Film Capacitors – Power Factor Correction
PhiCap capacitors
B32344ExxxxAxxx
B32344E-series
Three phase capacitors
Rated voltage 220 V, 50/60 Hz, delta connection
Ordering code
50 Hz
Type
Output
kvar
MKP220-D-1.7
MKP220-D-2.1
MKP220-D-4.2
MKP220-D-6.3
MKP220-D-8.3
MKP220-D-10.4
MKP220-D-12.5
MKP240-D-2.1
MKP240-D-2.5
MKP240-D-4.2
MKP240-D-6.3
MKP240-D-6.9
MKP240-D-8.3
MKP240-D-10.4
MKP240-D-12.5
MKP240-D-13.9
MKP380-D-6.2
MKP380-D-8.3
MKP380-D-10.4
MKP380-D-12.5
MKP380-D-16.7
MKP380-D-20.8
B32344E2021A020
B32344E2021A520
B32344E2051A020
B32344E2071A520
B32344E2101A020
B32344E2121A520
B32344E2151A020
B32344E2021A540
B32344E2031A040
B32344E2051A040
B32344E2071A540
B32344E2081A340
B32344E2101A040
B32344E2121A540
B32344E2151A040
B32344E2161A740
B32344E3071A580
B32344E3101A080
B32344E3121A580
B32344E3151A080
B32344E3201A080
B32344E3251A080
1.7
2.1
4.2
6.3
8.3
10.4
12.5
2.1
2.5
4.2
6.3
6.9
8.3
10.4
12.5
13.9
6.2
8.3
10.4
12.5
16.7
20.8
I
R
A
4.5
5.5
11.0
16.5
21.8
27.3
32.8
5.1
6.0
10.1
15.2
16.6
20.0
25.0
30.1
33.4
9.4
12.6
15.8
19.0
25.4
31.6
60 Hz
Output
kvar
2.0
2.5
5.0
7.5
10.0
12.5
15.0
2.5
3.0
5.0
7.5
8.3
10.0
12.5
15.0
16.7
7.5
10.0
12.5
15.0
20.0
25.0
I
R
A
5.2
6.6
13.1
19.7
26.2
32.8
39.4
6.0
7.2
12.0
18.0
20.0
24.1
30.1
36.0
40.2
11.4
15.2
19.0
22.8
30.4
38.0
C
R
µF
3
•
37
3
•
46
3
•
91
3
•
137
3
•
183
3
•
229
3
•
274
3
•
38
3
•
46
3
•
77
3
•
115
3
•
128
3
•
154
3
•
192
3
•
230
3
•
256
3
•
46
3
•
61
3
•
77
3
•
92
3
•
123
3
•
153
Dimensions
dxh
mm
79.5 x 138
79.5 x 138
79.5 x 198
89.5 x 198
89.5 x 273
89.5 x 273
89.5 x 348
79.5 x 138
79,5 x 138
79.5 x 160
79.5 x 198
89.5 x 198
89.5 x 198
89.5 x 273
89.5 x 273
89.5 x 348
79.5 x 160
79.5 x 160
79.5 x 198
89.5 x 198
89.5 x 273
89.5 x 273
Weight
kg
0.4
0.4
0.6
0.8
1.2
1.5
1.5
0.4
0.4
0.6
0.6
1.5
0.9
1.2
1.2
1.2
0.5
0.5
0.6
0.8
1.2
1.2
Rated voltage 240 V, 50/60 Hz, delta connection
Rated voltage 380 V, 50/60 Hz, delta connection
