Low Distortion High Value Multilayer Ceramic Capacitors(CF_LD)
GMK212LD105MG-T
Features
Item Summary
1uF±20%, 35V,
X5R, 0805/2012 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 3000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
1 uF ± 20 %
0805/2012
35 V
10 %
X5R
-55 to +85 ℃
150 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
2.0 ±0.10 mm
1.25 ±0.10 mm
1.25 ±0.10 mm
0.50 ±0.25 mm
2018.11.24
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

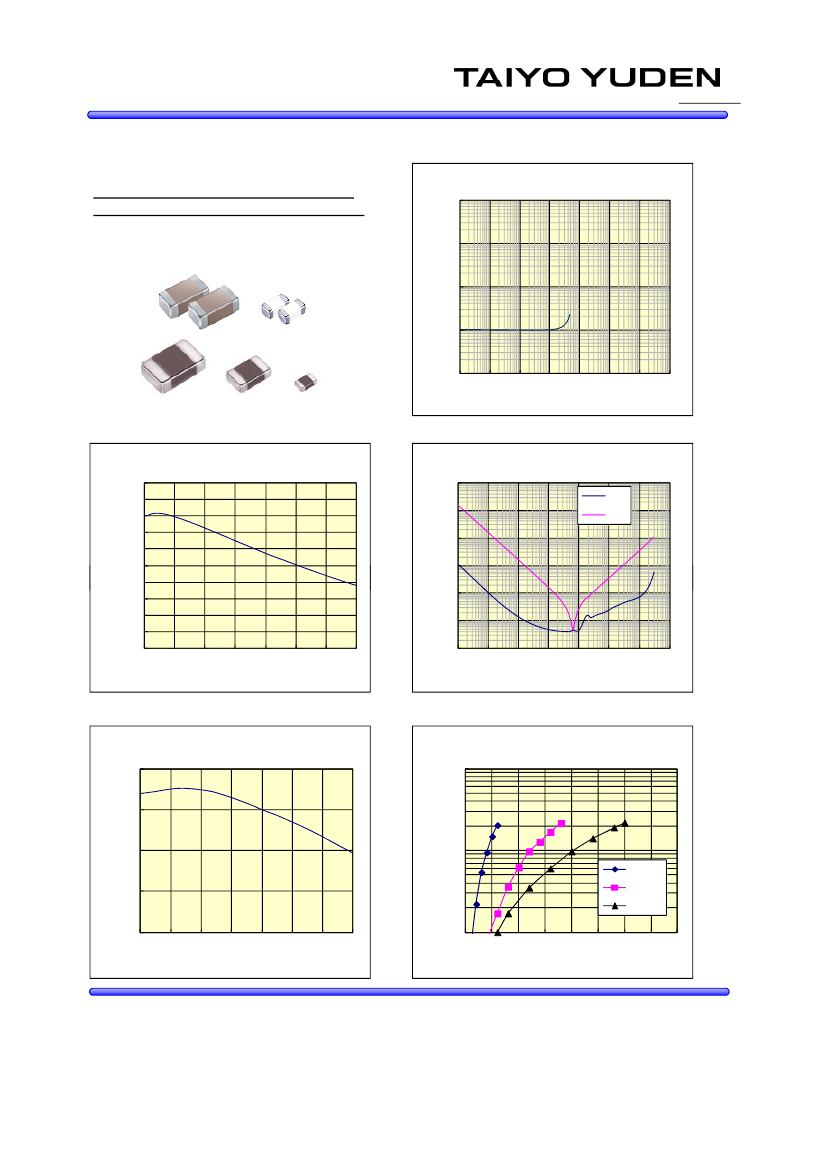

Multi Layer Ceramic Capacitor
○GMK212LD105MG
35V 2012 X5R 1uF +/- 20% t=1.35mmMAX
35V 0805 X5R 1uF +/- 20% t=0.053inchMAX
1000
-Electrical Characteristics Data-
16CWA02
RoHS compliance product
GMK212LD105MG
Ca pacitance Freq.
100
Capacitance[uF]
10
1
0.1
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
20
10
0
-10
-20
-30
-40
-50
-60
-70
-80
0
5
GMK212LD105MG
DC Bias Char.
1000
100
GMK212LD105MG
Impedance,ESR Freq.
ESR
Z
Z,ESR[O
Z,ESR[OHM]
10
15
20
25
DC Bias Voltage[V]
30
35
10
1
dC/C
dC/C[%]
0.1
0.01
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
GMK212LD105MG
Ca pacita nce Temp.
10
100
GMK212LD105MG
Ripple Current
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
1
0
0.5
1
1.5 2 2.5 3
Ripple Current[Arms]
3.5
4
