HL22E391MRX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> HL22E391MRX

HL22E391MRX: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 390uF, THROUGH HOLE MOUNT, CAN; CategoryPassive components capacitor; File Size131KB，3 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric View All

HL22E391MRX Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 390uF, THROUGH HOLE MOUNT, CAN

HL22E391MRX Parametric

Parameter Name	Attribute value
Objectid	1927544485
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	390 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	191 mΩ
leakage current	1.95 mA
Manufacturer's serial number	HL2
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	250 V
ripple current	1440 mA
surface mount	NO
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

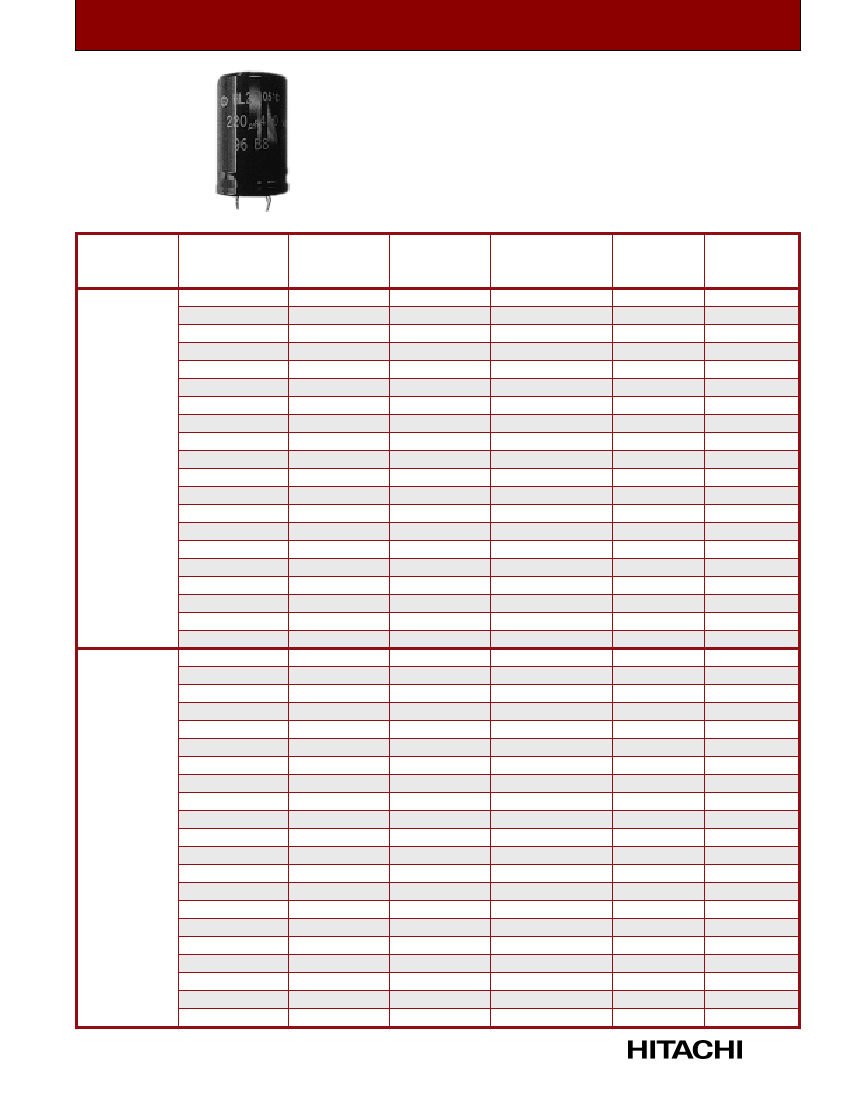

ALUMINUM ELECTROLYTIC CAPACITORS

HL2 Series

Small Size

•Life rating to 5,000 hours at 105°C

•Temperature range –40°C to +105°C

•Approximately 10% smaller than HL1Series.

•Approximately 10% higher Ripple Current than HL1 Series.

•Long life, High reliability.

•This model offers R: 2-Claw Terminal as standard.

S: 4-Claw Terminal or U: Straight Short Terminal is available with 35 X 50 Case Size.

R: 2-Claw Terminal is also available with Case Size 35 X 50.

Place the appropriate designation in the Part Number. (R is shown except for

35 X 50 Case Size, then S is shown).

Ripple Current Correction Coefficient

Temperature (°C)

Correction Coefficient

2.5

2.2

2.0

1.8

105

1.0

Frequency (Hz)

Correction Coefficient

50/60

0.7

120

1.0

400

1.1

1.3

≥

10K

1.4

For outline drawings and dimensions see page 47.

Product Numbering System for HL2, HF2 and HV2 Series

Example: HL1 Series, 200V, 1,800µF,

±20%,

4-claw terminal, 35mm diameter case

HL2 2D 152 M R A

Case diameter code

Terminal code

Capacitance tolerance code

Capacitance code

Rated Voltage code

Series Name

Capacitance Code:

To determine Capacitance code use the first 2 digits of the Capacitance

followed by the number of zeros. Using the above example of 1,500: 15 + 2 zeros = 152.

AIC

HITACHI AIC / BOSTON AIC • 69 Milk Street • Westborough, MA 01581 • Phone: 508-366-4092 • Fax: 508-366-9164
