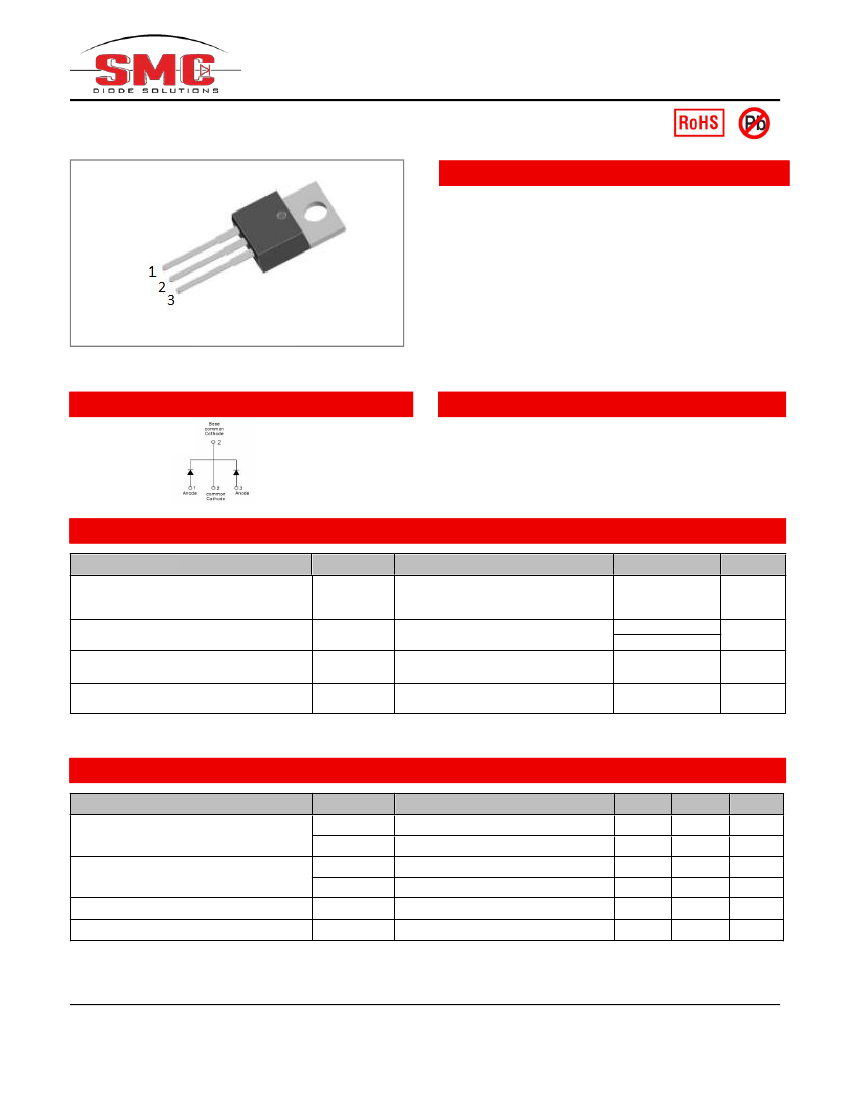

SBR3045CT
Technical Data
Data Sheet N0776, Rev. A
SBR3045CT SCHOTTKY RECTIFIER
Features
150C T
J
operation
Center tap configuration
Low forward voltage drop
High purity, high temperature epoxy encapsulation for
enhanced
mechanical strength and moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
LKLLKJHYJ,
TO-220AB
Circuit Diagram
Applications
Switching power supply
Converters
Free-Wheeling diodes
Reverse battery protection
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Peak Repetitive Forward
Current (Per Device)
Peak One Cycle Non-Repetitive Surge
Current(Per Leg)
Symbol
V
RRM
V
RWM
V
R
I
F (AV)
I
FRM
I
FSM
Condition
-
50% duty cycle @Tc=105°C,
rectangular wave form
Rated VR, square wave, 20kHz,
T
C
=105°C
8.3ms, Half Sine pulse, T
C
= 25
C
Max.
45
15(Per Leg)
30(Per Device)
30
150
Units
V
A
A
A
Electrical Characteristics:
Characteristics
Forward Voltage Drop(Per Leg)*
Reverse Current(Per Leg)*
Junction Capacitance(Per Leg)
Voltage Rate of Change
* Pulse width < 300 µs, duty cycle < 2%
Symbol
V
F1
V
F2
I
R1
I
R2
C
T
dv/dt
Condition
@ 15A, Pulse, T
J
= 25
C
@ 15A, Pulse, T
J
= 125
C
@V
R
= rated V
R,
T
J
= 25
C
@V
R
= rated V
R
, T
J
= 125
C
@V
R
= 5V, T
C
= 25
C,
f
SIG
= 1MHz
-
Typ.
0.65
0.63
0.03
9
230
-
Max.
0.80
0.76
1.0
15.0
600
10,000
Units
V
V
mA
mA
pF
V/s
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SBR3045CT
Technical Data
Data Sheet N0776, Rev. A
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal Resistance Junction to
Case(Per Leg)
Approximate Weight
Symbol
T
J
T
stg
R
JC
wt
Condition
-
-
DC operation
-
Specification
-55 to +150
-55 to +150
5
2
Units
C
C
C/W
g

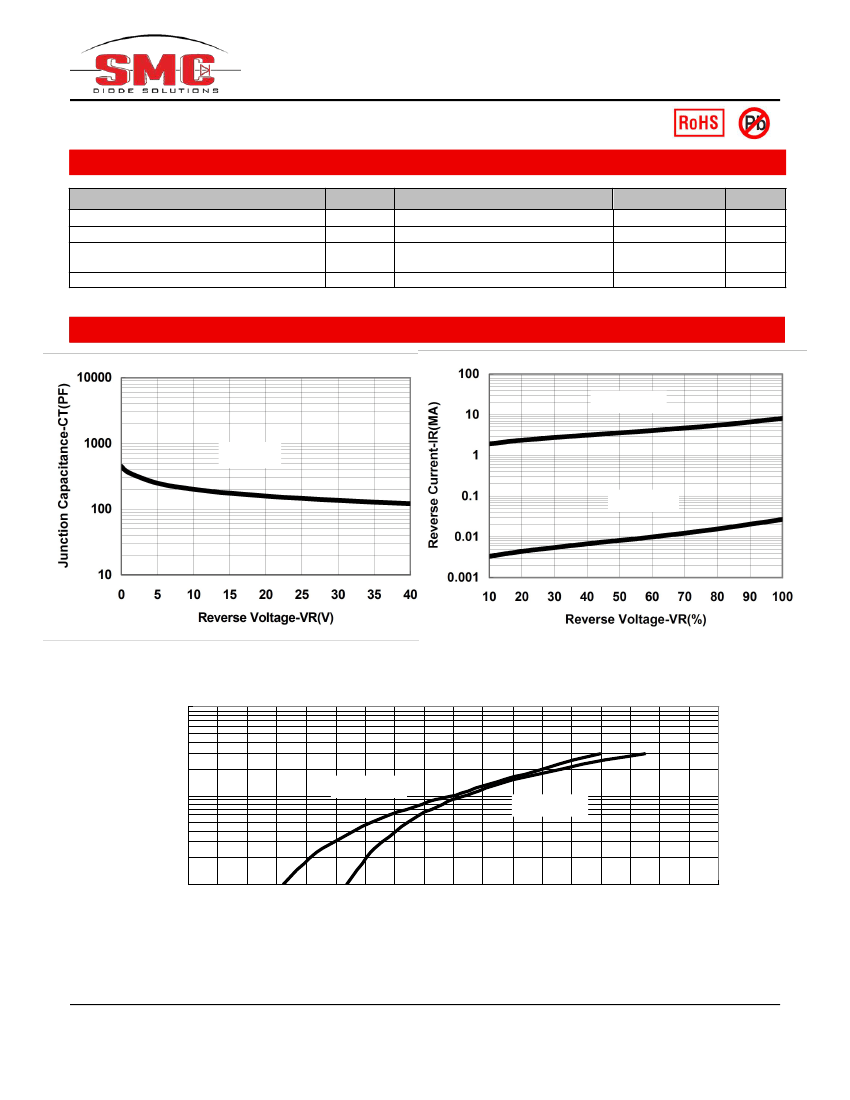

Ratings and Characteristics Curves
TJ=125℃
TJ=25℃
TJ=25℃
Fig.1-Typical Junction Capacitance
Instantaneous Forward Current-IF(A)
Fig.2-Typical Reverse Characteristics
100
10
TJ=125℃
TJ=25℃
1
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
Forward Voltage Drop-VF(V)
Fig.3-Typical Instantaneous Forward Voltage Characteristics
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SBR3045CT
Technical Data
Data Sheet N0776, Rev. A

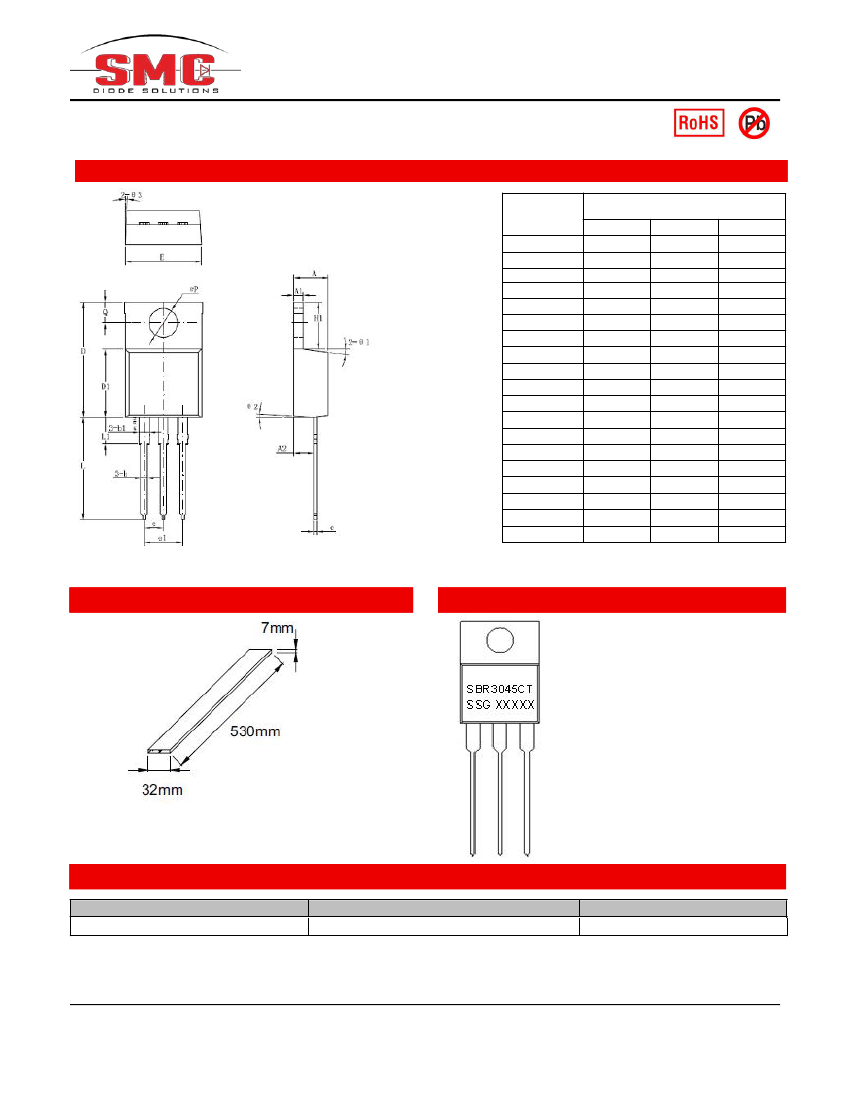

Mechanical Dimensions TO-220AB
Symbol
A
A1
A2
b
b1
c
D
D1
E
e
e1
H1
L
L1
ΦP
Q
Θ1
Θ2
Θ3
Min
4.42
1.17
2.52
0.71
1.17
0.31
14.94
8.85
10.01
4.98
6.04
12.7
3.56
3.74
2.54
Dimensions in
millimeters
Typical
4.57
1.27
2.69
0.81
1.27
0.38
15.24
9.00
10.16
2.54
5.06
6.24
13.56
3.5
3.84
2.74
7°
3°
4°
Max
4.72
1.37
2.89
0.96
1.37
0.61
15.54
9.15
10.31
5.18
6.44
13.80
3.96
4.04
2.94
Tube Specification
Marking Diagram
Where XXXXX is YYWWL
SBR
30
45
CT
SSG
YY
WW
L
= Device Type
= Forward Current (30A)
= Reverse Voltage(45V)
= Configuration
= SSG
= Year
= Week
= Lot Number
Cautions：Molding
resin
Epoxy resin UL:94V-0
Ordering Information
Device
SBR3045CT
TO-220AB (Pb-Free)
Package
50 pcs/ tube
Shipping
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our tape and reel packaging
specification.
