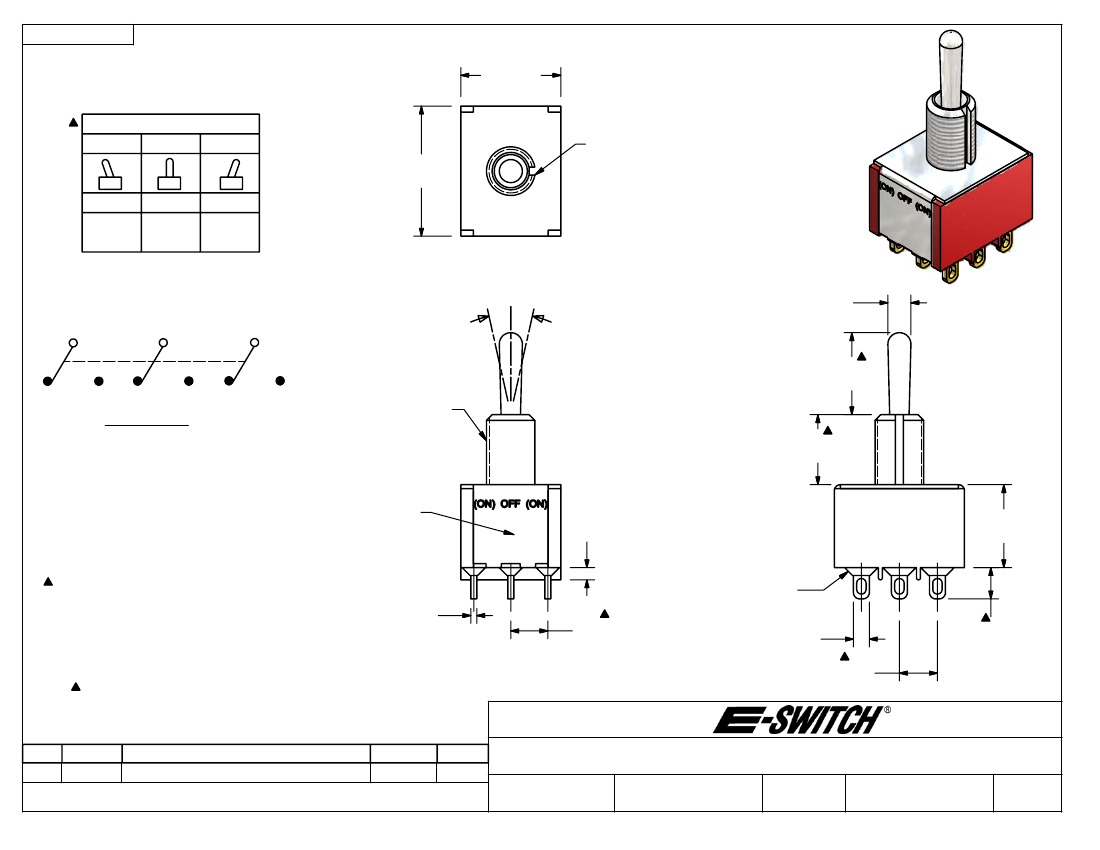

SHEET 1 OF 1
12.70
[.500 in]
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
16.51
[.650 in]
(ON)
2-3, 5-6,
8-9
OFF
NONE
(ON)
2-1, 5-4,
8-7
KEYWAY
POS. 1
2
5
8
POS. 2
POS. 3
2.92
Ø[.115 in]
25
~
10.41
[.410 in]
1
3
4
6
7
9
1/4-40 UNS - 2A
8.89
[.350 in]
CIRCUIT: 3PDT
E-SWITCH LOGO
NOTE:
ON OPPOSITE SIDE
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A @ 250VAC
5A @ 120VAC OR 28VDC
.76
[.030 in]
6. ELECTRIC LIFE: 40,000 make-and-break cycles
at full load.
7. INSULATION RESISTANCE: 1,000 Mega-ohm min.
8. DIELECTRIC STRENGTH: 1,000 V RMS @sea level.
9. OPERATING TEMP.: -30°C to 85°C
10.
DENOTES CRITICAL PARAMETER.
11. 2002/95/EC (ROHS) COMPLIANT
1.52
[.060 in]
10.54
[.415 in]
1
2
3
4.70
[.185 in]
EPOXY SEAL
3
6
9
3.96
[.156 in]
2.03
[.080 in]
4.83
[.190 in]
C
REV
16392
PCR NO
RREDRAWN IN INVENTOR FORMAT
DESCRIPTION
8/30/06
DATE
BO
BY
TITLE
SCALE
1003P4T1B1M1QE
2:1
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
8/30/2006
