T115012

Description
ALL DIMENSIONS IN MM [INCH]
File Size84KB,1 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Download Datasheet View All

T115012 Overview

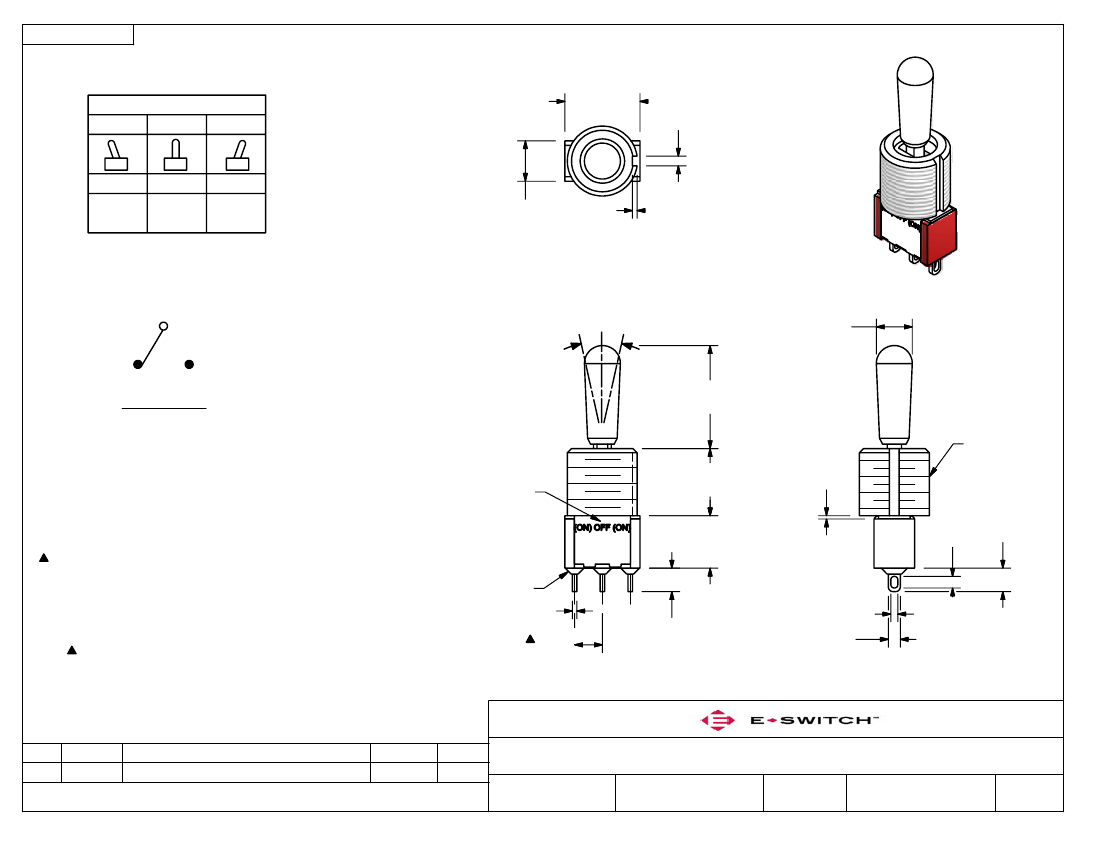

ALL DIMENSIONS IN MM [INCH]

SHEET 1 OF 1
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
12.70
[.500 in]
1.65
[.065 in]
ON
2-3
OFF
OPEN
(ON)
2-1
6.86
[.270 in]
.79
[.031 in]
(ON) = MOMENTARY
2
POS. 1
25
~
1
3
POS. 2
POS. 3
n
6.09
[.240 in]
CIRCUIT: SPDT
17.45
[.687 in]
15/32-32NS
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A @ 250 VAC
5A @ 120 VAC OR 28 VDC
6. ELECTRIC LIFE: 40,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.
8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.
9. OPERATING TEMP.: -30°C to 85°C
10.
DENOTES CRITICAL PARAMETER.
11. 2002/95/EC (ROHS) COMPLIANT
E-SWITCH
MARKING ON
OPPOSITE SIDE
11.38
[.448 in]
.56
[.022 in]
8.89
[.350 in]
EPOXY SEAL
.76
[.030 in]
1
2
3
3
3.96
1.98
[.156 in]
[.078 in]
4.70
[.185 in]
3.96
[.156 in]
1.19
[.047 in]
2.03
[.080 in]
B
REV
17529
PCR NO
REVISED AND REDRAWN
DESCRIPTION
8/2/07
DATE
BF
BY
TITLE
SCALE
100SP5T8B13M1QE
2:1
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
8/2/2007
BF
T115012
B
