RNS1/4CL3920F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RNS1/4CL3920F

RNS1/4CL3920F: DescriptionRESISTOR, METAL FILM, 0.125W, 1%, 50ppm, 392ohm, THROUGH HOLE MOUNT, AXIAL LEADED; CategoryPassive components The resistor; File Size147KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

RNS1/4CL3920F Overview

RESISTOR, METAL FILM, 0.125W, 1%, 50ppm, 392ohm, THROUGH HOLE MOUNT, AXIAL LEADED

RNS1/4CL3920F Parametric

Parameter Name	Attribute value
Objectid	1954304233
package instruction	AXIAL LEADED
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PRECISION
Manufacturer's serial number	RN
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package shape	TUBULAR PACKAGE
Rated power dissipation(P)	0.125 W
Rated temperature	125 °C
resistance	392 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FILM
Temperature Coefficient	50 ppm/°C
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	250 V

Preview

Download Datasheet

View All

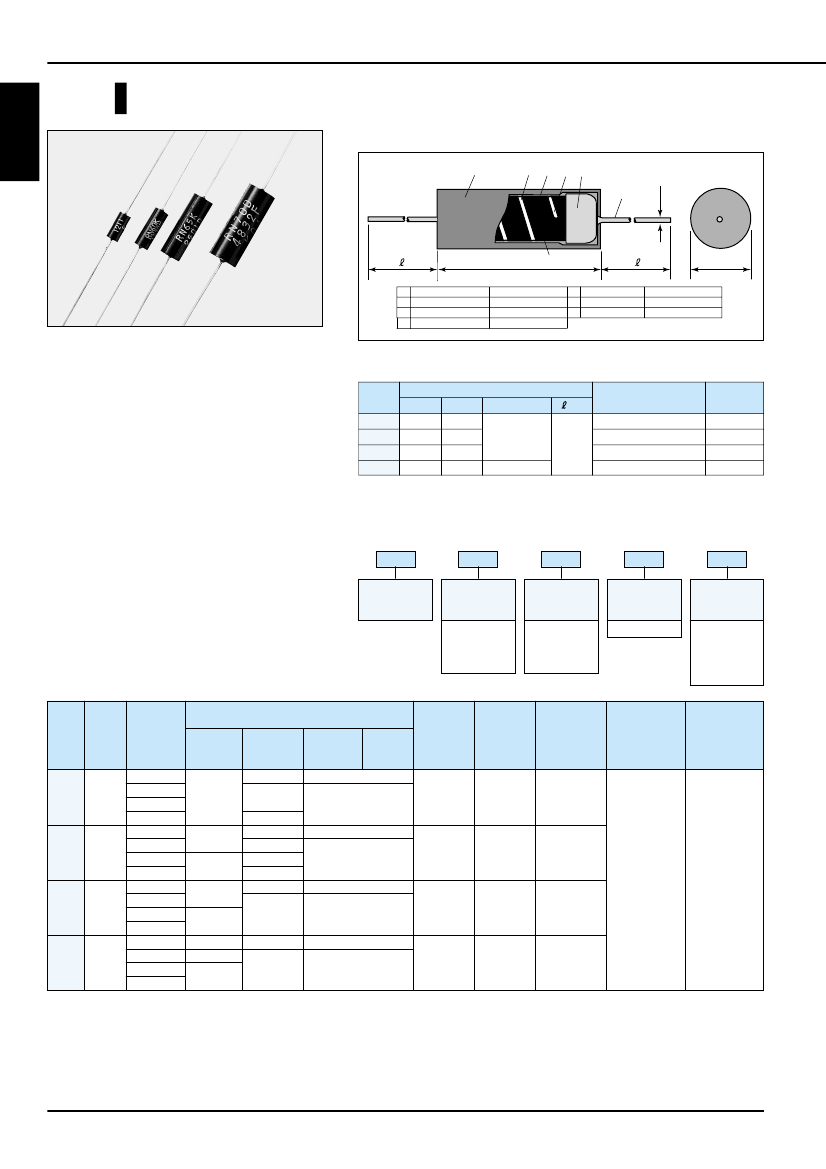

METAL FILM

（PRECISION）

抵抗器

Resistors

モールド絶縁½金属皮膜固定抵抗器

High Stability Fixed Metal Film Resistors

（

Mold-Type

）

■構造図 Construction

①

②

③

④ ⑤

① モールド樹脂

② トリミングライン

③ 内部絶縁塗装

④ セラミック

⑦

φd

⑥

Electrode cap

Lead wire

Resistive film

Molded resin

⑤ 電極キャップ

Trimming line

⑥ リード線

Inner insulation coating ⑦ 抵抗皮膜

Ceramic core

外装色：ブラウン Body color： Brown

表示：文字表示

（電子交換機用はカラーコード）

Marking：Alpha / Numeric Color code：For electronic

（

exchangers）

■外½寸法 Dimensions（mm）

½ 名

Type

RN55

RN60

RN65

RN70

寸法 Dimensions （mm）

L±0.5 D±0.4

6.6

10.0

16.0

19.0

3.1

3.7

5.7

7.6

0.8

0.6

d（Nominal）

±3

電子交換機用

−

RN05□2B

RN05□2E

RN05□2H

□：T.C.R.

Weight

400

600

1100

2400

For Electric Exchanger （g/1000pcs）

■特長 Features

½T.C.R.±10×10

−6

/Kに対応します。

抵抗値許容差±0.05%の高精密品です。

●

抵抗値の長期安定性に優れます。

●

定格周囲温度が125℃と高い。

●

日本防衛庁MIL-R-10509G認定品。

●

High precision resistors with low T.C.R.±10×10

−6

and resistance tolerance ±0.05%.

●

Excellent long term stability in resistance value.

●

Higher rated ambient temperature at 125℃.

●

Approved by Japan Self Defense Force（MIL-R-10509G）

●

■品名構成 Type Designation

例 Example

品種

Product

Code

定格電力

Power Rating

55：0.1W

60：0.125W

65：0.25W

70：0.5W

抵抗温度係数

T.C.R

（×10

−6

/K）

T ： ±10

E： ±25

C： ±50

K： ±100

1002

公称抵抗値

Nominal

Resistance

4 digits

抵抗値許容差

Resistance

Tolerance

A ：±0.05％

B ：±0.1％

C ：±0.25％

D ：±0.5％

F ：±1％

■認定規格 Approval Awarded

日本防衛庁 MIL-R-10509G

Approved by Japan Self Defence Force on MIL-R-10509G.

■定格 Ratings

定格電力抵抗温度係数

½ 名

Power

T.C.R.

A:±0.05％ B:±0.1％

Type

Rating （×10

−6

/K）

E24・E192 E24・E192

T:± 10

100∼100k

E:± 25

RN55

0.1W

−

49.9∼100k

C:± 50

K:± 100

−

T:± 10

100∼200k

E:± 25

100∼750k

RN60

0.125W

C:± 50

24.9∼750k

−

K:± 100

−

T:± 10

100∼499k

100∼301k

E:± 25

RN65

0.25W

C:± 50

24.9∼１M

−

K:± 100

T:± 10

100∼499k 100∼499k

E:± 25

100∼1M

RN70

0.5W

C:± 50

24.9∼１M

−

K:± 100

抵抗値範囲

Resistance Range（Ω）

最高½用電圧最高過負荷電圧

耐電圧

Max.

Dielectric

D:±0.5％

C:±0.25％

Working

Overload

Withstanding

F:±1.0％

Voltage

E24・E192 E24・E96

100∼100k

24.9∼100k

100∼200k

24.9∼820k

100∼499k

24.9∼1.65M

100∼499k

24.9∼2M

350V

700V

900V

300V

600V

900V

250V

500V

750V

＋125℃

−65℃∼

＋175℃

200V

400V

450V

定格周囲温度

½用温度範囲

Rated Ambient Operating Temp.

Temperature

Range

定格電圧は

√

定格電力×公称抵抗値による算出値、又は表中の最高½用電圧のいずれか小さい値が定格電圧となります。

￣￣￣￣￣￣￣￣￣

Rated voltage＝

√

Power Rating×Resistance value

￣￣￣￣￣￣￣￣￣￣￣￣

or Max. working voltage, whichever is lower.

本カタログに掲載の仕様は予告なく変更する場合があります。御注文及び御½用前に、納入仕様書などで内容を御確認下さい。

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

www.koanet.co.jp
