EEUFM0J331: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3 V, 330 uF, THROUGH HOLE MOUNT; CategoryPassive components capacitor; File Size110KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

EEUFM0J331 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3 V, 330 uF, THROUGH HOLE MOUNT

EEUFM0J331 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	14 weeks
capacitance	330 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.02079 mA
length	11.2 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	318.5 mA
surface mount	NO
Delta tangent	0.22
Terminal surface	Tin (Sn)
Terminal pitch	2.5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

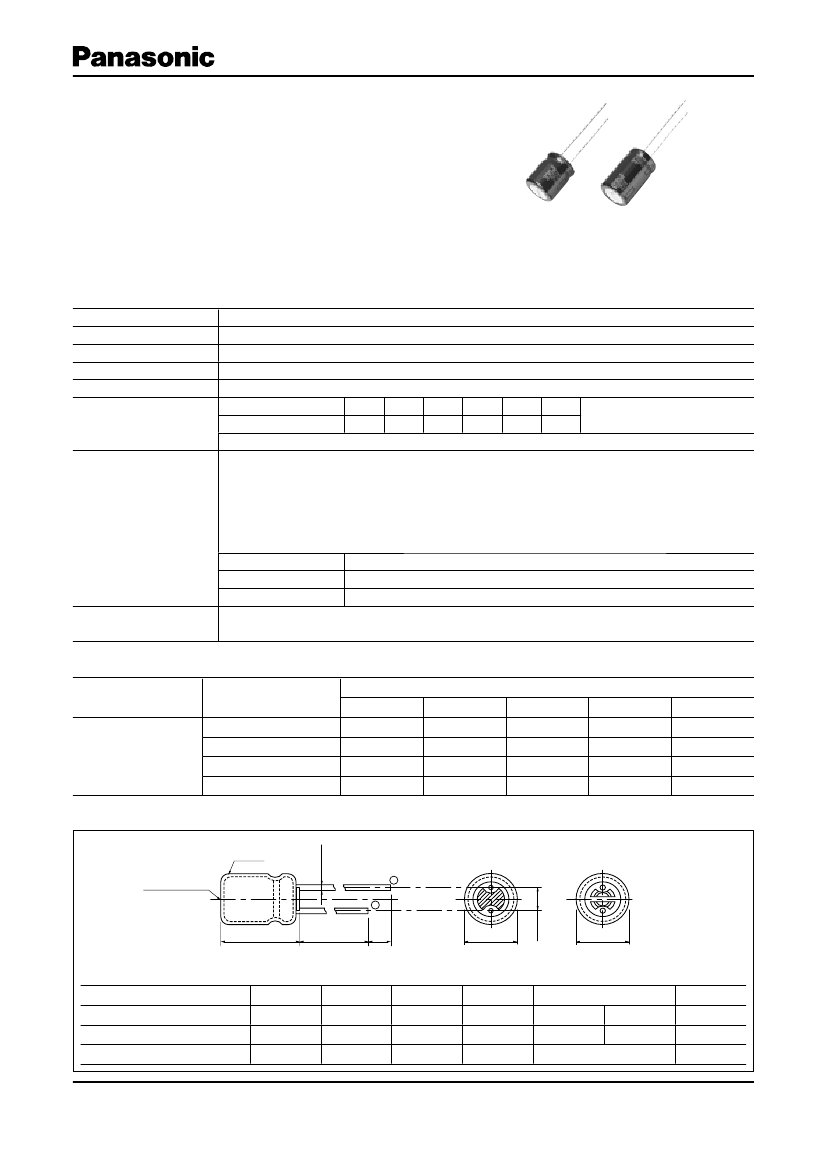

Aluminum Electrolytic Capacitors/ FM

Radial Lead Type

Series:

Type:

■

Features

●

Low impedance (40 % to 70 % less than FC Series)

●

Endurance : 2000 h to 7000 h at +105 °C

●

RoHS directive compliant

■

Attention

Not applicable for automotive

■

Specifications

Category Temp. Range

Rated W.V. Range

Nominal Cap. Range

Capacitance Tolerance

DC Leakage Current

tan

–40 °C to +105 °C

6.3 V.DC to 50 V.DC

22 μF to 6800 μF

±20 % (120 Hz/+20 °C)

0.01 CV (μA) After 2 minutes

W.V.

6.3

(max.) (120 Hz/+20 °C)

tan

0.22 0.19 0.16 0.14 0.12 0.10

Add 0.02 per 1000 μF for products of 1000 μF or more.

After following life test with DC voltage and +105 °C±2 °C ripple current value applied. (The sum

of DC and ripple peak voltage shall not exceed the rated working voltage) when the capacitors

are restored to 20 °C, the capacitors shall meet the limits speciﬁed below.

Duration

06.3

: 2000 hours,

08×11.5

08×15:

3000 hours

08×20

010×16

: 4000 hours,

010×20

012.5×20/ 016×20:

5000 hours

012.5×25

012.5×35/ 016×25

: 7000 hours

Capacitance change ±25 % of initial measured value (6.3 V to 10 V : ±30 %)

tan

200 % of initial speciﬁed value

DC leakage current

initial speciﬁed value

After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits speciﬁed in Endurance. (With voltage treatment)

Endurance

Shelf Life

■

Frequency correction factor for ripple current

W.V.(V.DC)

6.3 to 50

390

1200

Cap (μF)

330

1000

6800

Frequency (Hz)

0.45

0.60

0.65

0.75

120

0.55

0.70

0.75

0.80

0.75

0.85

0.90

0.95

10 k

0.90

0.95

0.98

1.00

100 k

1.00

(Unit : mm)

fd±0.05

■

Dimensions in mm (not to scale)

Sleeve

Pressure relief

06.3

010

–

F±0.5

L 16 : L±1.5

L 20 : L±2.0

14 min.

3 min.

0D±0.5

Body Dia.

Body Length L

Lead Dia.

Lead space F

—

0.5

2.0

6.3

—

0.5

2.5

—

0.6

3.5

—

0.6

5.0

0.6

12.5

12.5 to 25

5.0

30 to 40

0.8

—

0.8

7.5

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 May. 2014

– EEE-78 –
