MURF1020 ULTRAFAST PLASTIC RECTIFIER
Applications:
•
•
•
Switching Power Supply
Power Switching Circuits
General Purpose
Features:
•
•
•
•
•
•
•
•
Ultra-Fast Switching
High Current Capability
Low Reverse Leakage Current
High Surge Current Capability
Plastic Material has UL Flammability Classification 94V-O
This is a Pb
−
Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

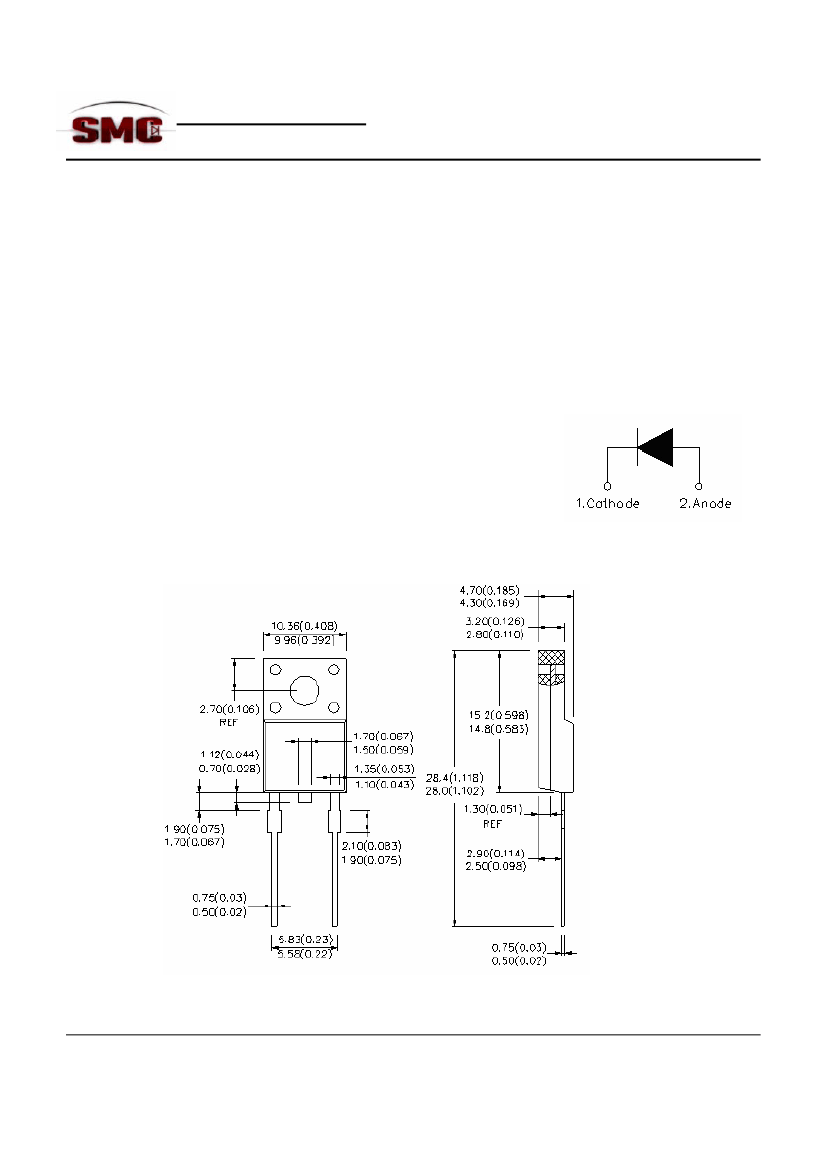

Mechanical Dimensions: In Inches / mm
ITO-220AC
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0418, Rev. -
MURF1020
Green Products
Marking Diagram:
Where XXXXX is YYWWL
MUR
F
10
20
SSG
YY
WW
L
= Device Type
= Package type
= Forward Current (10A)
= Reverse Voltage (200V)
= SSG
= Year
= Week
= Lot Number
Cautions：
Molding resin
Epoxy resin UL:94V-0
Ordering Information:
Device
MURF1020
Package
ITO-220AC
(Pb-Free)
Shipping
50pcs / tube
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification.
Maximum Ratings:
Characteristics
Peak Inverse Voltage
Max. Average Forward
Max. Peak One Cycle Non-
Repetitive Surge Current
(Per leg)
Symbol
V
RWM
Io
(AV)
Condition
-
50% duty cycle @Tc=100°C,
rectangular wave form
50Hz, Half Sine wave
Max.
200
10
Units
V
A
I
FSM
100
A
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0418, Rev. -
MURF1020
Green Products
Electrical Characteristics:
Characteristics
Max. Forward Voltage Drop
(Per leg)*
Max. Reverse Current
(Per leg)*
Max. Reverse Recovery Time
(Per leg)*
RSM Isolation Voltage
(t=1.0 second,R.H.<
=30%,
T
A
=25°C)
Symbol
V
F
V
F
I
R1
I
R2
t
rr
V
1so
Condition
@ I
F
=10A, Pulse, T
J
= 25℃
@ I
F
=10A, Pulse, T
J
= 125℃
@V
R
= rated V
R
T
J
= 25℃
@V
R
= rated V
R
T
J
= 125℃
I
F
=500mA, I
R
=1A,and I
rm
=250mA
Clip mouting, the epoxy body
away from the heatsink edge by
more than 0.110”along the lead
direction.
Clip mouting, the epoxy body is
inside the heatsink
Screw mounting, the epoxy body
is inside the heatsink
Max.
1.2
1.0
10
1.0
35
4500
Units
V
V
μA
mA
ns
V
3500
1500
* Pulse width < 300 µs, duty cycle < 2%
Thermal-Mechanical Specifications:
Characteristics
Max. Junction Temperature
Max. Storage Temperature
Maximum Thermal
Resistance Junction to Case
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
θJC
wt
Condition
-
-
DC operation
-
ITO-220AC
Specification
-55 to +175
-55 to +175
2
1.6
Units
℃
℃
℃
/W
g
•
