MURF1620CT
Green Products
MURF1620CT ULTRAFAST PLASTIC RECTIFIER
Applications:
•
•
•
Switching Power Supply
Power Switching Circuits
General Purpose
Features:
•
•
•
•
•
•
•
•
Ultra-Fast Switching
High Current Capability
Low Reverse Leakage Current
High Surge Current Capability
Plastic Material has UL Flammability Classification 94V-O
This is a Pb
−
Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

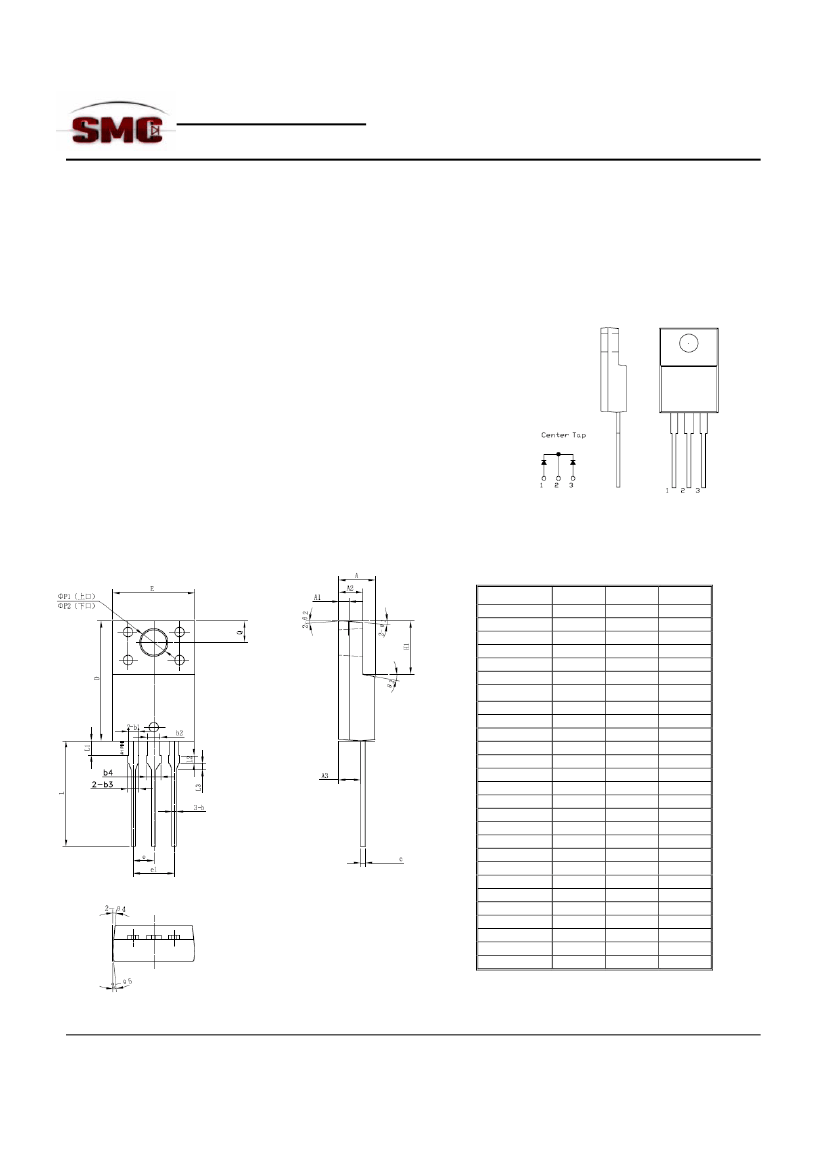

OUTLINE DRAWING
Mechanical Dimensions: In mm
SYMBOL
A
A1
A2
A3
b
b1
b2
b3
b4
c
D
E
e
e1
H1
L
L1
L2
L3
ΦP1(上口)
ΦP2(下口)
Q
Θ1
Θ2
Θ3
Θ4
Θ5
MIN.
4.30
1.10
2.80
2.50
0.50
1.10
1.50
1.20
1.60
0.55
14.80
9.96
6.50
12.70
1.60
0.80
0.60
3.30
2.99
2.50
TYP.
4.50
1.30
3.00
2.70
0.60
1.20
1.60
1.30
1.70
0.60
15.00
10.16
2.55
5.10
6.70
13.20
1.80
1.00
0.80
3.50
3.19
2.70
5°
4°
10°
5°
5°
MAX.
4.70
1.50
3.20
2.90
0.75
1.35
1.75
1.45
1.85
0.75
15.20
10.36
6.90
13.70
2.00
1.20
1.00
3.70
3.39
2.90
ITO-220AB
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0352, Rev. -
MURF1620CT
Green Products
Marking Diagram:
Where XXXXX is YYWWL
MUR
F
16
20
CT
SSG
YY
WW
L
= Device Type
= Package type
= Forward Current (16A)
= Reverse Voltage (200V)
= Configuration
= SSG
= Year
= Week
= Lot Number
Cautions：
Molding resin
Epoxy resin UL:94V-0
Ordering Information:
Device
MURF1620CT
Package
ITO-220AB
(Pb-Free)
Shipping
50pcs / tube
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification.
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0352, Rev. -
MURF1620CT
Green Products

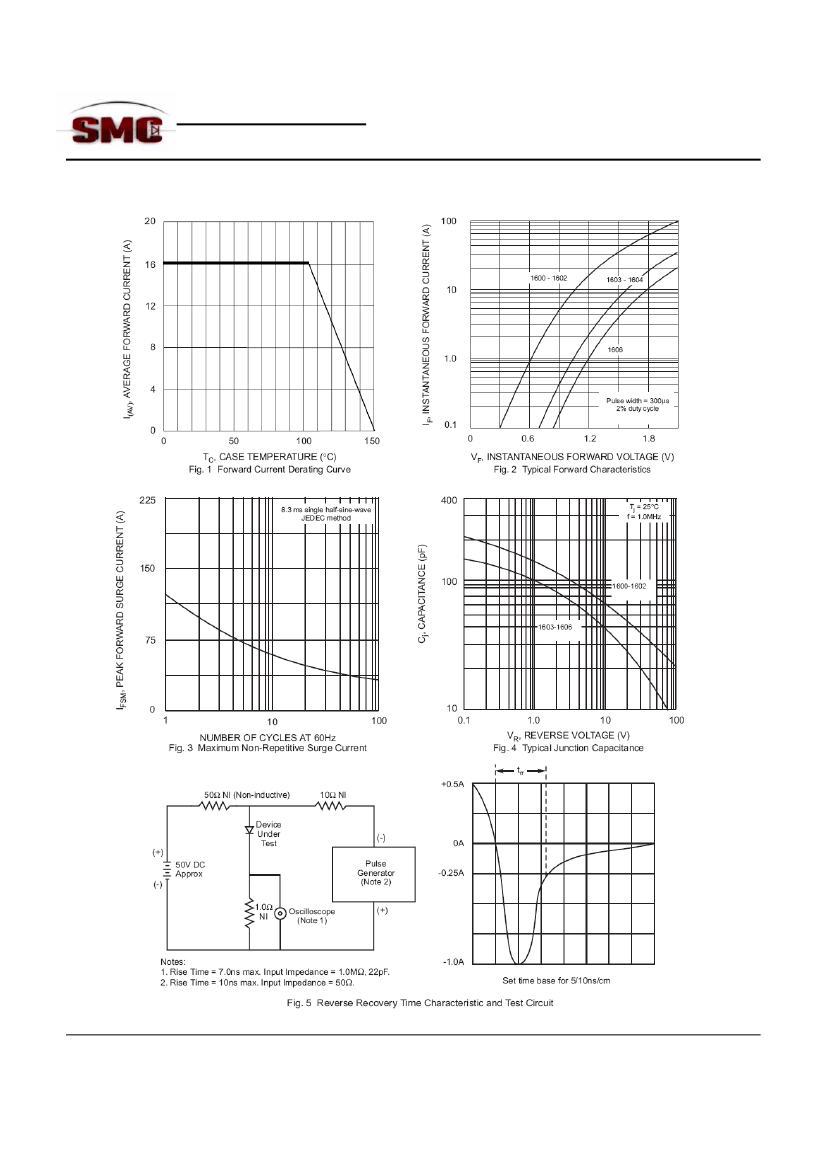

Maximum Ratings and Electrical Characteristics
@T
A
=25°C unless otherwise specified
Single Phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current @T
A
= 55°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
rated load (JEDEC Method)
Forward Voltage (per element)
@I
F
= 8.0A, T
J
=25°C
Peak Reverse Current
@T
A
= 25°C
At Rated DC Blocking Voltage
@T
A
= 125°C
Maximum Reverse Recovery Time (Note 1)
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range
Approximate Weight
Case Style
Symbol
V
RRM
V
RWM
V
R
Io
I
FSM
V
FM1
I
R
Trr
C
J
T
J
, T
STG
wt
MURF1620CT
200
16.0
125
1.5
10
500
35
80
-55 to +150
2.0
ITO-220AB
Unit
V
A
A
V
µA
ns
pF
°C
g
Note: 1.Measured with I
F
=0.5A; I
R
=1.0A; I
RR
=0.25A.
2.Measured at 1.0MHz and applied reverse voltage of 4.0V D.C.
•
