Spec Sheet
CERAMIC CAPACITORS
Standard Multilayer Ceramic Capacitors (Temperature compensating type)
UMK063CG3R5CT-F
Features
Item Summary
50V, C0G, 3.5pF, -0.25pF to 0.25pF, 0201
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 15000pcs
Products characteristics table
CaseSize (EIA/JIS)
Rated Voltage (max)
Capacitance
Capacitance Tolerance
Resistance
Q (min)
Temperature Characteristics (EIA/JIS)
Temperature Range (EIA/JIS)
RoHS Compliance
Halogen Free
Soldering Method
0201/0603
50V
3.5pF
-0.25pF to 0.25pF
10,000 MΩ min.
470
C0G/CG
-55 to +125℃/-55 to +125℃
Yes
Yes
Reflow
External Dimensions
L
W
T
e
0.6mm ±0.03
0.3mm ±0.03
0.3mm ±0.03
0.15mm ±0.05
2014.12.18
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

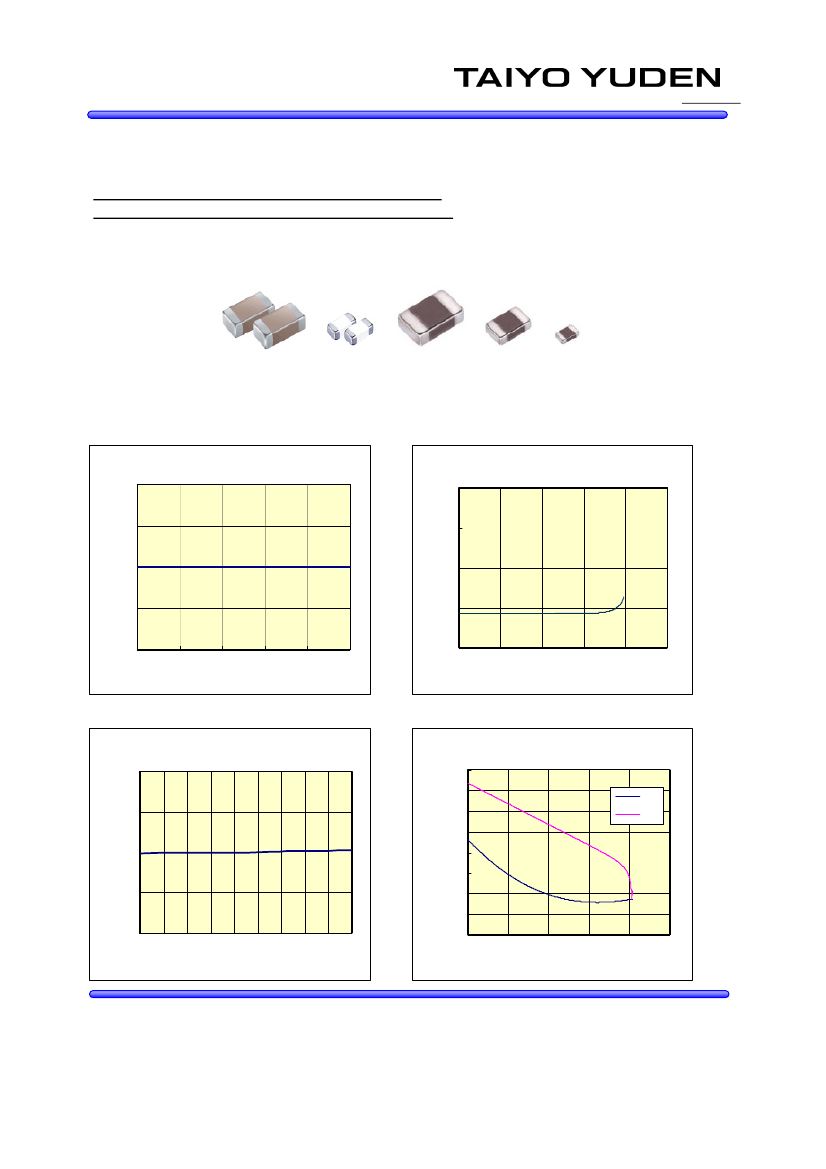

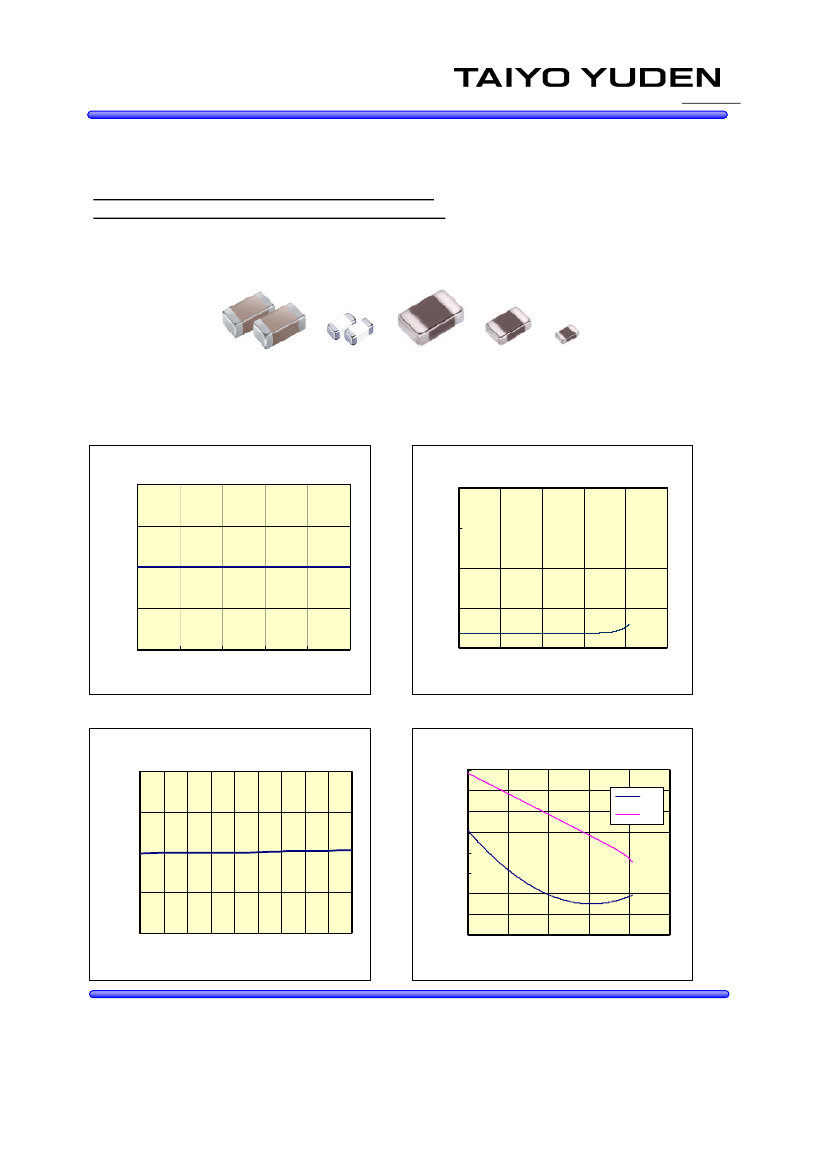

Multi Layer Ceramic Capacitor
○UMK063CG3R5CT
50V 0603 CG/C0G 3.5pF +/- 0.25pF t=0.33mmMAX
50V 0201 CG/C0G 3.5pF +/- 0.25pF t=0.013inchMAX
-Electrical Characteristics Data-
13CDD05
RoHS compliance product
10
UMK063CG3R5CT
DC Bias Char.
1000
100
UMK063CG3R5CT
Capacitance Freq.
5
Capacitance[pF]
dC/C[%]
0
10
1
0.1
-5
-10
0
10
20
30
40
DC Bias Voltage[V]
50
1
10
100
1000
10000
Frequency[MHz]
100000
UMK063CG3R5CT
Capacitance Temp.
10
1000000
100000
UMK063CG3R5CT
Impedance,ESR Freq.
ESR
Z
5
dC/C[%]
10000
Z,ESR[OHM]
-55 -35 -15
5 25 45 65 85 105 125
Temperature[degreeC]
1000
100
10
1
0.1
0
-5
-10
0.01
1
10
100
1000 10000 100000
Frequency[MHz]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification
