NAC

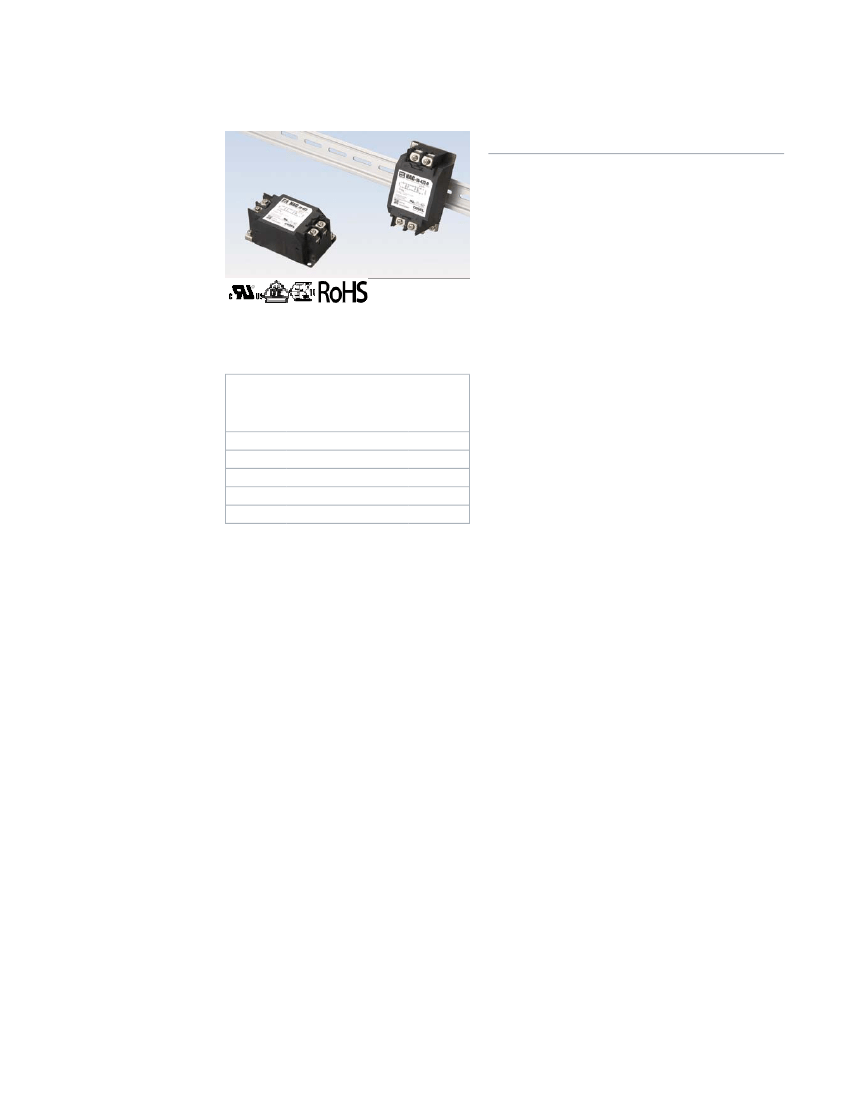

Features
High attenuation of common mode noise from 150kHz to 1MHz
Single Phase 250 VAC
Selectable leakage current
Quick and easy push-down terminal. Just connect the wires, push
down and tighten the screws with a screwdriver.
DIN rail installation (option)
RoHS Compliant
Safety Agency Approvals
UL1283
CSA C22.2 No.8 (C-UL)
DIN EN133200 VDE0565 Teil 3-1
ENEC
Model
NAC-06-472
NAC-10-472
NAC-16-472
NAC-20-472
NAC-30-472
NAC-04-472
Rated
Voltage
[V]
AC 1- 250 / DC250
AC 1- 250 / DC250
AC 1- 250 / DC250
AC 1- 250 / DC250
AC 1- 250 / DC250
AC 1- 250 / DC250
Rated
Current
[A]
6
10
16
20
30
4
High-attenuation type of common mode noise from 150kHz to 1MHz
Ordering information
NAC series
NAC -10 -472
1
2
3
4
-O
1Model
Name
2Rated
Current
3Line
to ground capacitor code:See table 1.1.
table1.1 Line to ground capacitor code
Code
681
102
222
332
472
*
1
Line to ground
Leakage Current
capacitor
(Input 125/250V 60Hz)
(nominal value)
680pF
75.5 A/ 150 A max
0.13mA/ 0.25mA max
1000pF
0.25mA/ 0.5 mA max
2200pF
0.38mA/ 0.75mA max
3300pF
0.5 mA/ 1.0 mA max
4700pF
When the line to ground capacitor code is
different, the attenuation characteristic is
different.
4Options
D :DIN rail installation type
The terminal cover is retracted inside the unit
DIN rail installation type is option
*
The dimensions change when the option is set.
Refer to External view.
Features of NAC series
High-attenuation type of common mode noise from 150kHz to 1MHz
-
Single Phase 250 VAC
-
Quick and easy push-down terminal
Just connect the wires, push down and tighten
the screws with a screwdriver

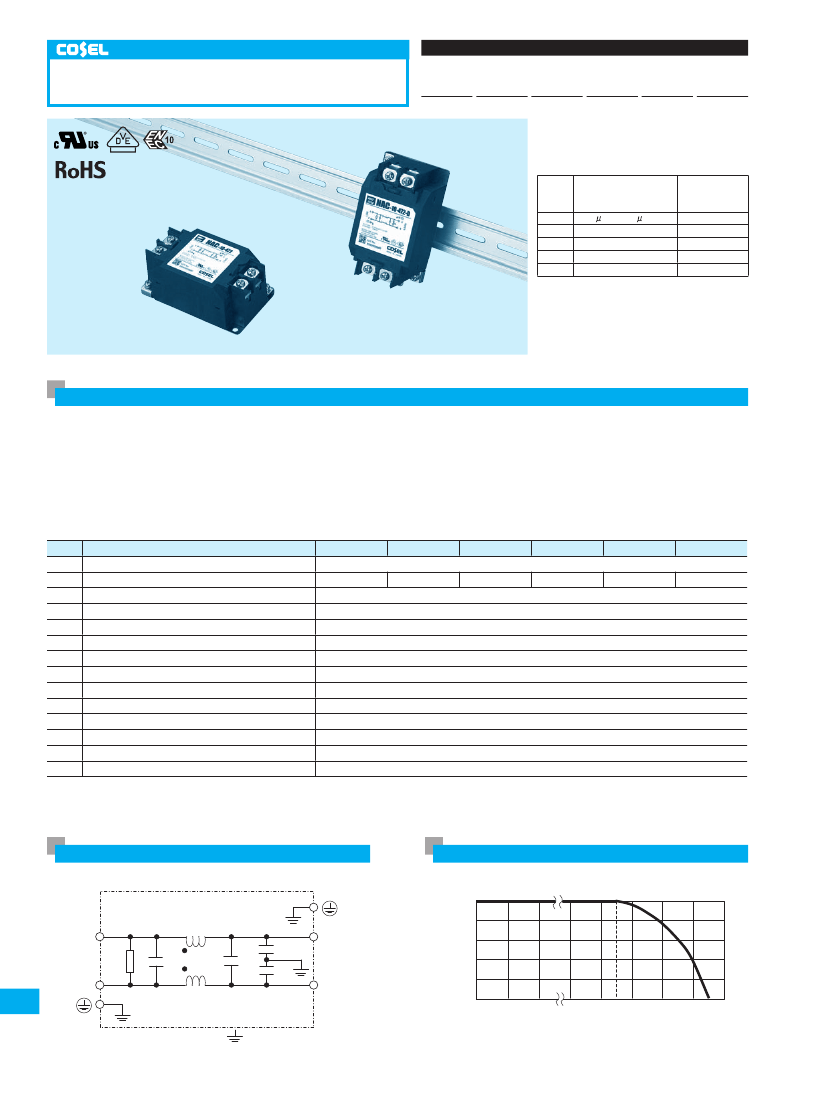

Specifications
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Items
Rated Voltage[V]
Rated Current[A]
Test Voltage (Terminal-Mounting Plate)
Isolation Resistance (Terminal-Mounting Plate)
Leakage current 125/250V 60Hz
Voltage drop
Safety agency approval temperatures
Operating temperature
Operating humidity
Storage temperature/humidity
Vibration
Impact
Safety agency approvals
Case size (without projection) /Mass
NAC-04-472
4
NAC-06-472
6
NAC-10-472
10
NAC-16-472
16
NAC-20-472
20
NAC-30-472
30
AC 1f 250 / DC250
2,500 VAC (Cutoff Current = 20mA), 1minute at room temperature and humidity
500 VDC 100MW minute at room temperature and humidity
0.5mA/1.0mA max
1.0V max
-25 to +85C (Refer to Derating Curve)
-40 to +85C (Refer to Derating Curve)
20 to 95%RH (Non condensing)
-40 to +85C/20 to 95%RH (Non condensing)
10 to 55Hz, 19.6m/s
2
(2G), 3min. Period, 1hour each X, Y and Z axis
196.1m/s
2
(20G), 11ms Once each X, Y and Z axis
UL1283, CSA C22.2 No.8 (C-UL), DIN EN133200 VDE0565 Teil3-1, ENEC (At only AC input)
53X41X92 mm (WXHXD) /300g max (Option : -D refer to external view)
Circuit Diagram
Case
Derating Curve
100
Load Factor [%]
80
60
40
20
0
-40
CY : Line to ground capacitor
: Mounting Plate
-30
-20
40
50 55 60
70
80
90
1
LINE
3
CY
CY
LOAD
4
Noise
Filter
2
Ambient Temperature [C]
I-2
NAC,NAM,NAP,NAH series

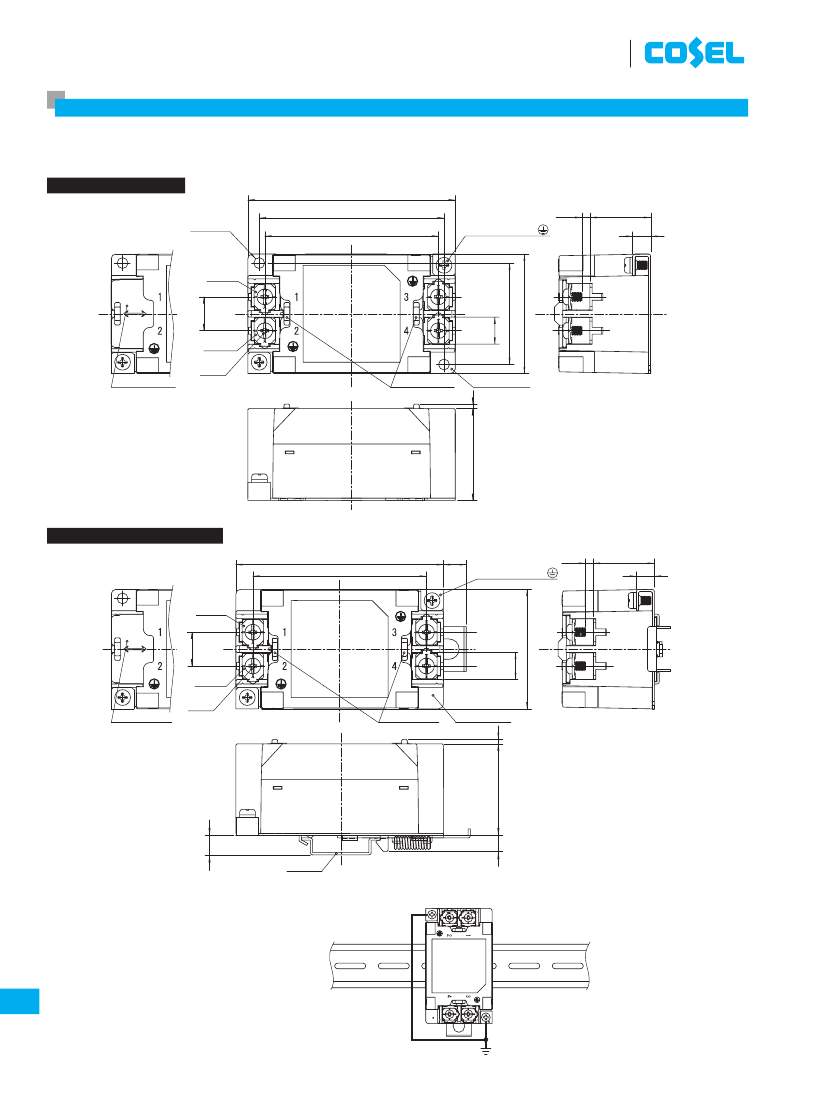

External view
This product is shipped in the following condition, because it is equipped with push-down terminals.
1The
terminal cover is retracted inside the unit.
2The
screws for connecting the terminals are held in the up right position.
Standard Type
92
82
±
0.5
2-f4.8
Mounting Hole
77
2-Protection Earth
(2.5)
27
8
Input
Terminal
Output
Terminal
Output
Terminal
12
45
±
0.5
15
Name Plate
Input
Terminal
6-M4
Terminal cover
¶
Closed the terminal cover
Terminal cover
Mounting Plate
(2)
¶
Tolerance :
±1
¶
Mass : 300g or less
41
¶
Mounting Plate : Iron (surface finishing:nickel plating) t=1.0
¶
Case : PBT
¶
Dimensions in mm
¶
Terminal block screw tighting torque M4:1.6N-m (16.9kgf-cm) max
DIN rail installation Type
92
77
(11)
2-Protection Earth
(2.5)
27
8
Input
Terminal
Output
Terminal
Output
Terminal
12
¶
Tolerance :
±1
41
¶
Mass : 300g or less
¶
Mounting Plate : Iron (surface finishing:nickel plating) t=1.0
¶
Case : PBT
¶
Dimensions in mm
(9)
¶
Terminal block screw tighting torque M4:1.6N-m (16.9kgf-cm) max
DIN rail
7
15
Input
Terminal
6-M4
Terminal cover
¶
Closed the terminal cover
Terminal cover
Mounting Plate
(2)
¡
Note when installing the noise
filter on a DIN rail.
When the noise filter is grounded through the
DIN rail, the proper noise attenuation may not be
achieved.
Be sure to connect the protection earth (PE) of
the noise filter body to the earth.
Name Plate
DIN rail
Noise
Filter
I-6
53
Name Plate
53
