ST142999: DescriptionALL DIMENSIONS IN MM [INCH]; File Size117KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

ST142999 Overview

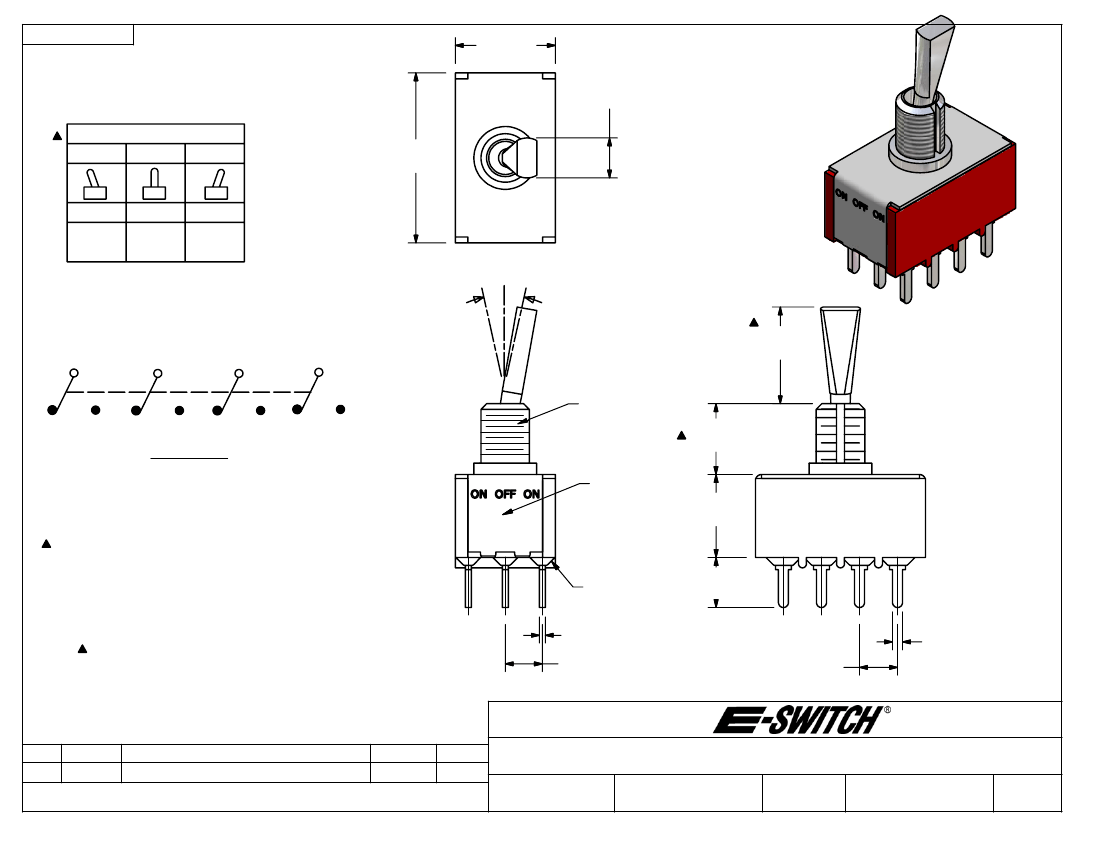

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

SHEET 1 OF 1

12.70

[.500 in]

5.08

[.200 in]

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

21.59

[.850 in]

2-3, 5-6,

8-9, 11-12

NONE

N/A

2-1, 5-4,

8-7, 11-10

POSITION 1

12.30

[.484 in]

POSITION 3

ISOMETRIC

1/4-40NS THD.

8.99

[.354 in]

E-SWITCH

MARKING ON

OPPOSITE SIDE

CIRCUI: 4PDT

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: SILVER

5. RATING: 5AMPS W/RESISTIVE LOAD @ 120VAC OR 28VDC

2AMPS W/RESISTIVE LOAD @ 250VAC

6. ELECTRIC LIFE: 40,000 make-and-break cycles

at full load.

7. INSULATION RESISTANCE: 1,000 Mega-ohm min.

8. DIELECTRIC STRENGTH: 1,000 V RMS @sea level.

9. OPERATING TEMP.: -30°C to 85°C

10.

DENOTES CRITICAL PARAMETER.

11. 2002/95/EC (ROHS) COMPLIANT

12. HARDWARE TO BE SHIPPED BULK:

T100011 - LOCK WASHER, QTY 1

T100015 - LOCK RING, QTY 1

T100000 - HEX NUT, QTY 2

REV

16060

PCR NO

NEW PART RELEASE

DESCRIPTION

6/7/06

DATE

10.54

[.415 in]

EPOXY

6.35

[.250 in]

.76

[.030 in]

4.70

[.185 in]

4.83

[.190 in]

1.27

[.050 in] TYP.

TITLE

SCALE

1004P1T6B11M2QEH

2:1

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

6/7/2006

ST142999
